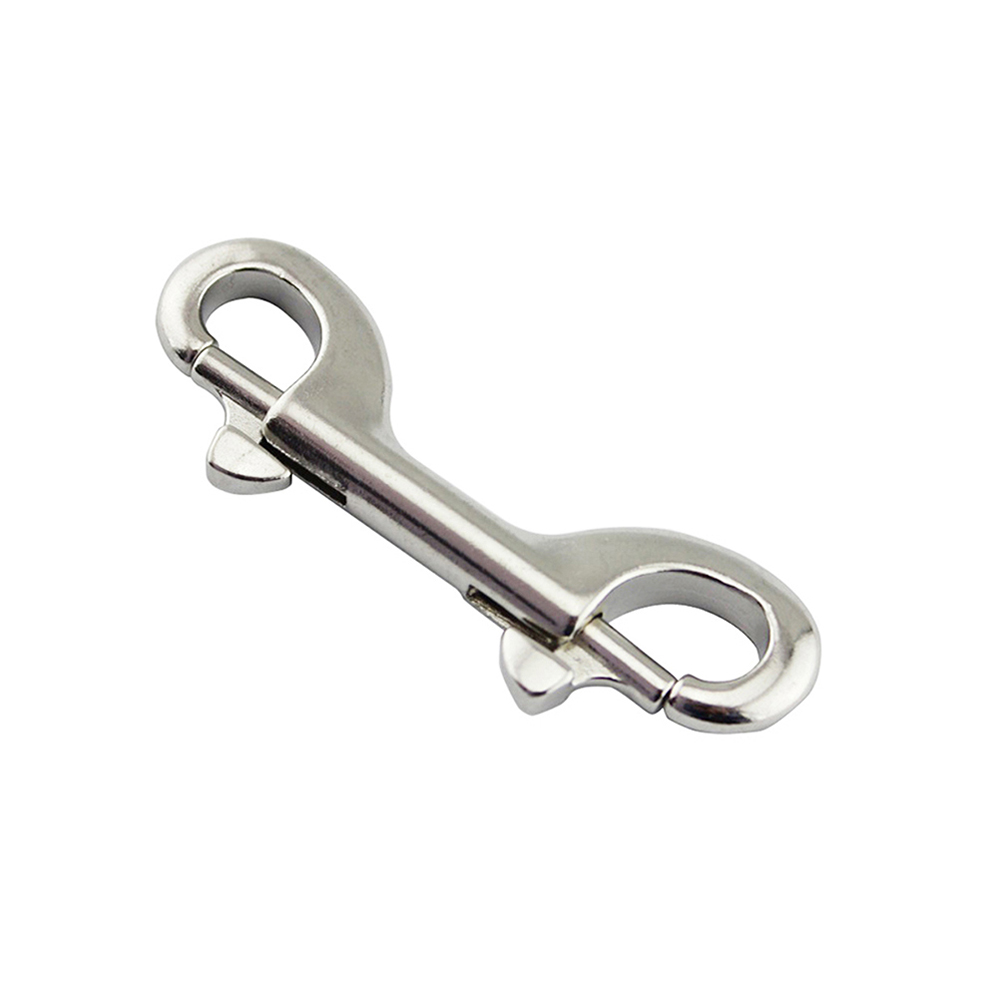

Spring Hook Dual Head
The Spring Hook Dual Head belongs to the Spring Hooks Shackles Cable Clamps. (Show the product Bolt Snap Hook Square Base.) The two ends of this part are round hooks of the same shape. They are both closed with spring bolts, which are very convenient and safe to use. (Show the product Wire Clip Cable Clamp Double.) This part is often used in sports, pets, homes, mountaineering, rock climbing, diving, and other products. (Show the product D Shackle Stainless Steel.) The parts are usually made of stainless steel. It can also be made of Zinc alloy with plating. The Zinc alloy parts are usually used in low-strength and low-requirement circumstances to save costs. The strength and rust-proof performance of the Zinc alloy parts are not as good as the stainless steel parts. (Show the product Bow Shackle Heavy Duty.) Our company has different sizes of products to choose from. The shortest product length is 65 mm/ 2.5591", and the longest product length is 115 mm/ 4.5276". If customers have other size and shape requirements about the part, we can special make it.
We produce ODM and OEM products. All materials are Rohs and REACH compliance. Please don't hesitate to contact us for details, drawings, and quotes.

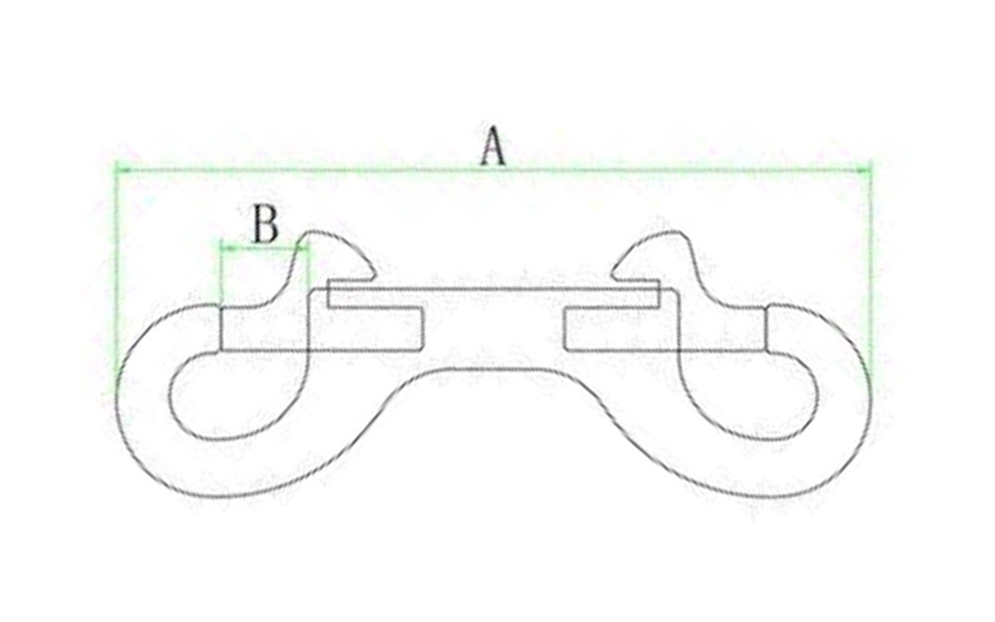

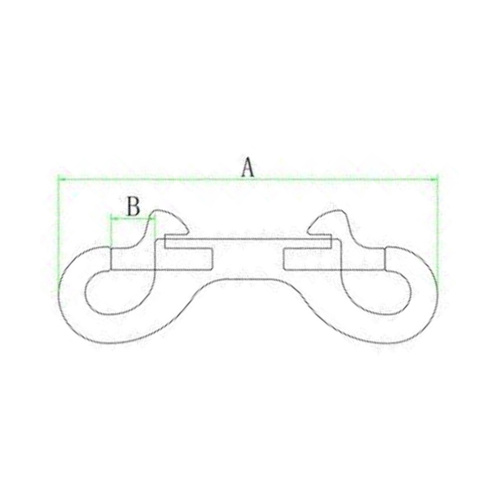

Drawing
Size Table
A ( mm / inch ) | B ( mm / inch ) | WLL ( Work Load Limit ) | NW ( Net Weight ) |
65 / 2.5591" | 7.5 / 0.2953" | 30 kgs / 65 lbs | 0.03 kg / 0.066 lb |
76 / 2.9921" | 8.5 / 0.3346" | 40 kgs / 90 lbs | 0.04 kg / 0.088 lb |
90 / 3.5433" | 10 / 0.3937" | 50 kgs / 110 lbs | 0.06 kg / 0.132 lb |
100 / 3.9370" | 10 / 0.3937" | 90 kgs / 200 lbs | 0.07 kg / 0.154 lb |
115 / 4.5276" | 12 / 0.4724" | 110 kgs / 240 lbs | 0.098 kg / 0.2156 lb |
