Product Description

Shackle for Sale

The Shackle for Sale belongs to connecting parts. It is also called chain shackle, long D shackle, bow shackle, twist shackle, wide D shackle, anchor shackle.
(Click here to show the product Bolt Snap Hook Half Round Base.)

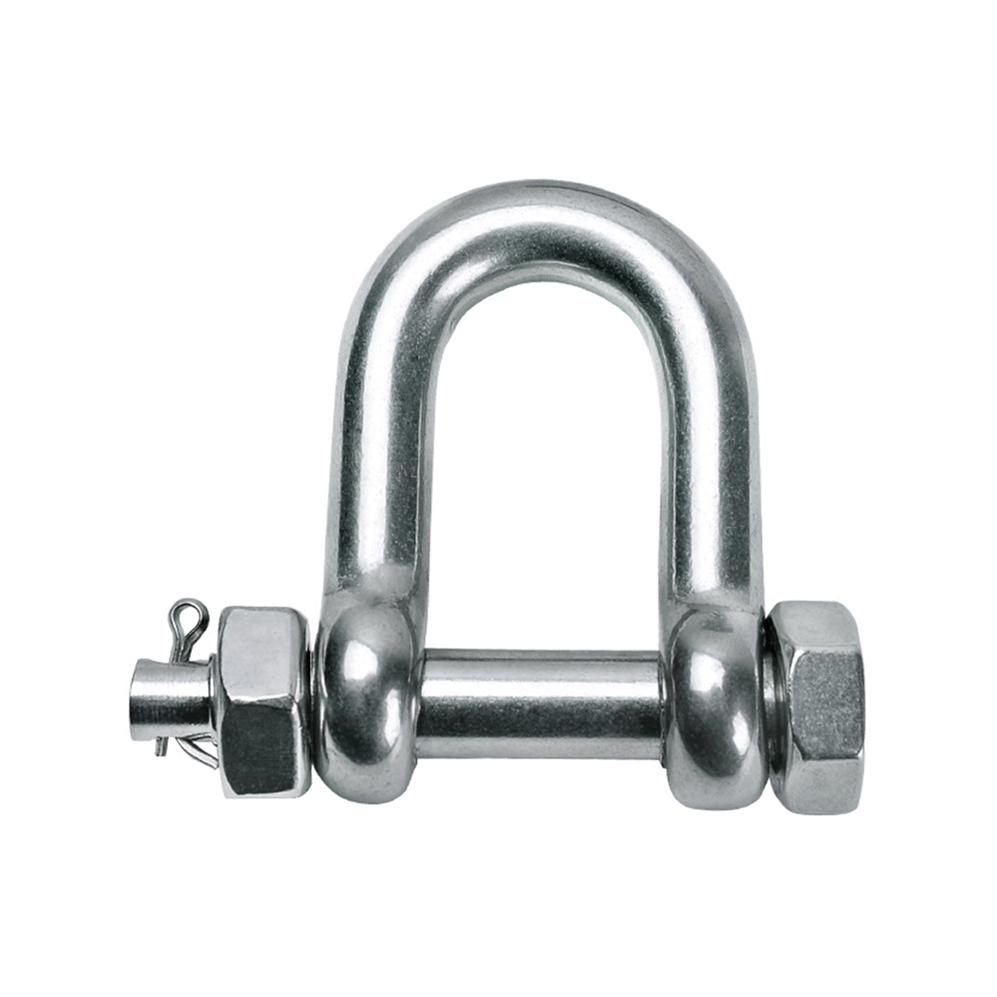

This shackle is with a D shape body, a safety screw bolt, and a nut. The material is stainless AISI 304, AISI 316, or carton steel with plating.
(Click here to show the product Quick Link.)
This kind of shackle is widely used for shade sails, rock climbing, cable railing, sailboats, yachts, industrial, etc. It can be seen in many places.
(Click here to show the product Diving Hook Double Ended.)
We provide whole range size parts. The part is reliable, durable, strong, rustproof, tough, secure, reliable, durable.
(Click here to show the product Spring Snap Hook.)

We produce ODM and OEM products. All materials are Rohs and REACH compliance. Please don't hesitate to contact us for details, drawings, and quotes.

shackle leaf spring

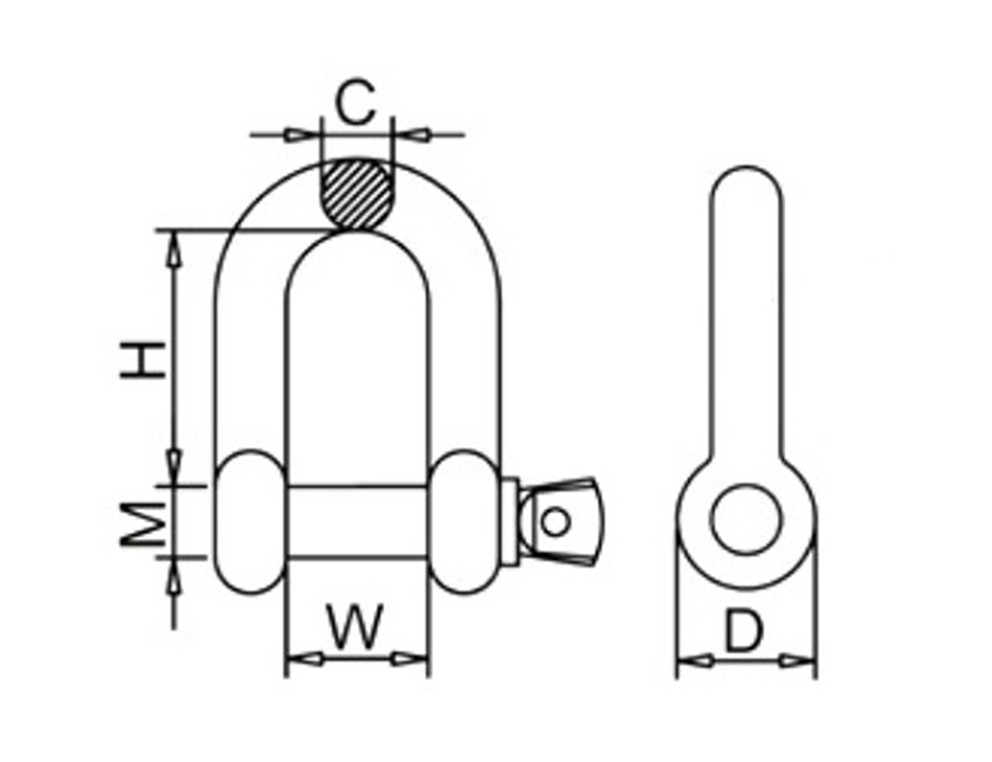

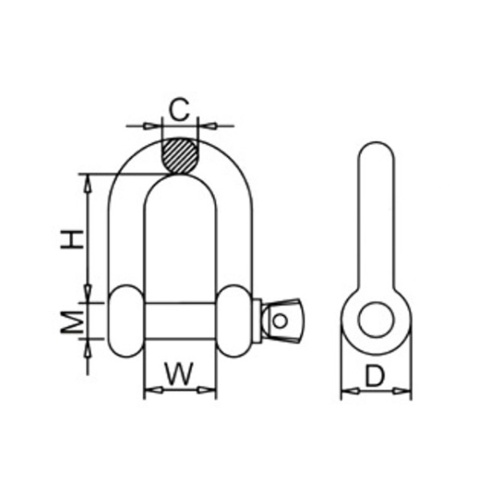

Drawing

Thread M in drawing is same as dimension C.

shackle hitch

Size Table

C ( mm / inch )	W ( mm / inch )	D ( mm / inch )	H ( mm / inch )	WLL （ kgs / lbs ) ( Work Load Limit )	NW （ kgs / lbs ) ( Net Weight )
4 / 0.1575"	8 / 0.3150"	9 / 0.3543"	14 / 0.5512	120 / 260	0.008 / 0.018
5 / 0.1969"	10 / 0.3937"	11 / 0.4331"	17 / 0.6693”	200 / 440	0.015 / 0.033
6 / 0.2362"	12 / 0.4724"	12 / 0.4724"	21 / 0.8268”	300 / 660	0.024 / 0.053
8 / 0.3150"	16 / 0.6299”	16 / 0.6299”	28 / 1.1024”	500 / 1100	0.058 / 0.128
10 / 0.3937"	21 / 0.8268"	20 / 0.7874"	35 / 1.3780"	800 / 176	0.111 / 0.244
12 / 0.4724"	25 / 0.9843"	24 / 0.9449"	42 / 1.6535”	1000 / 2200	0.199 / 0.438
16 / 0.6299”	33 / 1.2992”	32 / 1.2598"	56 / 2.2047”	2000 / 4400	0.472 / 1.038
20 / 0.7874"	42 / 1.6535"	40 / 1.5748”	66 / 2.5984”	3000 / 6600	0.888 / 1.954
22 / 0.8661"	45 / 1.7717"	44 / 1.7323”	77 / 3.0315”	4000 / 8800	1.222 / 2.688
25 / 0.9843"	54 / 2.1260"	50 / 1.9685”	87 / 3.4252”	5000 / 11000	1.780 / 3.916
