Carabiner Screw Lock Quick Link
  • Carabiner Screw Lock Quick Link
  • Carabiner Screw Lock Quick Link
Carabiner Screw Lock Quick Link
Carabiner Screw Lock Quick Link

Carabiner Screw Lock Quick Link

Min. Order:
50 Piece/Pieces
Min. Order:
50 Piece/Pieces
Transportation:
Ocean, Air
Port:
Yantian China
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Payment Type: L/C,T/T
Incoterm: FOB
Certificate: ISO9001
Transportation: Ocean,Air
Port: Yantian China
Product Description
Product Description

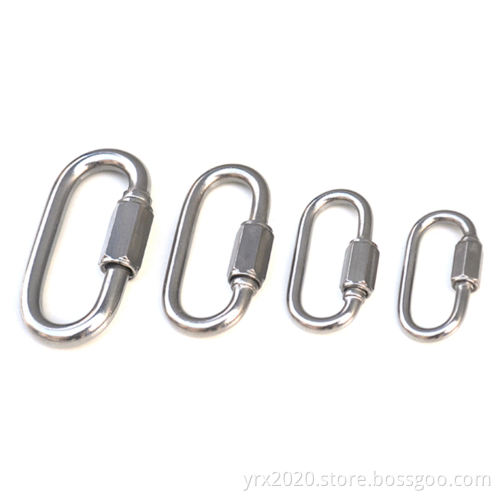

Carabiner Screw Lock

The Carabiner Screw Lock belongs to connecting parts.
(Click here for showing the product Bolt Snap Hook Half Round Base.)
We manufacture a whole range product for fitting all occasions. Size can be found in the below table.
(Click here for showing the product Quick Link.)
The part material is AISI 304 or AISI 316 stainless steel for maximum corrosion resistance and durability. The material can also be carbon steel with plating.
(Click here for showing the product Spring Snap Hook.)
The parts are durable, reliable, strong, rustproof, tough, secure. It works perfectly for marine, industrial, rigging, household, and webbing applications.
(Click here for showing the product Diving Hook Double Ended.)


We make ODM and OEM products. All materials are Rohs and REACH compliance. Please don't hesitate to contact with us for asking for details, drawings and quoting.

carabiner with screw lockcarabiner knot

Drawing


Size Table

B ( mm / inch ) A ( mm / inch ) C ( mm / inch ) D ( mm / inch ) WLL ( Work Load Limit )
3.5 / 0.1378" 36 / 1.4173" 10 / 0.3937" 5 / 0.1969" 180 kgs / 400 lbs
4 / 0.1575" 40 / 1.5748" 11.5 / 0.4528" 5.4 / 0.2126" 220 kgs / 500 lbs
5 / 0.1969" 48.5 / 1.9094" 13 / 0.5118" 6.5 / 0.2559" 320 kgs / 700 lbs
6 / 0.2362" 57 / 2.2441" 14.5 / 0.5709"  7.5 / 0.2953" 400 kgs / 900 lbs
7 / 0.2756" 67 / 2.6378" 16.5 / 0.6496" 8 / 0.3150" 550 kgs / 1200 lbs
8 / 0.3150" 74 / 2.9134" 17.5 / 0.6890" 10 / 0.3937"  680 kgs / 1500 lbs
9 / 0.3543" 83.5 / 3.2874" 19 / 0.7480" 11 / 0.4331" 860 kgs / 1900 lbs
10 / 0.3937" 90 / 3.5433" 20.5 / 0.8071" 12 / 0.4724" 1050 kgs / 2300 lbs
12 / 0.4724" 104.5 / 4.1142" 22.5 / 0.8858" 15 / 0.5906" 1140 kgs / 2500 lbs
