D Shackle With Safety Screw Pin
- Min. Order:
- 50 Piece/Pieces
- Min. Order:
- 50 Piece/Pieces
- Transportation:
- Ocean, Air
- Port:
- Yantian China
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Payment Type: | L/C,T/T |
| Incoterm: | FOB |
| Certificate: | ISO9001 |
| Transportation: | Ocean,Air |
| Port: | Yantian China |

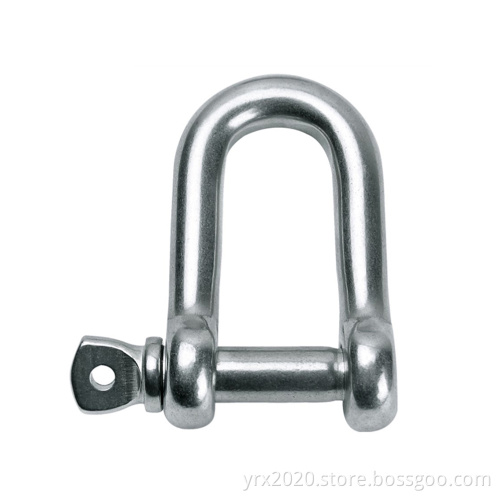

The D Shackle With Safety Pin belongs to connecting parts.
(Click here to show the product Diving Hook Double Ended.)
The shackle body is a D shape. It has a safety screw collar pin. It can be made of stainless steel 304, 316, or carbon steel with plating. The part is strong, durable, rustproof, tough, secure, and reliable.
(Click here to show the product Bolt Snap Hook Half Round Base.)
This shackle is widely used in many places like rock climbing, shade sails, industrial, sailboats, yachts, cable railing, etc. The part is also called bow shackle, long D shackle, twist shackle, wide D shackle, chain shackle, anchor shackle.
(Click here to show the product Quick Link.)
We provide whole range size parts to fit all occasions.
(Click here to show the product Spring Snap Hook.)
We make ODM and OEM products. All materials are Rohs and REACH compliance. Please don't hesitate to contact with us for asking for details, drawings and quoting.

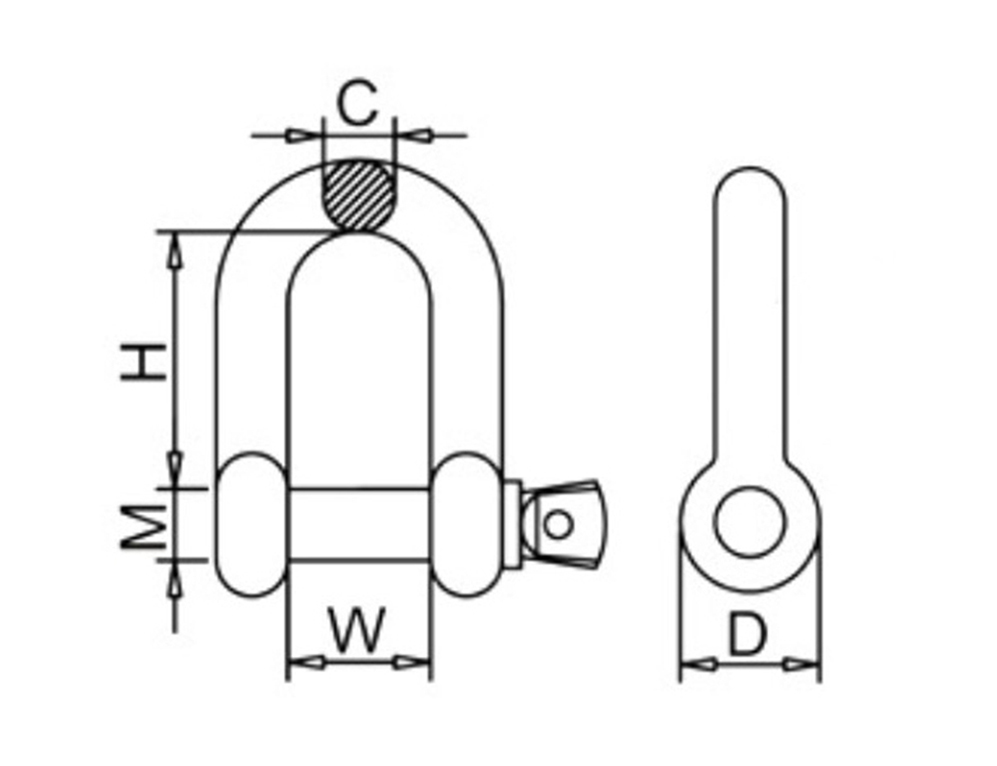

Drawing
Thread M in drawing is same as dimension C.
Size Table
C ( mm / inch )
W ( mm / inch )
D ( mm / inch )
H ( mm / inch )
4 / 0.1575"
8
/ 0.3150"
9
/ 0.3543"
16
/ 0.6299”
120
/ 260
0.008
/ 0.018
5 / 0.1969"
10
/ 0.3937"
11
/ 0.4331"
17
/ 0.6693”
200
/ 440
0.015
/ 0.033
6 / 0.2362"
12
/ 0.4724"
12
/ 0.4724"
23
/ 0.9055"
300
/ 660
0.024
/ 0.053
8 / 0.3150"
16
/ 0.6299”
16
/ 0.6299”
30 /
1.1811”
500
/ 1100
0.058
/ 0.128
10 / 0.3937"
21
/ 0.8268"
20
/ 0.7874"
39
/ 1.5354”
800
/ 1760
0.111
/ 0.244
12 / 0.4724"
25
/ 0.9843"
24
/ 0.9449"
49
/ 1.9291”
1000
/ 2200
0.199
/ 0.438
14 / 0.5512"
28
/ 1.1024"
28
/ 1.1024"
56
/ 1.2047”
1500
/ 3300
0.318
/ 0.700
16 / 0.6299”
33
/ 1.2992”
32
/ 1.2598"
66
/ 2.5984”
2000
/ 4400
0.472
/ 1.038
18 / 0.7087"
36
/ 1.4173"
36
/ 1.4173"
69
/ 2.7165”
2500
/ 5500
0.648
/ 1.426
20 / 0.7874"
42
/ 1.6535"
40
/ 1.5748”
74
/ 2.9134”
3000
/ 6600
0.888
/ 1.954
22 / 0.8661"
45
/ 1.7717"
44
/ 1.7323”
90
/ 3.5433”
4000
/ 8800
1.222
/ 2.688
25 / 0.9843"
54
/ 2.1260"
50
/ 1.9685”
100
/ 3.9370”
5000
/ 11000
1.780
/ 3.916
28 / 1.1024"
56
/ 2.2047"
56
/ 2.2047"
95
/ 3.7401”
7000
/ 15400
2.288
/ 5.034
32 / 1.2598"
64
/ 2.5197"
64
/ 2.5197"
102
/ 4.0157”
8000
/ 17600
3.333
/ 7.333
38 / 1.4961"
76
/ 2.9921"
74
/ 2.9134”
118
/ 4.6457"
12000
/ 26400
5.612
/ 12.346
