Basic Info
Basic Info
Place of Origin: China
Payment Type: L/C,T/T
Incoterm: FOB
Certificate: ISO9001
Transportation: Ocean,Air
Port: Yantian China
Product Description
Product Description

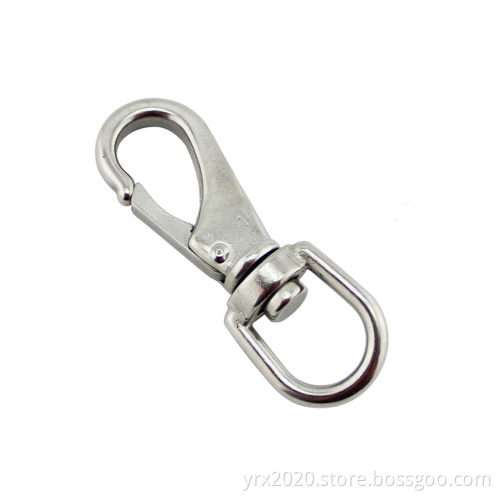

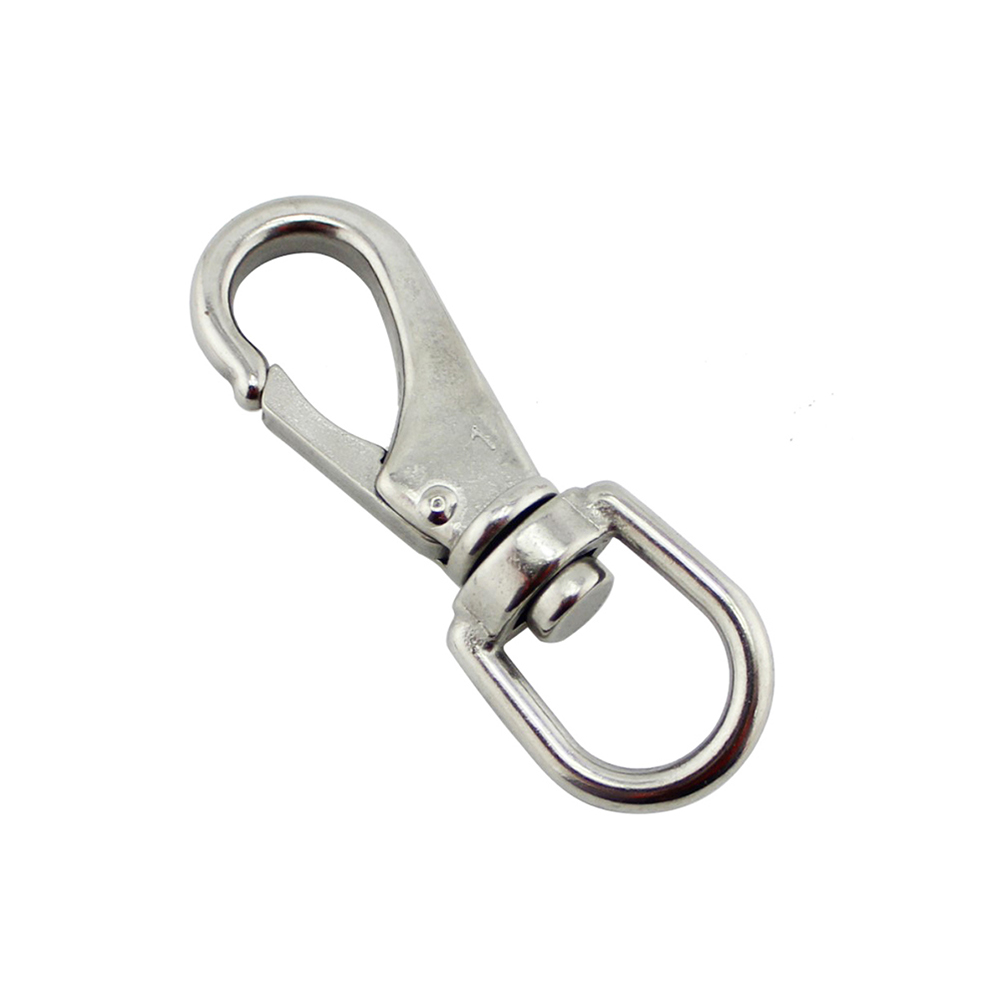

Spring Hook Stainless Steel

The Spring Hook Stainless Steel belongs to connecting parts.
(Click here to show the product Quick Link.)
This spring hook is 360-degree tangle-free. It is for Carabiner, Luggage Bag, Dog Buckle, Snap Hook Bag, Hanger, DIY Key Chain, Buttons Sewing Tool, etc.
(Click here to show the product Bolt Snap Hook Half Round Base.)
The hook color can be black, silver, or other colors. The material can be Zinc casting with plating, stainless steel AISI 304, or AISI 316. The AISI 316 stainless steel has the best corrosion resistance among standard stainless steel.
(Click here to show the product Diving Hook Double Ended.)
The hook is durable, tough, secure, reliable, and rust-proof. It works well for household, commercial and industrial products.

(Click here to show the product Spring Snap Hook.)



We make ODM and OEM products. All materials are Rohs and REACH compliance. Please don't hesitate to contact with us for asking for details, drawings and quoting.

spring clip

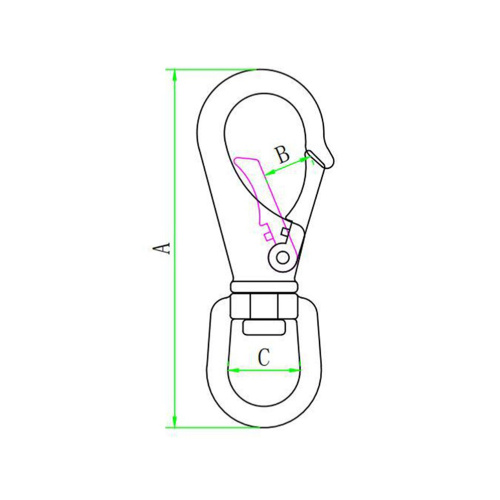

Drawing

script hook v


Size Table

A ( mm / inch ) B ( mm / inch ) C ( mm / inch ) WLL ( Work Load Limit )  NW ( Net Weight )
69 / 2.7165" 6.5 / 0.2559" 16 / 0.6299” 50 kgs / 110 lbs 0.03 kg / 0.066 lb
88 / 3.4646" 9 / 0.3543" 19 / 0.7480” 70 kgs / 150 lbs 0.063 kg / 0.139 lb
101 / 3.9764" 14 / 0.5512" 21 / 0.8268” 120 kgs / 260 lbs 0.092 kg / 0.202 lb
121 / 4.7638" 16 / 0.6299" 27 / 1.0630” 150 kgs / 330 lbs 0.145 kg / 0.319 lb
