Wire Rope Clasp U-clamp Lifting Sling Durable Strong

Wire Rope Clasp U-clamp Lifting Sling Durable Strong

Get Latest Price

Min. Order:: 50 Piece/Pieces

Min. Order:: 50 Piece/Pieces

Transportation:: Ocean, Air

Port:: Yantian China

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C,T/T
Incoterm:	FOB
Certificate:	ISO9001
Transportation:	Ocean,Air
Port:	Yantian China

Product Description

Wire Rope Clasp U-clamp Lifting Sling Durable Strong
This Wire Rope Clasp U-clamp Lifting Sling Durable Strong belongs to connecting parts.
(Click here to show the product Diving Hook Double Ended.)
It’s also called US Type Drop Forged Wire Rope Clip, US Type Malleable Wire Rope Clip, Type A Wire Rope Clip, Din741 Wire Rope Clip, Type B Wire Rope Clips, Stainless Steel Wire Rope Clip.
(Click here to show the product Spring Snap Hook.)
The part is for fixing wire/rope. Its Material can be stainless steel 304, 316, or carbon steel with plating. It is rustproof, tough, secure, strong, reliable, and durable.
(Click here to show the product Quick Link.)

Please find the different sizes part in the below table.

(Click here to show the product Bolt Snap Hook Half Round Base.)

We make ODM and OEM products. All materials are Rohs and REACH compliance. Please don't hesitate to contact with us for asking for details, drawings and quoting.

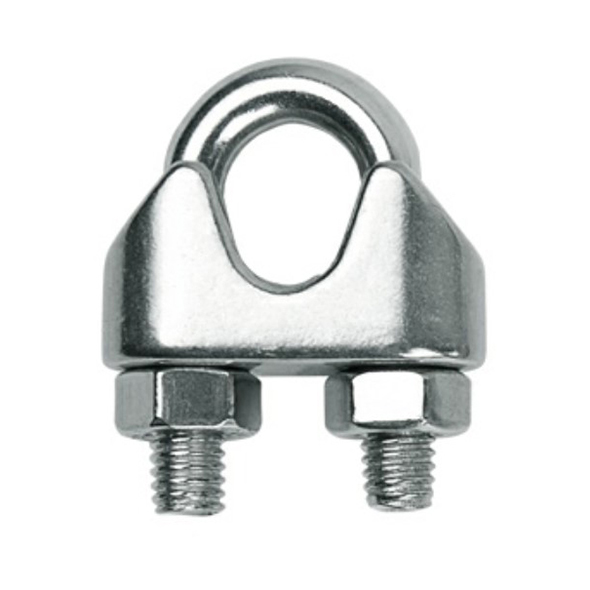

Wire Rope Clasp Low Resolution

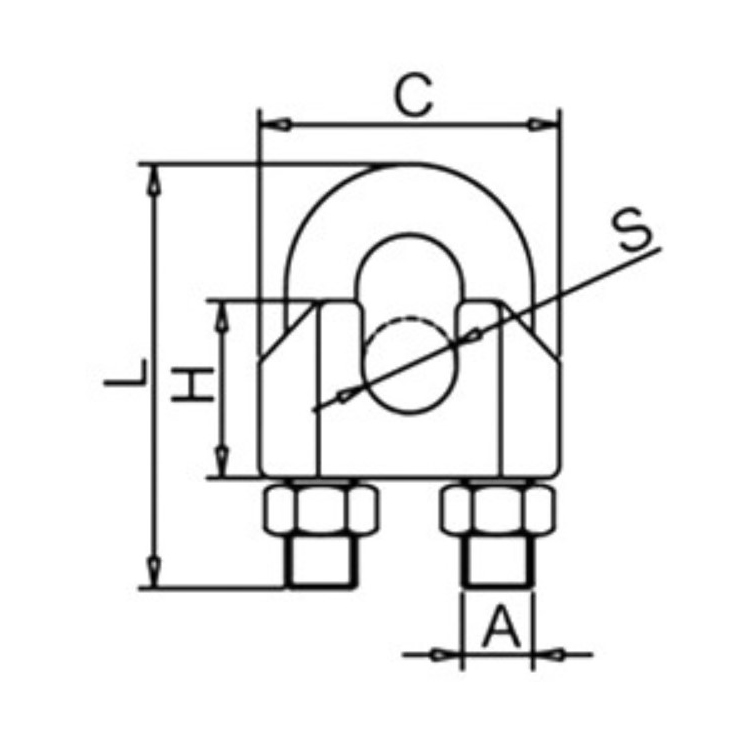

Drawing

Wire Rope Clasp Drawing

Size Table

Wire Size A C H S L NW

( mm / ( mm / ( mm / ( mm / ( mm / ( mm / Net Weight

inch ) inch ） inch ) inch ) inch ) inch ) ( kgs / lbs )

2 / 0.0787" M3 15.5 / 0.6102" 9 / 0.3543" 3 / 0.1181" 18 / 0.7087" 0.007 / 0.015

3 / 0.1181" M4 20 / 0.7874" 9 / 0.3543" 4 / 0.1575" 19 / 0.7480" 0.011 / 0.024

4 / 0.1575" M4 20 / 0.7874" 10 / 0.3937" 5 / 0.1969" 22 / 0.8661" 0.012 / 0.026

5 / 0.1969" M5 23 / 0.9055" 10 / 0.3937” 6 / 0.2362" 23 / 0.9055" 0.017 / 0.037

6 / 0.2362" M6 26 / 1.0236" 11 / 0.4331" 8 / 0.3150" 32 / 1.2598” 0.026 / 0.057

8 / 0.3150" M6 29 / 1.1417" 14 / 0.5512" 10 / 0.3937" 36 / 1.4173” 0.034 / 0.075

10 / 0.3937" M8 34 / 1.9685" 17 / 0.6693" 12 / 0.4724" 39 / 1.5354” 0.061 / 0.134

12 / 0.4724" M10 40 / 1.5748" 18 / 0.7087" 14 / 0.5512" 52 / 2.0472” 0.102 / 0.224

14 / 0.5512" M10 45 / 1.7717” 23 / 0.9055” 16 / 0.6299” 56 / 2.2047” 0.141 / 0.310

16 / 0.6299" M12 50 / 1.9685 26 / 1.0236" 18 / 0.7087" 68 / 2.6772" 0.214 / 0.471

20 / 0.7874" M12 55 / 2.1654" 30 / 1.1811" 22 / 0.8661" 70 / 2.7559" 0.257 / 0.565

22 / 0.8661" M12 60 / 2.3622" 33 / 1.2992" 24 / 0.9449" 80 / 3.1496" 0.364 / 0.800

24 / 0.9449" M12 65 / 2.5591" 34 / 1.3386" 26 / 1.0236" 88 / 3.4646" 0.457 / 1.005
