Clamps for Hose High Strength Rustproof
  • Clamps for Hose High Strength Rustproof
  • Clamps for Hose High Strength Rustproof
Clamps for Hose High Strength Rustproof
Clamps for Hose High Strength Rustproof

Clamps for Hose High Strength Rustproof

Get Latest Price
Min. Order:
100 Piece/Pieces
Min. Order:
100 Piece/Pieces
Transportation:
Ocean, Air
Port:
Yantian China
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Payment Type: L/C,T/T
Incoterm: FOB
Certificate: ISO9001
Transportation: Ocean,Air
Port: Yantian China
Product Description
Product Description

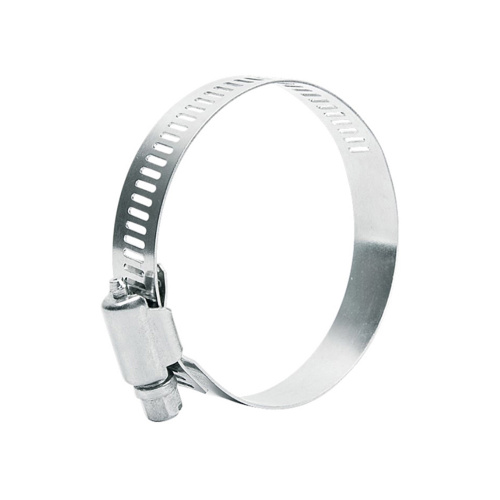

Clamps for Hose High Strength Rustproof
The Clamps for Hose High Strength Rustproof belongs to the Clamps Clips of the Fastener Series. (Show the product Hose Clamp Stainless Steel.) As a common hardware product, hose clamps are widely used in households, commercials, and industries. (Show the product Hose Clamp Silver.) Our stainless steel hose clamps have complete specifications, good quality, high strength, and good rust resistance, which are deeply trusted by customers. Our standard hose clamps can be fitted with pipe diameters ranging from 6 mm (0.2362") to 289 mm (11.3781"). Customers can also customize oversized non-standard hose clamps. (Show the product R Clip Stainless Steel.) If you need hose clamps and other fasteners, please don't hesitate to contact us. We will be able to satisfy our customers. (Show the product R Clip Metal Silver.)

We make ODM and OEM products. All materials are Rohs and REACH compliance. Please don't hesitate to contact with us for asking for details, drawings and quoting.

clamperl

Drawing

clamperl evolution

Size Table


D Min.

Minium Diameter

(mm / inch)

D Max.

Maximum Diameter

(mm / inch)

W

Band Width

(mm / inch)

t

Band Thickness

(mm / inch)

6 / 0.2362" 12 / 0.4724" 8 / 0.3150" 0.55 / 0.0217"
10 / 0.3937" 16 / 0.6299" 8 / 0.3150" 0.55 / 0.0217"
13 / 0.5118" 19 / 0.7480" 8 / 0.3150" 0.55 / 0.0217"
16 / 0.6299" 25 / 0.9843" 8 / 0.3150" 0.55 / 0.0217"
19 / 0.7480" 29 / 1.1417" 8 / 0.3150" 0.55 / 0.0217"
13 / 0.5118" 23 / 0.9055" 12 / 0.4724" 0.6 / 0.0236"
14 / 0.5512" 27 / 1.0630" 12 / 0.4724" 0.6 / 0.0236"
18 / 0.7087" 32 / 1.2598" 12 / 0.4724" 0.6 / 0.0236"
21 / 0.8268" 38 / 1.4961" 12 / 0.4724" 0.6 / 0.0236"
21 / 0.8268" 44 / 1.7323" 12 / 0.4724" 0.6 / 0.0236"
27 / 1.0630" 51 / 2.0079" 12 / 0.4724" 0.6 / 0.0236"
33 / 1.2992" 57 / 2.2441" 12 / 0.4724" 0.6 / 0.0236"
40 / 1.5748" 63 / 2.4803" 12 / 0.4724" 0.6 / 0.0236"
46 / 1.8110" 70 / 2.7559" 12 / 0.4724" 0.6 / 0.0236"
52 / 2.0472" 76 / 2.9921" 12 / 0.4724" 0.6 / 0.0236"
59 / 2.3228" 82 / 3.2283" 12 / 0.4724" 0.6 / 0.0236"
65 / 2.5591" 89 / 3.5039" 12 / 0.4724" 0.6 / 0.0236"
72 / 2.8346" 95 / 3.7402" 12 / 0.4724" 0.6 / 0.0236"
78 / 3.0709" 101 / 3.9764" 12 / 0.4724" 0.6 / 0.0236"
84 / 3.3071" 108 / 4.2520" 12 / 0.4724" 0.6 / 0.0236"
91 / 3.5827" 114 / 4.4882" 12 / 0.4724" 0.6 / 0.0236"
105 / 4.1339" 127 / 5" 12 / 0.4724" 0.6 / 0.0236"
118 / 4.6457" 140 / 5.5118" 12 / 0.4724" 0.6 / 0.0236"
130 / 5.1181" 152 / 5.9843" 12 / 0.4724" 0.6 / 0.0236"
141 / 5.5512" 165 / 6.4961" 12 / 0.4724" 0.6 / 0.0236"
155 / 6.1024" 178 / 7.0079" 12 / 0.4724" 0.6 / 0.0236"
175 / 6.8898" 197 / 7.7559" 12 / 0.4724" 0.6 / 0.0236"
194 / 7.6378" 216 / 8.5039" 12 / 0.4724" 0.6 / 0.0236"
213 / 8.3858" 235 / 9.2520" 12 / 0.4724" 0.6 / 0.0236"
232 / 9.1339" 254 / 10" 12 / 0.4724" 0.6 / 0.0236"
251 / 9.8819" 273 / 10.7480" 12 / 0.4724" 0.6 / 0.0236"
270 / 10.6299" 292 / 11.4961" 12 / 0.4724" 0.6 / 0.0236"
289 / 11.3780" 311 / 12.2441" 12 / 0.4724" 0.6 / 0.0236"
