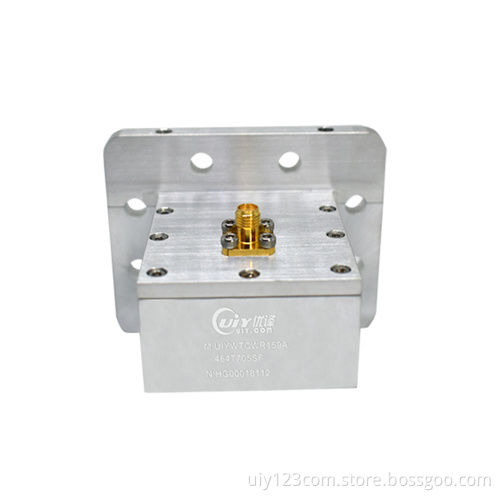

WR159 Waveguide to Coaxial Adapter 4.64~7.05GHz SMA Female connector
-
$200.001-9 Piece/Pieces
-
$180.00≥10 Piece/Pieces
- Transportation:
- Air, Express
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen,China |
|---|---|
| Productivity: | 1000pcs/months |
| Supply Ability: | 1000PCS/month |
| Payment Type: | T/T |
| Incoterm: | EXW,FOB,CFR |
| Certificate: | ROHs |
| HS Code: | 8517799000 |
| Transportation: | Air,Express |
| Port: | Shenzhen |
Model Number: UIYWTCWR159A464T705SF
Frequency Range:4.64~7.05GHz
Insertion Loss:0.2dB
VSWR:1.15
Connector Type(Waveguide):WR159(BJ58)
Connector Type(Coaxial):SMA-F
CW Power:100W
Peak Power:3KW
Temperature: - 55~+85℃
Waveguide to Coaxial Adapter
Frequency range 0.32 to 112GHz
Military, space and commercial applications.
Low insertion loss, high isolation, high power handling.
Custom design available upon request.
Guaranteed for one year standard.
-
