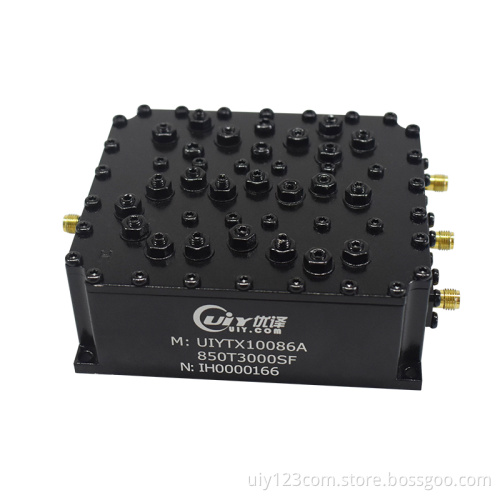

RF Triplexer 3 Channels CH1 850~1000MHz CH2 1700~2000MHz CH3 2500~3000MHz

Model Number: UIYTX10086A850T3000SF

Frequency Range: CH1: 850~1000MHz

                           CH2: 1700~2000MHz

                           CH3: 2500~3000MHz

Insertion Loss:0.5dB

Isolation:30dB

VSWR:1.22

Power:100W

Connector Type: N SMA

Temperature: -30~+70℃

Dimension:100*86*43mm

Up to 20GHz.

Military, space and commercial applications.

Low insertion loss, high isolation, high power handling.

Custom design available upon request.

FAQ:

1. Question: when can I get the price?
We usually quote within 24 hours after confirming the detailed requirements. If the situation is similar, we can quote
immediately.

2. Question: what is the minimum order quantity?
Minimum order 1 piece.

3. Question: when will the goods be delivered?
The delivery time is usually about 7 - 14 days after ordering.

4. Question: do you only have this product?
No, we can do other products, just need you to give the specific requirements of products and data or templates.

5. Question: what is the quality and quantity of your products?
We have international common materials and different material products, and you can choose according to your needs.

6. Question: why do you choose us?
We focus on Manufacturer RF Microwave Components & Export for 20 years, so we have the advantage of technology and quality, as well as pretty competitive price.

The products are in full compliance with RoHS, ISO9001 and ISO14001 international standard, with high-precision testing equipment and QC team, and we have established a strict quality control system. We are committed to providing our customers with high-quality products for a long time.
