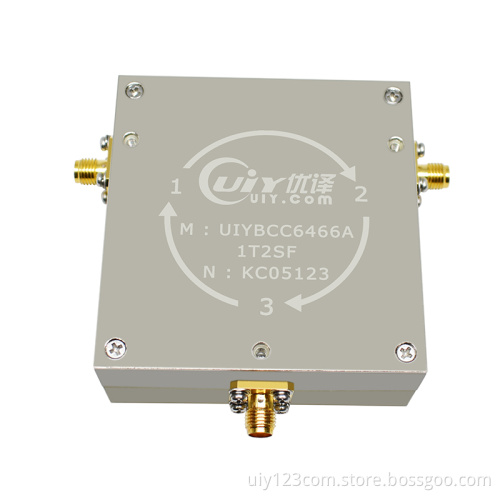

L Band 1.0~2.0GHz RF Broadband Coaxial Circulator 100W IL 0.6dB
-
$185.001-9 Piece/Pieces
-
$165.00≥10 Piece/Pieces
- Transportation:
- Express
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen,China |
|---|---|
| Productivity: | 1000pcs/month |
| Supply Ability: | 1000pcs/months |
| Payment Type: | T/T |
| Incoterm: | EXW |
| Certificate: | ROHS |
| HS Code: | 8517799000 |
| Transportation: | Express |
| Port: | Shenzhen |
Model Number: UIYBCC6466A1T2SF
Frequency Range: 1.0~2.0GHz
Insertion Loss: 0.6dB
Isolation: 17dB
VSWR: 1.4
Forward Power: 100W
Reverse Power: 100W
Connector Type: SMA-F
Temperature: +10~+70°C
Dimension:64*66*26mm
Frequency range 56MHz to 40 GHz, up to 2000W power.
Military, space and commercial applications.
Low insertion loss, high isolation, high power handling.
Custom design available upon request.
