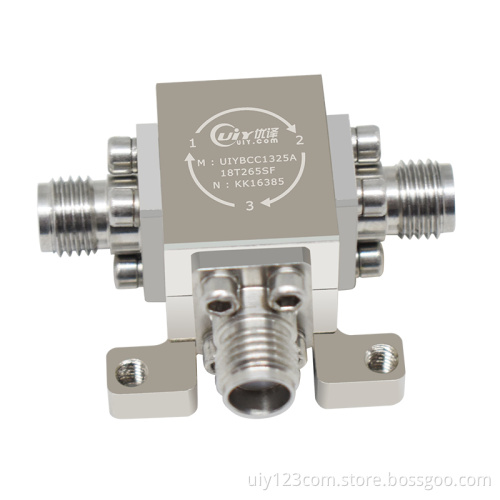

18 to 26.5GHz K Band RF Broadband Coaxial Circulator IL 1.7dB 10W
-
$390.001-9 Piece/Pieces
-
$360.00≥10 Piece/Pieces
- Transportation:
- Express
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen,China |
|---|---|
| Productivity: | 1000pcs/month |
| Supply Ability: | 1000pcs/months |
| Payment Type: | T/T |
| Incoterm: | EXW |
| Certificate: | Rohs |
| HS Code: | 8517799000 |
| Transportation: | Express |
| Port: | Shenzhen |
Model Number: UIYBCC1325A18T265SF
Frequency Range: 18.0~26.5GHz
Bandwidth: Full
Insertion Loss: 1.7dB
Isolation: 12dB
VSWR:1.8
Forward Power: 10W
Reverse Power: 10W
Connector Type: SMA-F
Temperature: -40~ +80°C
Dimension:13*25*16.6mm
Frequency range 56MHz to 40 GHz, up to 2000W power.
Military, space and commercial applications.
Low insertion loss, high isolation, high power handling.
Custom design available upon request.
