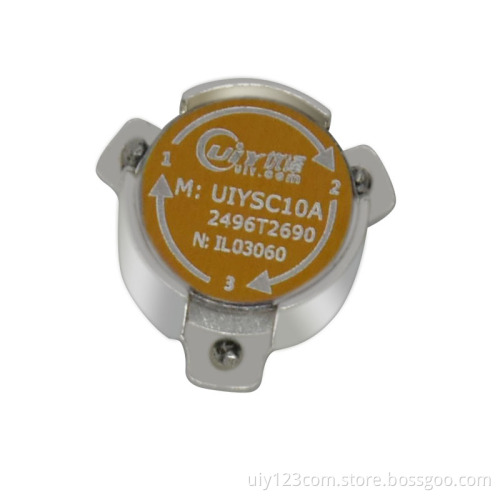

S Band 2496~2690MHz Passive Components RF Surface Mount Circulator 30W 0.3dB
-
$20.001-9 Piece/Pieces
-
$15.00≥10 Piece/Pieces
- Transportation:
- Air, Express
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen,China |
|---|---|
| Productivity: | 1000pcs/months |
| Supply Ability: | 1000PCS/month |
| Payment Type: | T/T |
| Incoterm: | EXW |
| Certificate: | ROHs |
| HS Code: | 8517799000 |
| Transportation: | Air,Express |
| Port: | Shenzhen |
Model Number: UIYSC10A2496T2690
Frequency Range:2496~2690MHz
Insertion loss:0.3dB
Isolation:21dB
VSWR:1.2
Forward Power:30W
Reverse Power:30W
Connector Type: SMT
Temperature:-40~+85℃
Surface Mount circulator
Frequency range 200MHz to 15 GHz
Military, space and commercial applications.
Low insertion loss, high isolation, high power handling.
Custom design available upon request.
-
