UHF RF Drop in Circulator 0.7~3.1GHz 200W TAB
-
$45.001-9 Piece/Pieces
-
$40.00≥10 Piece/Pieces
- Transportation:
- Air, Express
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen,China |
|---|---|
| Productivity: | 1000pcs/months |
| Supply Ability: | 1000PCS/month |
| Payment Type: | T/T |
| Incoterm: | EXW,CFR |
| Certificate: | ROHs |
| HS Code: | 8517799000 |
| Transportation: | Air,Express |
| Port: | Shenzhen |

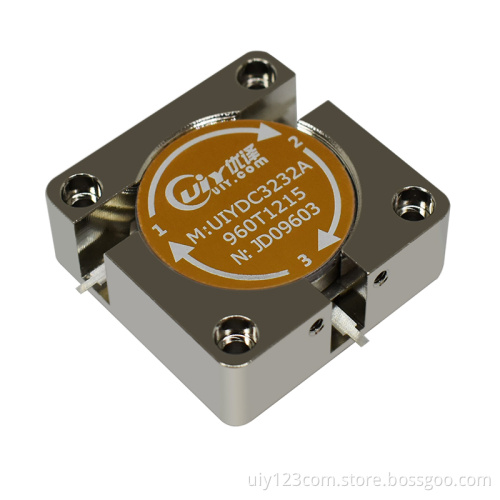

Model Number: UIYDC3232A
Frequency Range:0.7~3.1GHz
Bandwidth:30%
Insertion Loss:0.3 dB
Isolation:23dB
VSWR:1.15
Forward Power:200W
Reverse Power:200W
Connector Type: TAB
Temperature: -40~+85℃
Dimension:32*32*11mm
Frequency range 10MHz to 40GHz, up to 2000W
power.
Military, space and commercial applications.
Low insertion loss, high isolation, high power
handling.
Custom design available upon request.
-
