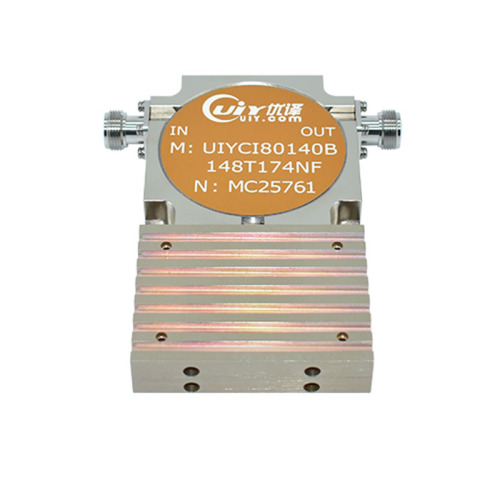

VHF Band 136 to 174MHz RF Coaxial Isolators with High Power 500W
-
$400.001-9 Piece/Pieces
-
$370.00≥10 Piece/Pieces
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | Paypal,T/T |
|---|---|
| Incoterm: | CFR,EXW |
| Model Number | UIYCI80140B148T174NF |
| Frequency Range | 148~174MHz |
| Insertion Loss | 0.5dB |
| Isolation | 20dB |
| VSWR | 1.25 |
| Forward Power | 500W |
| Reverse Power | 250W |
| Connector Type | N Female |
| Temperature | 0~+70degree |
| Dimension | 80*140*18mm |
