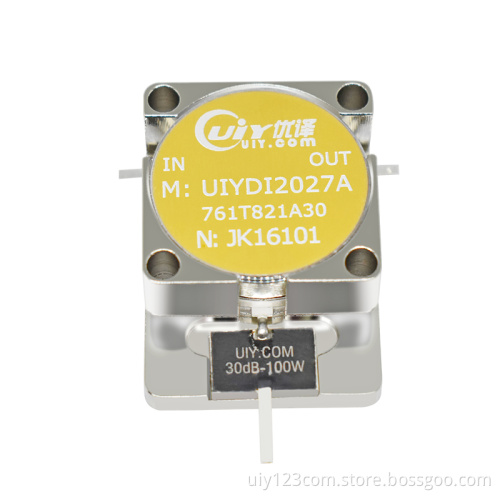

UHF Band 761 to 821MHz RF Drop in Isolators with Attenuators 30dB
-
$25.001-9 Piece/Pieces
-
$19.00≥10 Piece/Pieces
- Transportation:
- Air, Express
- Port:
- Shenzhen, China
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen,China |
|---|---|
| Productivity: | 2000pcs/week |
| Supply Ability: | 2000pcs/week |
| Payment Type: | T/T,Paypal |
| Incoterm: | EXW,CFR |
| Certificate: | RoHs |
| HS Code: | 8517799000 |
| Transportation: | Air,Express |
| Port: | Shenzhen,China |
| Model Number |
UIYDI2027A761T821A30 |
| Frequency Range | 761~821MHz |
| Insertion Loss | 0.5dB |
| Isolation | 18dB |
| VSWR | 1.3 |
| Forward Power | 100W |
| Reverse Power | 100W-30dB |
| Connector Type | TAB |
| Temperature |
-40~+90°C |
|
Dimension |
20*27*10.6mm |
| Warranty | 1 Year |
