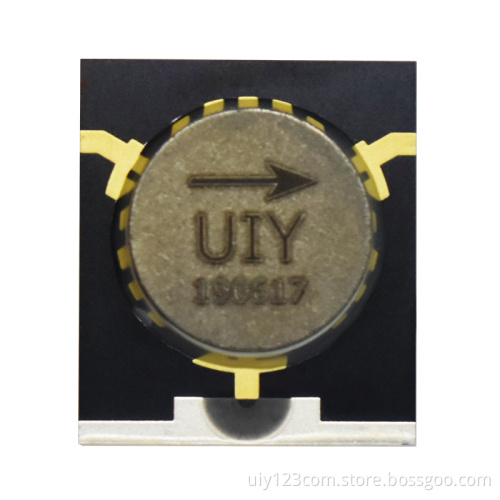

Minor Type S Band Isolators 3.0~4.5GHz RF Microstrip Isolators
-
$70.001-9 Piece/Pieces
-
$65.00≥10 Piece/Pieces
- Transportation:
- Land, Express
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen,China |
|---|---|
| Productivity: | 1000pcs/month |
| Supply Ability: | 1000pcs/month |
| Payment Type: | T/T,Paypal |
| Incoterm: | EXW,CFR |
| Certificate: | RoHS |
| HS Code: | 8517799000 |
| Transportation: | Land,Express |
| Port: | Shenzhen |
| Model Number |
UIYMI1416A3T45 |
|
Frequency Range |
3.0~4.5GHz |
| Bandwidth | 40% |
| Insertion Loss | 0.4dB |
| Isolation | 16dB |
| VSWR | 1.35 |
| Forward Power | 15W |
| Reverse Power | 5W |
| Connector Type | Microstrip |
| Temperature |
-55~+85°C |
| Dimension |
14*16*5mm |
