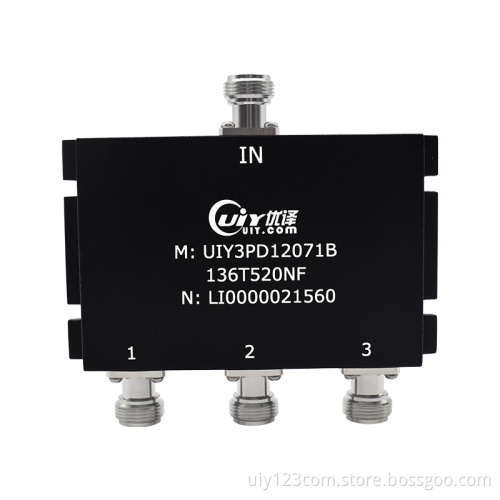

VHF UHF 136~520MHz RF 3 Way Power Dividers Splitters 1 Input 3 Output
-
$105.001-9 Piece/Pieces
-
$95.00≥10 Piece/Pieces
- Transportation:
- Express
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | shenzhen,China |
|---|---|
| Productivity: | 2000pcs/month |
| Supply Ability: | 2000pcs/month |
| Payment Type: | T/T,Paypal |
| Incoterm: | EXW,CFR |
| Certificate: | RoHs |
| HS Code: | 8517799000 |
| Transportation: | Express |
| Port: | Shenzhen |
| Model Number |
UIY3PD12071B136T520NF |
|
Frequency Range |
136~520MHz |
|
Insertion Loss |
0.5dB(Split 4.8dB) |
|
Isolation |
18dB |
|
VSWR |
1.3 |
|
Phase Unbalance |
±3˚ |
|
Amplitude Unbalance |
±0.4dB |
|
Forward Power |
50W |
|
Reverse Power |
2W |
|
Connector Type |
N-F |
|
Temperature |
-40~+85°C |
|
Dimension |
120*71*21mm |
-
