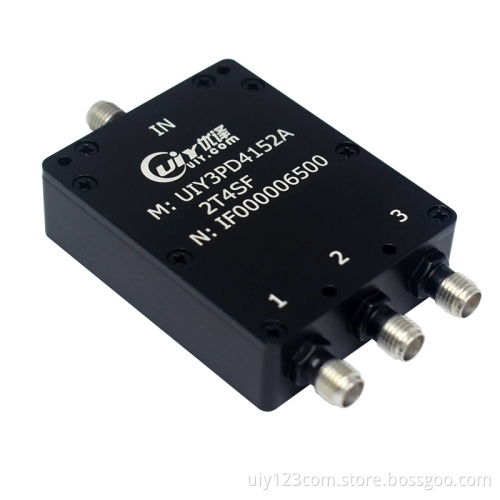

S Band 2.0~4.0GHz 1 Input 3 Output RF 3 Way Power Divider Splitter For Satcom
-
$200.001-9 Piece/Pieces
-
$170.00≥10 Piece/Pieces
- Transportation:
- Express, Ocean, Land
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen,China |
|---|---|
| Productivity: | 1000pcs/week |
| Supply Ability: | 1000pcs/week |
| Payment Type: | T/T,Paypal |
| Incoterm: | CFR,EXW |
| Certificate: | ROHs |
| HS Code: | 8517799000 |
| Transportation: | Express,Ocean,Land |
| Model Number | UIY3PD4152A2T4SF |
| Frequency Range | 2.0~4.0GHz |
| Insertion loss | 0.6dB(Split 4.8dB) |
| Isolation | 18dB |
| VSWR Input | 1.3 |
| VSWR Output | 1.3 |
| Phase Unbalance |
±5˚ |
| Amplitude Unbalance | ±0.4dB |
| Forward Power | 30W |
| Reverse Power | 3W |
| Connector Type | SMA-F |
| Temperature | -55~+85°C |
| Dimension | 41*52*10mm |
-
