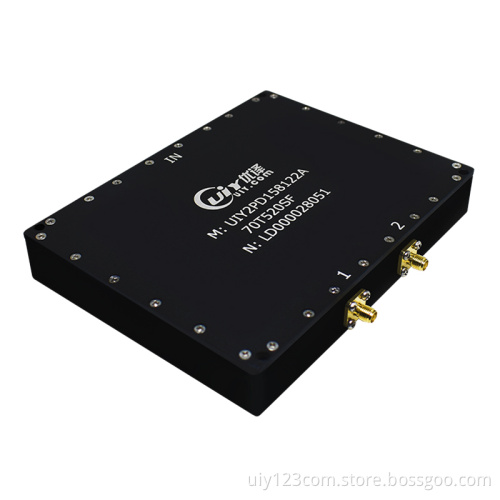

VHF UHF Band 70~520MHz 1 Input 2 Output Splitter RF 2 Way Power Divider
-
$85.001-9 Piece/Pieces
-
$75.00≥10 Piece/Pieces
- Transportation:
- Air, Express
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen,China |
|---|---|
| Productivity: | 1000pcs/week |
| Supply Ability: | 1000pcs/week |
| Payment Type: | T/T |
| Incoterm: | CFR,EXW |
| Certificate: | ROHs |
| HS Code: | 8517799000 |
| Transportation: | Air,Express |
|
Model
Number |
UIY2PD158122A70T520SF |
|
Frequency
Range |
70~520MHz |
|
Insertion |
0.7dB
(Split 3dB) |
|
Isolation |
20dB |
|
VSWR |
1.3 |
|
Phase
Unbalance |
±3˚ |
|
Amplitude
Unbalance |
±0.3dB |
|
Forward
Power |
50W |
|
Reverse
Power |
2W |
|
Connector
Type |
SMA-F |
|
Temperature |
-20~+70°C |
|
Dimension |
158*122*24mm |
-
