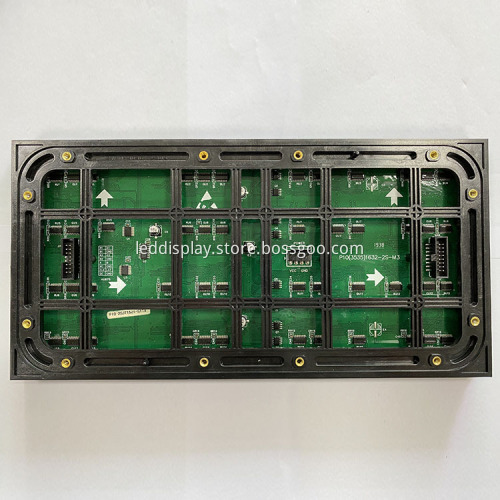

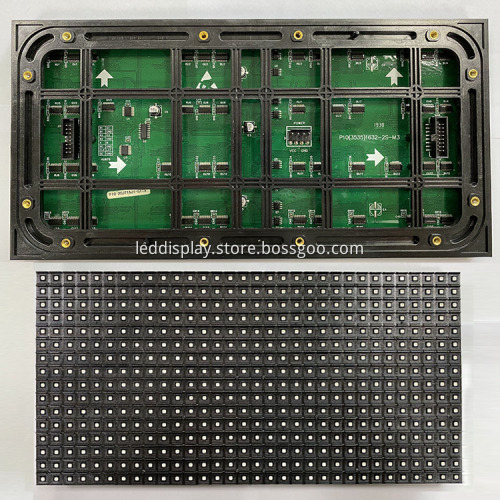

Outdoor Full Color 2scan LED Screen Module P10

Outdoor Full Color 2scan LED Screen Module P10

$10.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air, To Door

Port:: Shenzhen, Guangzhou, Hongkong

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China.
Productivity:	1000Pieces per day.
Supply Ability:	5000pcs per week.
Payment Type:	L/C,T/T,D/P,Paypal
Incoterm:	FOB,CFR,CIF,EXW,FCA,CPT,CIP
Certificate:	ISO, CCC
HS Code:	8531200000
Transportation:	Ocean,Land,Air,To Door
Port:	Shenzhen,Guangzhou,Hongkong

Product Description

Outdoor Full Color 2scan LED Screen Module P10 Led Screen Module

Pixel is 10000dots per squre meter, large lighting angle, uniform heat dissipation, colorful and

vivid. Using the 3535 table stick package, to meet the large angle of viewiing for quality, each of

the light-mimtting are red, green, blue, 256 grey level, which constitute 1677216 colors.

led display company best choice

Outdoor Full Color 2scan LED Screen Module P10

Led Display Outdoor P10 Unit Module	Item	Parameter
	Model Number	JS-PH10-2S
	Module size	320mm*160mm
	Pixel pitch	10mm
	Pixels Density	10000dots/m2
	Pixel configuration	RGB 3in1
	Package mode	SMD3535
	Pixel resolution	32dots(W)*16dots(H)
	Max Power	30W
	Drive type	Constant Current Drive
	Scan mode	1/2scan
	Port type	HUB75
	Brightness of white balance	≥6500cd/m2
Power	Working voltage	AC220V±10%
	Average Power consumption	390W/m2
	Max.Power consumption	≤800W/m2
	Current	≤20mA(single LED)
Control System	CPU	Pentium4 or above
	Operation system	WIN98/2000/NT/XP/WIN7
	Control method	Synchronization
Main Technical Parameter	Driving device	Constant drive IC
	Refresh frequency	≥960Hz
	Grey scale/colors	65536gray level/16.7M colors
	MTBF	≥10000hours
	Power switch	Automatic switch

P10 2scan led

The more infomation of Jongsun Outdoor Full Color P10 LED Display Module, we have many

Certificates, We can also apply the LED Display Outdoor certificate according to client depands.

LED Screen Module P10 Module Outdoor is sell well, please don't miss it.

Module Packing

For The Functions Of Led Display Js Payment

When you buy our LED Display products, we have the following sevice to you.

Free Training: Via the internet, or in our workshop, we provide all the traing including process

of operation LED Display, installation, maintenance, system set up, repair etc.

FAQ

Q1: What is the warranty for the led display?

A1: (1)Normally we will provide customers 1-2 years warranty and long term technology support and after-service.

(2)After the completion of the LED Display project, we will conduct life maintenance of the system continuously

and update the and software.

(3)For the hardware equipment, we only collect expenses on components. Customer bears the round-trip freight

Q2: How do you ensure the quality
A2: We get three QC processes:1.For raw materials;2.During the half of production; 3.Final QC test one by one after aging 24 hours.

Q3: How to do if any quality problems on our side in the warranty time?
A3: In usually every screen we will be ready more extra led screen modules as spare modules, if some modules happen fails, you can replace the fail modules by our spare modules,

When all the spare modules use out, You can send back these modules for us to repair, and we will send to you after repair and testing&aging well.

Q4: OEM OR ODM accepted?
A4:Yes,we can do OEM & ODM, logo on the PCB or package both are available.

Q5: Which refresh rate for the led display you can provide?
A5:the maximum refresh rate can be achieved more than 3840Hz. Also we can provide the normally refresh rate if you need.

Q6: How many days will samples be finished?And how about the mass production?
A6: Generally 5-7 days for samples making. The leading time of mass production will depend on the quantity.
