FSC-BT686 | Low Energy Module MESH Network Automation

USD10

≥2 Piece/Pieces

Min. Order:: 2 Piece/Pieces

Min. Order:: 2 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Parameter

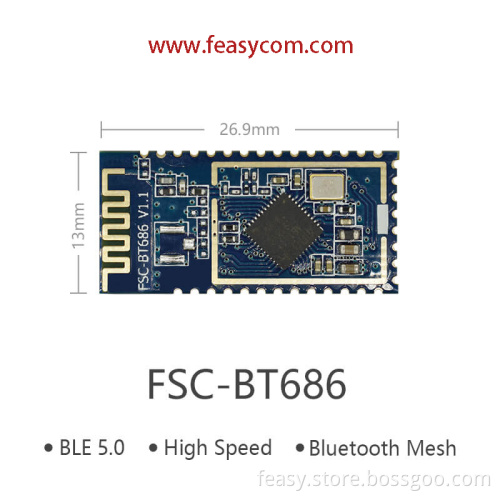

Bluetooth module model	FSC-BT686
Bluetooth version	Bluetooth 5.0 low energy
Dimension	13mm26.9mm2.0mm
Transmit power	+9.5dBm
Power supply	1.9 - 3.6V
Frequency	2.402-2.480 GHz
Profile	GATT(central/peripheral),SIG MESH
Antenna	Built-in PCB antenna(Default version), supports external antenna(Optional)
Highlights	High speed, long range, BLE Mesh network

Features:
*Bluetooth V5.0
*Embedded 32-bit MCU
*Embedded 4Mbit Flash
*64KB SRAM
*UART programming and data interface (baudrate can up to 921600bps)
*UART/I2C/SPI/PWM control interfaces
*Transmit power: 9.5dBm
*Receiving sensitivity: -94dBm
*Postage stamp sized form factor
*Support External Antenna
*Support I-PEX Antenna

Applications：
*Remote Control Applications
*SIG Mesh
*Other Data Applications
