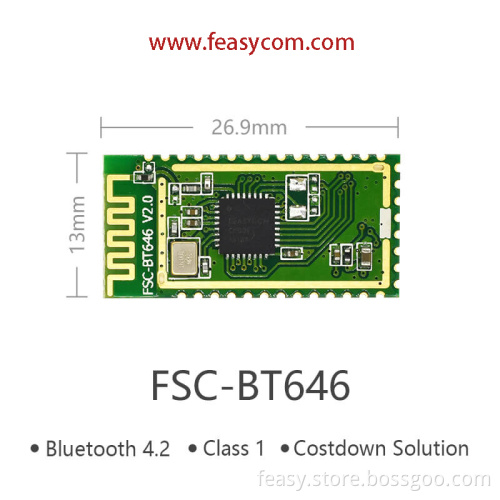

FSC-BT646 | Cheap Price Class 1 BLE Module
-
USD10≥2 Piece/Pieces
- Payment Type:
- T/T, Paypal
- Min. Order:
- 2 Piece/Pieces
- Min. Order:
- 2 Piece/Pieces
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T,Paypal |
|---|
|
Bluetooth module model
|
FSC-BT646
|
|
Bluetooth version
|
BLE 4.2 module(Bluetooth 4.2 low energy module)
|
|
Profiles
|
GATT(Central/Peripheral)
|
|
Dimension
|
13mm*26.9mm*2.0mm
|
|
Power supply
|
2.2-3.6V
|
|
Dimension
|
13mm*26.9mm*2.0mm
|
|
Transmit power
|
+13dBm
|
|
Antenna
|
Built-in PCB Antenna(Default), supports external antenna(Optional)
|
|
Highlights
|
Long Range, UART Pass-through, Low Cost
|
Features :
*Bluetooth 4.2/4.1/4.0
*Cheapest Price Bluetooth Module
*FCC, CE, BQB, KC Certified
*Internal MCU
*Class 1 (up to +13dBm)
*Bluetooth Low Energy Protocols
*Extensible Feature :HID
*UART , I2C , SPI , 12-bit ADC , PWM Hardware Interfaces
*Programmable Baud-Rate (Up to 921600bps)
*22 General Purpose I/O Pins
*Size: 13mm*26.9mm*2.0mm
*Bluetooth End Product Qualified
*Customized Firmware
*Over-The-Air (OTA) Firmware Updates
Applications:
*Health care product
*Low power sensors
*Wearables
*Automotive electronic product
*Health thermometer
*Smart home product
*HID Keyboard
*Safety and Security
*Accessories device
*Smart Energy Management
*Internet of Things
