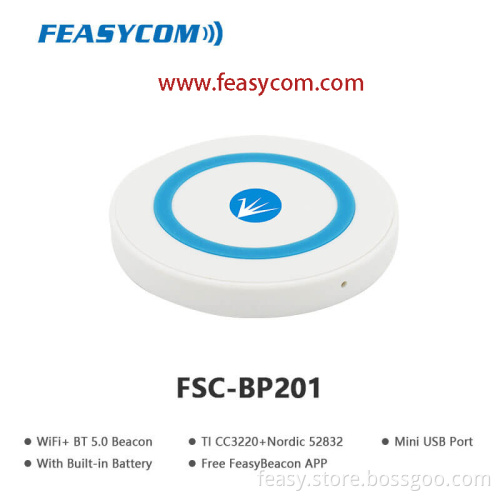

FSC-BP201 | Bluetooth Beacon Gateway
-
USD10≥2 Piece/Pieces
- Payment Type:
- T/T, Paypal
- Min. Order:
- 2 Piece/Pieces
- Min. Order:
- 2 Piece/Pieces
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T,Paypal |
|---|
FSC-BP201 integrated TI CC3220 Wireless wifi chipset and Bluetooth 5.0 low energy chipset, the excellent chipset performance ensures BP201's wifi transmission range up to 100m , and bluetooth transmission range up to 80m ( in open area ) .
FSC-BP201 beacon gateway can scan nearby beacon data which within it is working area ,and upload data to server .
With the available iOS & Android FeasyBeacon SDK, convenient the users with implementing their own application, such as Broadcast, Proximity Marketing, Digital Signage, Indoor Location, Asset Tracking, Vehicle Tracking, Gateway and Sensor and so on.
|
Product Specification |
|
|
Chipset |
TI CC3220 (Wifi )+Low Energy (Bluetooth) |
|
Standard |
Wifi +Bluetooth 5.0 |
|
APP Configuration Code |
Default Pin Code: 000000 |
|
Upgrade Mode |
OTA (over the air update firmware) |
|
TX power |
17 dBm(Wifi)+4 dBm(Bluetooth) |
|
Support system |
iOS 7.0+,Android4.3+ |
|
Android config app |
Yes |
|
iOS config app |
Yes |
|
Work distance |
Wifi 100M,Bluetooth 80M |
|
Bluetooth profile |
BLE 5.0 |
|
Wifi profile |
MQTT |
|
Power Supply |
Micro USB port or 250mAH Li Battery |
|
Material |
ABS plastic |
|
Color |
White |
|
Size |
Φ69mm, H:10mm |
|
Net weight |
6.4g |
|
Protection |
IP40 |
|
Operating temperature |
-40°C to +85°C |
