Features of Model the 600mm toll station stop go guide traffic signal light(4R3G):
1.600mm toll station stop go guide traffic signal light(4R3G) uses Taiwan Epistar chip lamp beads, high brightness, high refresh rate, and long service life.2. The bottom of the 600mm toll station stop go guide traffic signal light (4R3G) adopts a waterproof terminal for outlet, which improves the waterproof ability of the product.
3. The sunshade of the 600mm toll station stop go guide traffic signal light(4R3G) adopts an assembled design, which is simple and convenient to install.
4. The outer shell of the type 600mm toll station stop go guide traffic signal light(4R3G) is made of cold-rolled sheet, which has good surface quality, good stamping performance, and excellent processing characteristics. Products made of cold-rolled plates are durable and have a long service life.

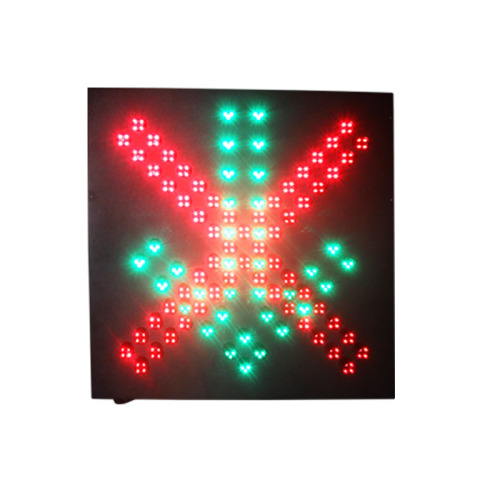

600mm toll station stop go guide traffic signal light (4R3G)
The parameter list of the 600mm toll station stop go guide traffic signal light (4R3G):1. Product size: 600*600*70mm
2. Number of lamp beads: 4 red/tube green 3/tube
3. Number of pixel tubes: 60 red and 34 green
4. Lamp beads category: Taiwan Epistar chip lamp beads
5. Red wavelength: 620-625NM
6. Green wavelength: 500-505NM (blue-green) 520-525NM (emerald green)
7. Working voltage: AC85V-265V
8. Service life: 100000H
9. Shell material: electrostatic spraying, sheet metal chassis
10. Visual distance: ≥1000M
11. Working temperature: -40℃-65℃
12. Product net weight: 12KG product
13. Rated power: red 15W green 18W
Installation method of the 600mm toll station stop go guide traffic signal light(4R3G):
1>Installation method of sun visor:1. Align the trapezoidal bracket with the holes on both sides of the lamp,
2. Pass the M4 screw through the trapezoidal bracket
3. Finally, tighten the screws
4. The sun visor installation method is the same as the trapezoidal bracket installation method
2>Installation method of L-shaped bracket:
1. Align the holes on the L-shaped bracket with the holes on the side M12
2. Set the gasket into the M12 screw
3. Pass the screw through the L-shaped bracket
4. Finally, tighten the screws
Connection mode of the 600mm toll station stop go guide traffic signal light(4R3G):
Connect to AC220V:1. Green line: green arrow signal line
2. Red line: red cross signal line
3. Black line: zero line
4. Yellow wire: ground wire
5. Wiring: AC220V
