300mm Solar Powered Portable Temporary Traffic Signal Light

300mm Solar Powered Portable Temporary Traffic Signal Light
300mm Solar Powered Portable Temporary Traffic Signal Light are mainly used for traffic roads. It is a mobile solar emergency traffic light. It uses solar energy. The light source uses high-quality LED energy-saving light sources. It is suitable for intersections. No cable connection is required. Need to break roads or overhead lines, installation is very simple, time-saving, labor-saving and cost-saving, easy maintenance, emergency command vehicles and pedestrians in the case of power outages or maintenance of traffic lights; its mobility is very strong, you can move the signal lights arbitrarily, placed in Various emergency needs junctions.

The basic parameters of 300mm Solar Powered Portable Temporary Traffic Signal Light:
Product model: WDM-YD300-02
1. Lamp holder size: 1050*350*350MM
2. Bottom box size: 950*950*500MM
3. Total height 3500MM (including solar panels)
4. Lamp beads category: Taiwan Epistar chip lamp beads
5. Number of lamp beads: 75 red, yellow and green each *4
6. Red wavelength: 620-625NM
7. Yellow light wavelength: 590-595NM
8. Green light wavelength: 520-525NM (emerald green) 500-505NM (blue-green)
9. Shell material: electrostatic spraying, sheet metal chassis
10. Working temperature: -40℃-65℃
11. Protection level: IP65
12. Battery: 12V/100AH*2
13. Working voltage: DC12V
14. Rated power: red/yellow 20W each green 24W
15. Solar panel: 80W*2/18V
16. Service life: 100000AH
17. Visual distance: ≥1000M
18. Working mode: remote control or manual control

Features of 300mm Solar Powered Portable Temporary Traffic Signal Light:
1. The 300mm Solar Powered Portable Temporary Traffic Signal Light cart casters adopt 360-degree movable casters, which is very convenient to move. At the same time with brakes.
2. The 5mm thick flange used on the pole of the 300mm Solar Powered Portable Temporary Traffic Signal Light enhances the stability of the product.
3. A fixed suction cup is added to the bottom of the 300mm Solar Powered Portable Temporary Traffic Signal Light to make the product more stable.
4. The 300mm Solar Powered Portable Temporary Traffic Signal Light use Taiwan Epistar chip lamp beads, high brightness, high refresh rate, and long service life.
5. 300mm Solar Powered Portable Temporary Traffic Signal Light use 80W/18V solar panels, solar powered, energy-saving and environmentally friendly.
6. The 300mm Solar Powered Portable Temporary Traffic Signal Light use a mobile cart, which is convenient to implement and saves time and effort.

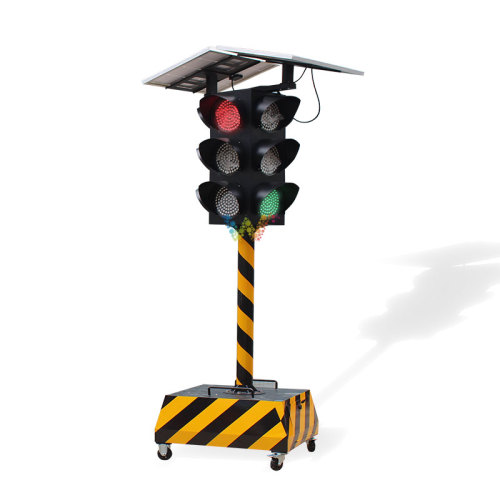

The physical picture of 300mm Solar Powered Portable Temporary Traffic Signal Light:

Installation method of 300mm Solar Powered Portable Temporary Traffic Signal Light:
(1) Lamp installation:
1. There is a screw at both ends, unscrew the nut on the screw,
2. Put the flat end of the "L" bracket on the screw according to the hole position and slot, and tighten the nut.
3. The sun visor is installed on the upper part of the lamp. Fold the three-corner aluminum plate into an arc shape, put it on the lamp, and tighten it with screws to the corresponding holes.
4. Punch 2 holes on the signal light pole, punch holes according to the hole position of the signal L bracket, pass a suitable screw through the light pole, and put the L-shaped bracket on the screw and fix it with a nut.

(2) Solar panel installation:
Assemble the solar panel with the solar bracket and tighten the screws.
(3) Solar panel and light box installation:
Align the holes of the assembled solar panel bracket with the holes on the top of the lamp, and then fasten them with M12 stainless steel screws. Then connect the solar panel's butting wire with the lamp. (The M12 screw is inserted into the shrapnel first, then the gasket, and then tightened)
(4) Installation of pole and cart:
First pass the power cord of the light box through the middle of the pole to the bottom of the trolley,
Then align the flange at the other end of the pole with the hole at the bottom of the trolley,
Then tighten it with 4 M12 stainless steel screws. (The M12 screw is inserted into the shrapnel first, then the gasket, and then tightened) Finally, take the power cord out of the bottom of the cart and connect it to the control panel of the cart.

Wiring instructions for 300mm Solar Powered Portable Temporary Traffic Signal Light:
1. Control panel wiring:
The red line is the public positive pole;
The black wire is the negative pole of the red light;
The yellow wire is the negative pole of the yellow light;
The green wire is the negative pole of the green light;
Each of the four power lines above is a traffic light in one direction. The power line corresponding to the east direction is connected to the east direction terminal of the corresponding control board; the power line corresponding to the west direction is connected to the west direction terminal of the corresponding control board; the power line corresponding to the south direction is connected to the corresponding control The south terminal of the board; the power cord corresponding to the north is connected to the north terminal of the corresponding control board.
2. Solar panel wiring:
Blue is negative;
Red is positive;
Long press the power switch key to turn on the power, and the power is successfully connected.
Press the power switch, when the lamp display shows "16", enter the manual mode, you can modify the display time of the traffic light according to actual needs. (Press the KEY power switch to adjust the number of the lamp display)

300mm Solar Powered Portable Temporary Traffic Signal Light accessories details:
(1) One lamp: 1
(2) Cart: 1
(3) Solar panels: 2
(4) Solar panel support: 1
(5) Sunshade: 12 pieces
(6) M12 screw + shrapnel + gasket: 16 sets
(7) M4 screws: 48 sets
(8) Pole: 1
(9) Instructions: 2 copies
(10) Certificate of conformity: 1 copy
