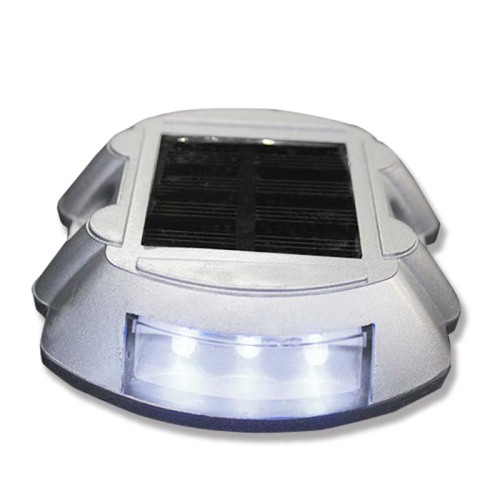

aluminium horseshoe shape reflector solar led road stud

Detailed parameters of aluminium horseshoe shape reflector solar led road stud:
1. Product model: WDM-DD05-6
2. Product size: 107*95*24MM
3. Color of lamp beads: red, yellow, blue, green and white
4. Number of lamp beads: 6
5. Red wavelength: 620-625NM
6. Yellow wavelength: 590-595NM
7. Blue wavelength: 470-475NM
8. Green wavelength: 520-525NM
9. White brightness: 18900-22600MCD
10. Protection grade: IP68
11. Shell material: cast aluminum
12. Battery voltage: 1.2V
13. Solar panel: 2.5V
14. Working temperature: -40℃~60℃
15. Working mode: light control (often flashing / always on)

2. Characteristics of aluminium horseshoe shape reflector solar led road stud:
1. Horseshoe-shaped solar road studs are mainly used as landscape lights in villas, residential quarters and small gardens.
It outlines road contours and has many uses.
2. Horseshoe-shaped solar spikes use 0.25W/2V monocrystalline silicon solar panels. Monocrystalline silicon is a relatively active non-metallic element. In addition to its general characteristics, it has the advantages of high purity and high solar energy conversion rate.
3. The horseshoe-shaped solar road stud adopts aluminum shell design, strong impact resistance, strong and durable. too
The solar panel is embedded in the aluminum frame, so that it can absorb solar energy better and will not be crushed by cars.
Pressure destruction.
4. The aluminium horseshoe shape reflector solar led road stud use ultra-bright Taiwan wafer chip beads, eye-catching colors, clear colors, no matter whether it is day or night, it has good visual performance, which can cause attention when driving the driver, reduce the speed, Improve driving safety on highways.
5. Horseshoe-shaped solar road studs are available in a variety of colors, and the color of lamp beads and reflectors can be customized according to customer requirements.
6. Horseshoe-shaped solar road studs have the protection function of over-charging and over-discharging.
7. Horseshoe-shaped solar road studs have good waterproof and dustproof effects, and the protection grade can reach IP68.

3. Installation steps of horseshoe-shaped solar road studs
1. Installation instructions:
Roadside line (not recommended to be installed in the middle of the road, to avoid excessive impact of the car and damage to the spike)
2. Installation steps:
 1> Positioning: first determine the installation position with a ruler to ensure that each position is on a straight line, the installation distance and the design requirements are subject to, the installation place should be flat, dry, clean and seamless.
 2> Mixing glue: A glue for road studs, B glue for road studs, the ratio of A glue and B glue is 1:1 (for example: A glue 1 kg, B glue is 1 kg). The glue must be stirred evenly and the color should be the same.
3> Glue: The road surface should be cleaned during installation, and the glue should be moderate. Both the bottom surface of the road studs should be adhered to, and the overflow should not be too much. About 40-50 grams of glue should be used for each road stud, and the glue should be applied to the bottom surface of the road signs. Place on the pre-marked location. After installation, clear road debris.
4> Patrol: After two hours, the installed spikes should be checked again.
5> Road closure: It is recommended to close the road for 6 hours to ensure the curing time of the glue.
