factory Reflective solar safety sign warning construction
- Payment Type:
- T/T, Paypal, Money Gram, Western Union
- Incoterm:
- EXW
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | guangdong |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | stock |
| Payment Type: | T/T,Paypal,Money Gram,Western Union |
| Incoterm: | EXW |
| Certificate: | CE/ROHS |
| HS Code: | 8530800000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
Features of factory Reflective solar safety sign warning construction
1) No need for grid power, saving and environmental protection;
2) The installation is simple and convenient, no need to dig a road to lay the line, not affected by the geographical environment, save money, and see the light on the pole;
3) Long service life, flame retardant
4) Horizontal installation does not need to be punched, and the supporting ring is directly installed
5) Continuous normal work for 5-7 days on cloudy and rainy days
6) The lamp shell is made of aluminum alloy profile, which has strong overall impact resistance and aging resistance
factory Reflective solar safety sign warning construction parameter details:
1. Product size: 1000*1000*70MM
2. Color of lamp beads: white, yellow
3. Number of lamp beads: White: 28 pcs. Yellow: 40pcs
4. Lamp beads category: Taiwan Epistar chip lamp beads
5. White brightness: 18900-22600MCD
6. Solar panel: 8W/18V
7. Battery: 10AH
8. Shell material: aluminum shell
9. Working voltage: 12V
10. Working temperature: -40℃~65℃
11. Control method: Synchronous flashing within a certain range
12. Commonly used hoop installation: 76MM hoop
Features of Solar Powered Pedestrian Crossing Road Safety sign Board:
Mainly used for urban roads. Using Taiwan Epistar chip lamp beads, the number of LEDs are closely arranged, ultra-high brightness, concentrated light, very large viewing angle, and good visual effects.
The shell is aluminum, which is fully enclosed, all-weather, weatherproof, and has good oxidation resistance. The equipment will not fade or rust during the service life.
Reflective film: stick 3M reflective film outside the front display screen of the product to enhance the visual effect.
Low power consumption: LED products have low power consumption, and the company thinks of being more low-carbon, environmentally friendly and energy-saving in design;
Strict aging: The aging is verified 24 hours before the product is shipped, and the performance is more superior!
Protection grade: IP53 (in line with the technical standard of the national traffic standard GB14887-2003)
Shenzhen Videmei Optoelectronics Co., Ltd., a provider and manufacturer of high-quality Videmei traffic lights!
Installation instructions for factory Reflective solar safety sign warning construction:

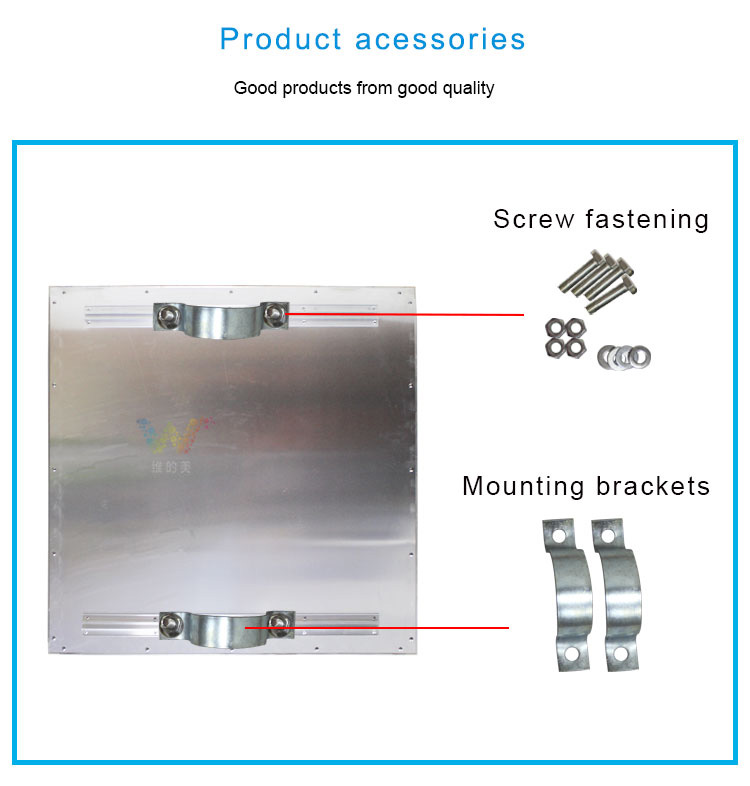

Hoop installation:
1. This product is simple and convenient to install. It can be installed on the pole with a hoop, and just use two hoops on the pole. Other installation methods can also be customized according to customer requirements.
2. Install the pole first. The pole base has four holes. Fix the pole with screws.

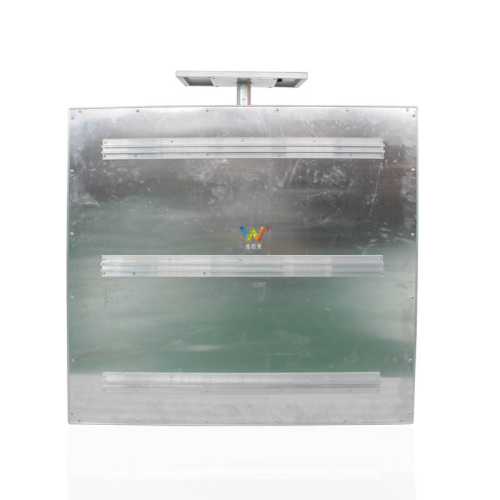

3. Then install the sign board at a suitable position on the pole, pass the M10 screw through the aluminum slot on the back of the product, and then align the hoop around the pole with the screws on the aluminum slot, that is, align the holes at both ends of the hoop Align the screws on both ends respectively, and then screw on the nuts.
4.Fix the hoop in the middle of the aluminum trough and tighten the nuts at both ends.
