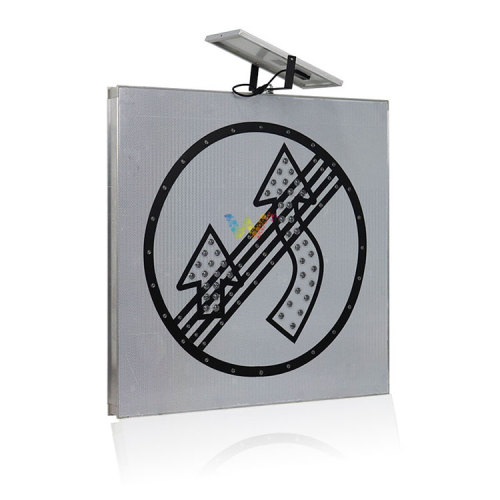

1000mm aluminium road warning solar traffic sign
- Payment Type:
- T/T, Paypal, Money Gram, Western Union
- Incoterm:
- EXW
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | guangdong |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | stock |
| Payment Type: | T/T,Paypal,Money Gram,Western Union |
| Incoterm: | EXW |
| Certificate: | CE/ROHS |
| HS Code: | 8530800000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |

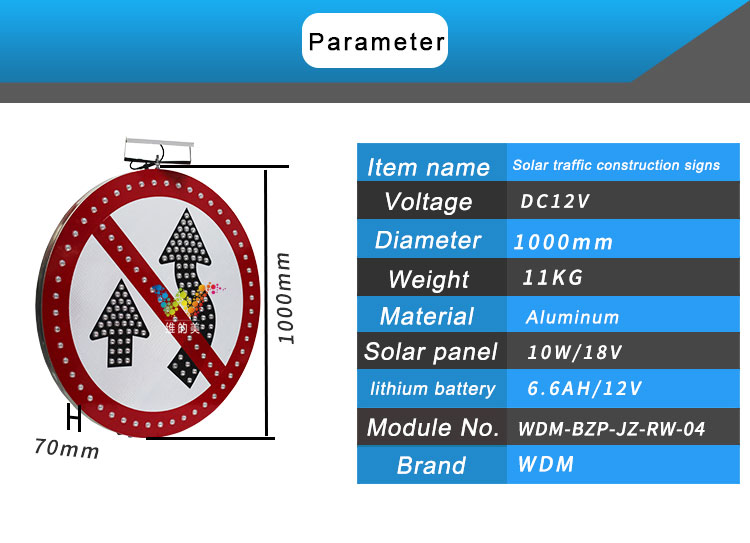

Detailed parameters of the aluminium road warning solar traffic sign:
1. Product size: 1000*1000*70MM
2. Lamp bead color: yellow,white
3. Number of lamp beads: customized
4. Lamp beads category: Taiwan Epistar chip lamp beads
5. Yellow wavelength: 590-595NM
6. Solar panel: 8W/18V
7. Battery: 5AH
8. Shell material: aluminum shell
9. Working voltage: 12V
10. Working temperature: -40℃~60℃
11. Working mode: stroboscopic
12. Protection level: IP65
13. Commonly used hoop installation: 76MM hoop

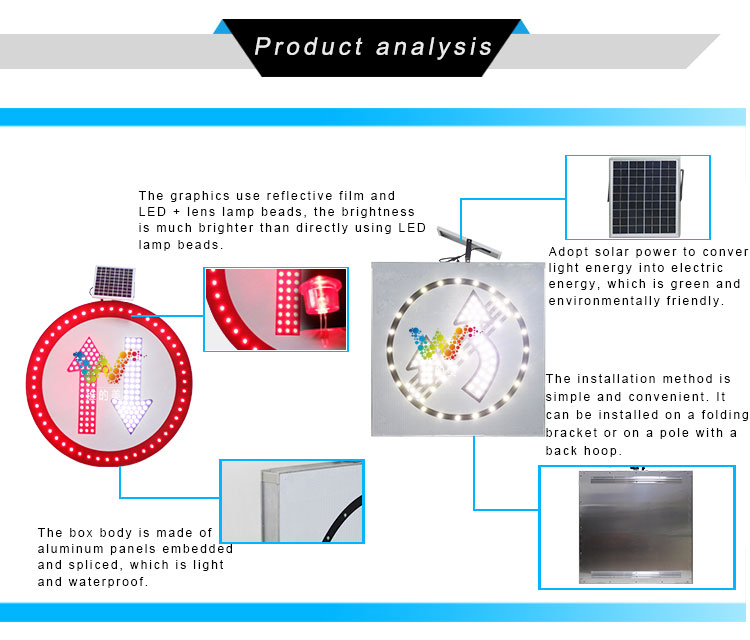

Features of the High Reflective aluminium road warning solar traffic sign:
1. The graphics use reflective film and LED + lens lamp beads, the brightness is much brighter than directly using LED lamp beads.
2. Adopt solar power to convert light energy into electric energy, which is green and environmentally friendly.
3.The box body is made of aluminum panels embedded and spliced, which is light and waterproof.
4. The installation method is simple and convenient. It can be installed on a folding bracket or on a pole with a back hoop.
Installation method of the 1000mm aluminium road warning solar traffic sign:

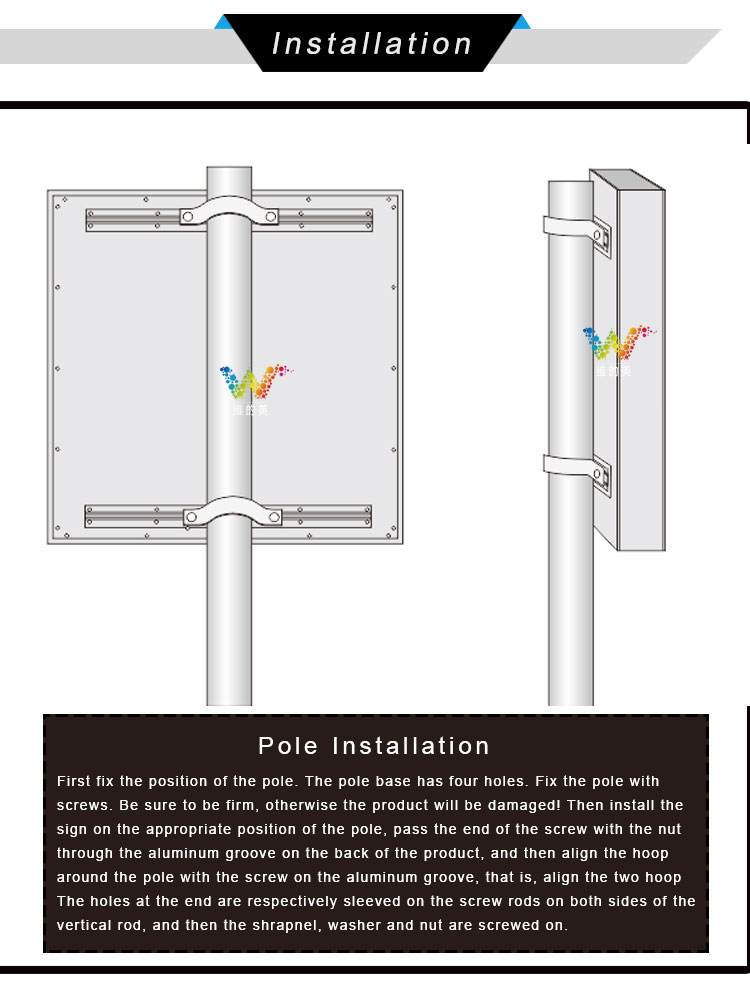

Pole Installation:First fix the position of the pole.The pole base has four holes. Fix the pole with screws. Be sure to be firm, otherwise the product will be damaged! Then install the sign on the appropriate position of the pole, pass the end of the screw with the nut through the aluminum groove on the back of the product, and then align the hoop around the pole with the screw on the aluminum groove, that is, align the two hoop The holes at the end are respectively sleeved on the screw rods on both sides of the vertical rod, and then the shrapnel, washer and nut are screwed on.
The working principle of the 1000mm aluminium road warning solar traffic sign:
The working principle of the Narrowing on the right Solar Led Warning sign can be briefly summarized as: during the day, solar panels absorb sunlight, convert solar energy into electrical energy, and store it in energy storage devices. At night, the electrical energy in the energy storage devices is automatically converted into light energy ( Controlled by a photoelectric switch), the outline of the pattern is drawn through the bright light of the LED to convey traffic information.
