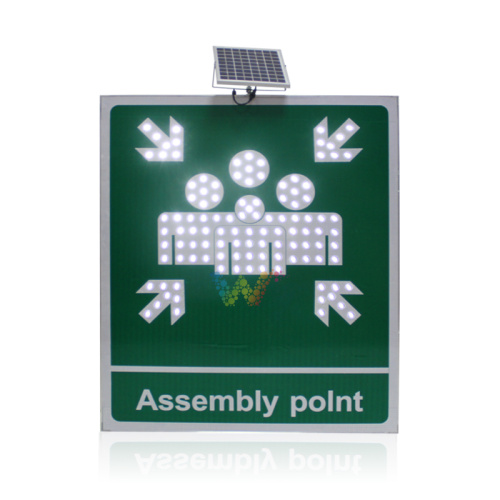

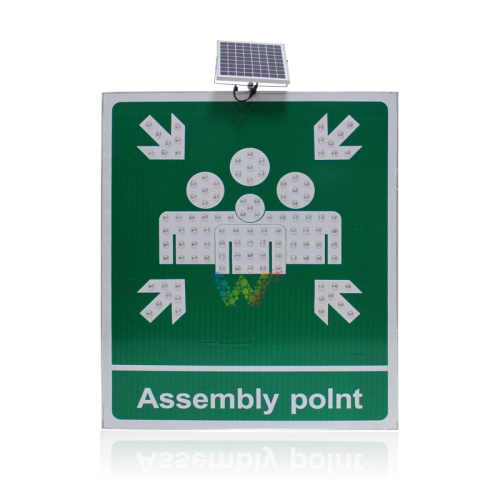

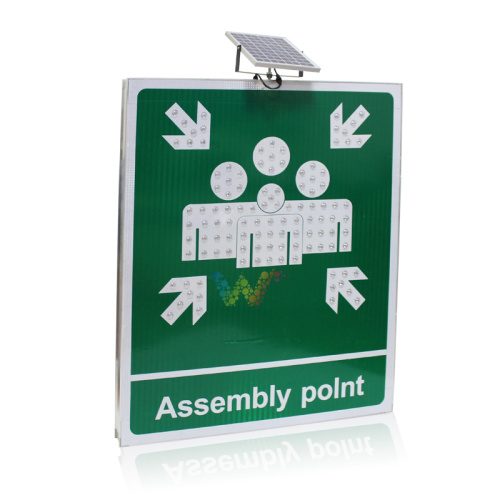

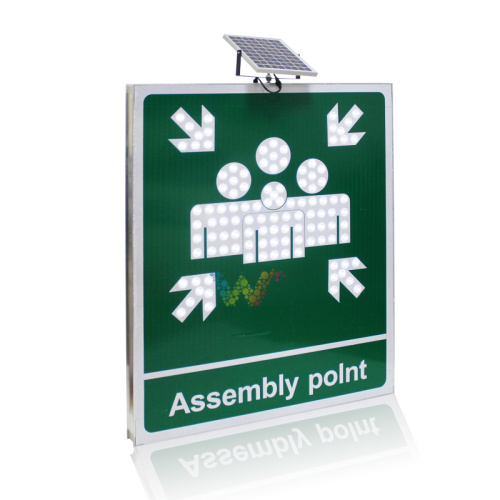

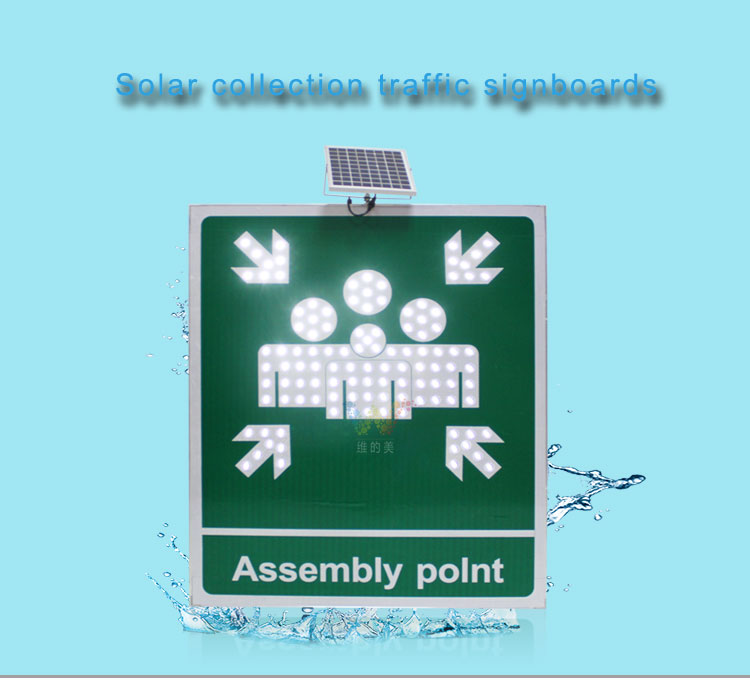

Reflective Road Safety Solar collection traffic sign

Installation for the Reflective Road Safety Solar collection traffic sign

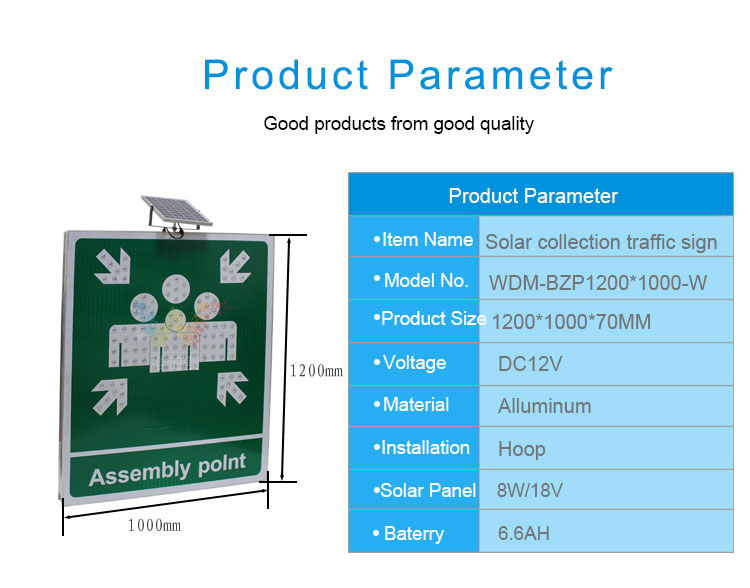

Parameters for the Reflective Road Safety Solar collection traffic sign

Product name: Reflective Road Safety Solar collection traffic sign with lens
Product size: 1200*1000*70MM
Working voltage: DC12V
Number of lamp beads: 123 white
Lamp beads category: Taiwan Epistar chip lamp beads
Working mode: flashing
Lamp color: white
Working temperature: -40℃-60℃

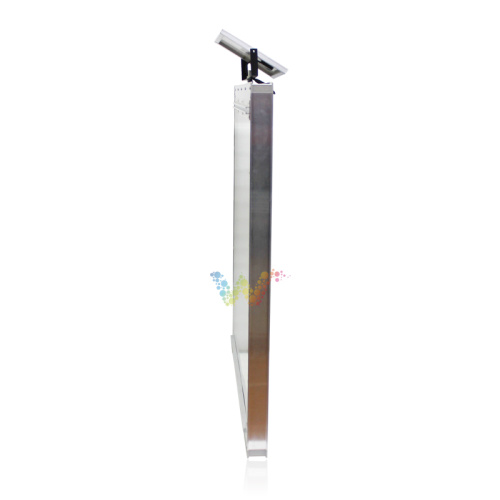

Shell material: aluminum shell
Solar panel: 8W/18V
Visual distance: 1-300M
Service life: 100000H
Lithium battery: 6.6AH
Protection level: IP53
Installation method: hoop installation

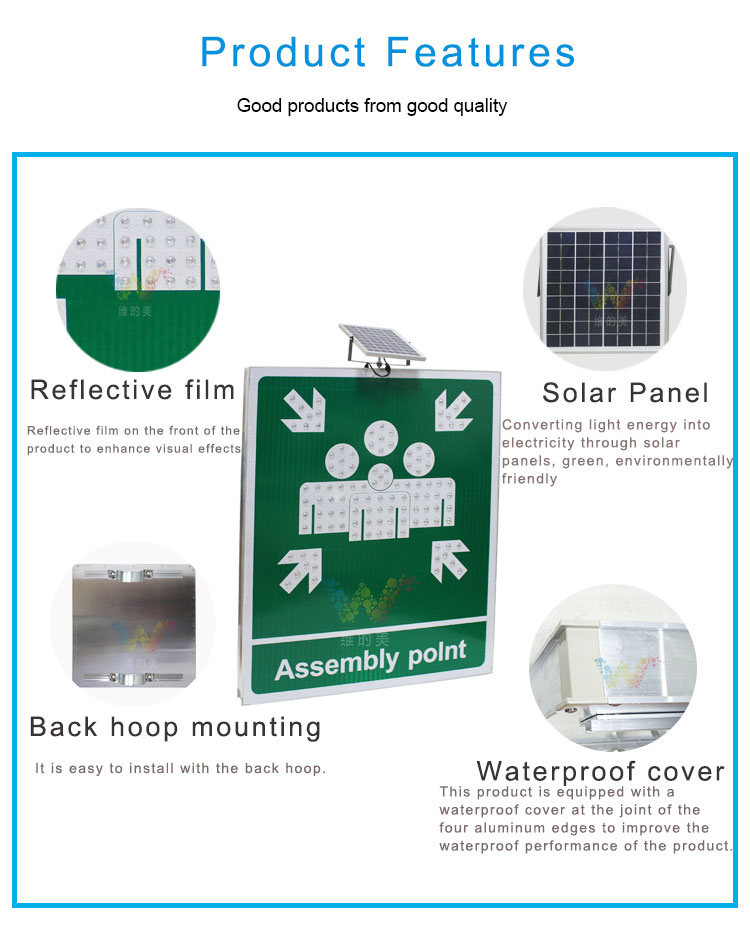

Features of the Reflective Road Safety Solar collection traffic sign:
1. Mainly used in squares, near schools, etc. Using Taiwan Epistar chip lamp beads, ultra-high brightness, concentrated light, very large viewing angle, and good visual effects. The shell is aluminum, which is fully enclosed, all-weather, weatherproof, and has good oxidation resistance. The equipment will not fade or rust during the service life.
2. Reflective film: stick 3M reflective film outside the front display screen of the product to enhance the visual effect.
3. Low power consumption: LED products have low power consumption, and the company thinks of being more low-carbon, environmentally friendly and energy-saving in design;
4. Brightness balance: Equipped with a balanced current circuit and specially designed optical components, the light is particularly uniform;
5. Strict aging: The aging is verified 24 hours before the product is shipped, and the performance is more superior!
6. Protection level: IP53 (in line with the technical standard of the national traffic standard GB14887-2003)
Shenzhen Wide Way Optoelectronics Co., Ltd., a provider and manufacturer of high-quality Videmei traffic lights!

Instructions for use of Reflective Road Safety Solar collection traffic sign:
The solar sign with lens can be set to night mode and 24 hour mode. Two switches are used to control the entire solar collection sign. One is the main switch to control the entire light to not work or turn on at all, and the other switch is the solar light control mode. , The red switch is the master switch, and the black switch is the light control switch. The light control switch means you choose whether it is 12-hour mode or 24-hour mode.

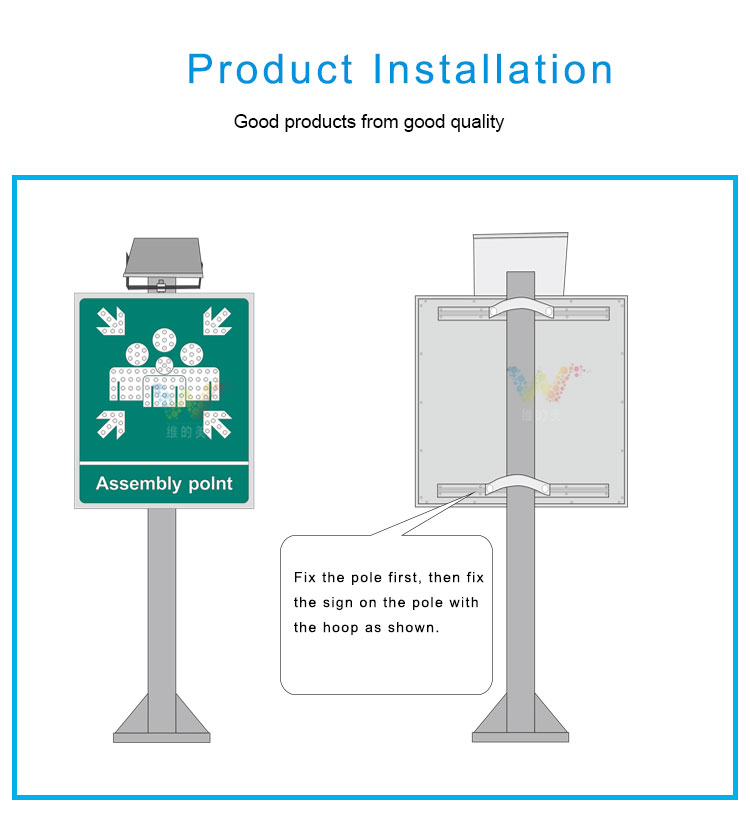

Installation of the Reflective Road Safety Solar collection traffic sign:

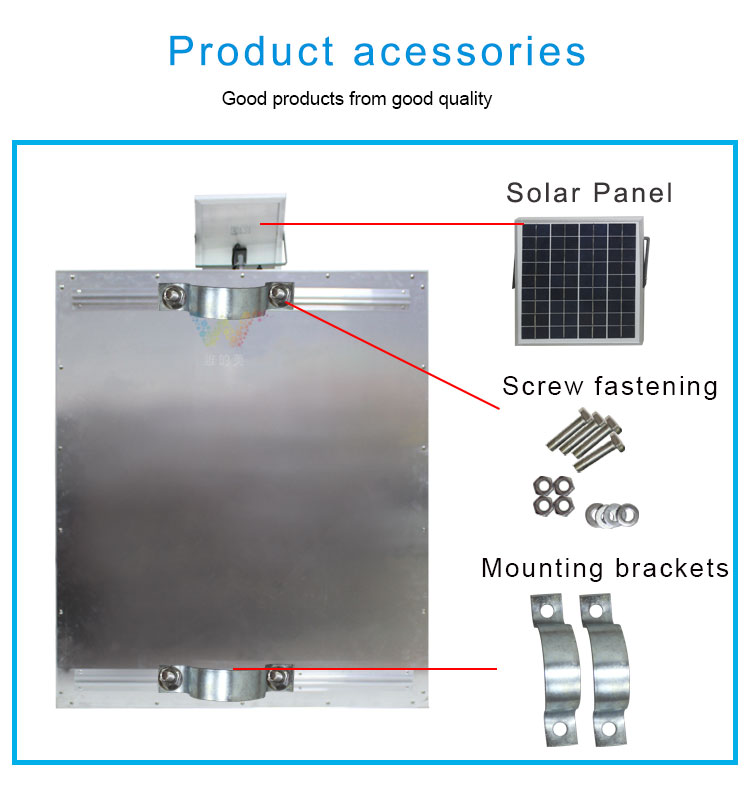

1. This product is simple and convenient to install. It can be installed on the pole with a hoop, and just use two hoops on the pole. Other installation methods can also be customized according to customer requirements.
2. Install the pole first. The pole base has four holes. Fix the pole with screws.
3. To install the solar panel, unscrew one of the nuts and washer on the screw on the anti-collision, put the solar panel into the screw, and fix it with the nut and washer.

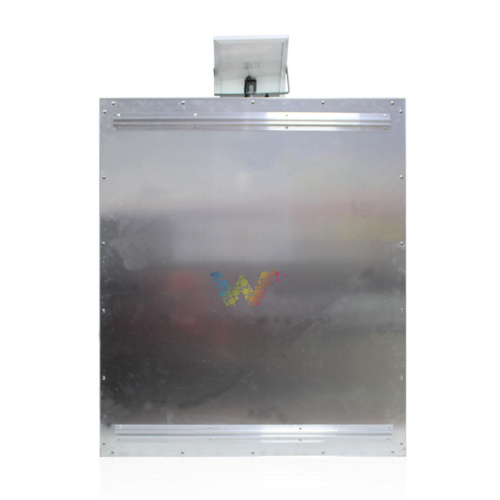

4. Then install the sign board at a suitable position on the pole, pass the M10 screw through the aluminum slot on the back of the product, and then align the hoop around the pole with the screws on the aluminum slot, that is, align the holes at both ends of the hoop Align the screws on both ends respectively, and then screw on the nuts.
5. Fix the hoop in the middle of the aluminum trough and tighten the nuts at both ends.
