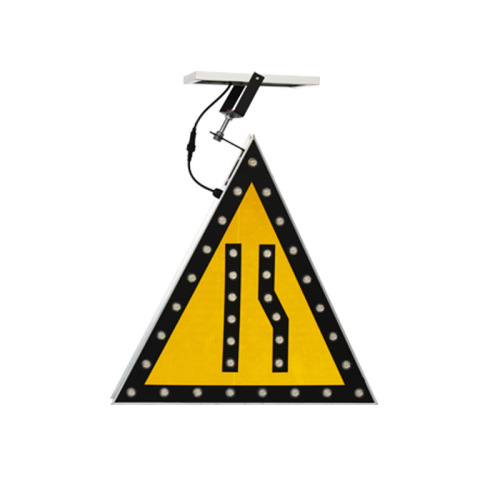

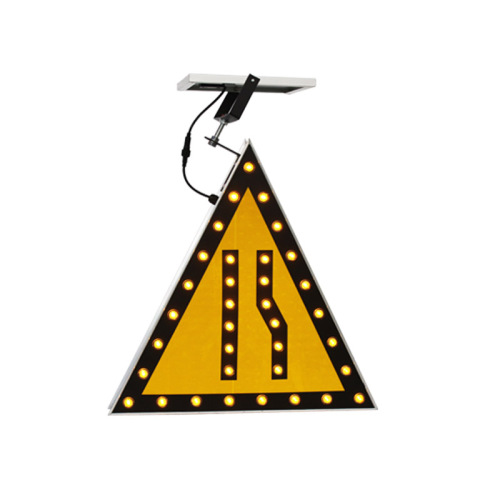

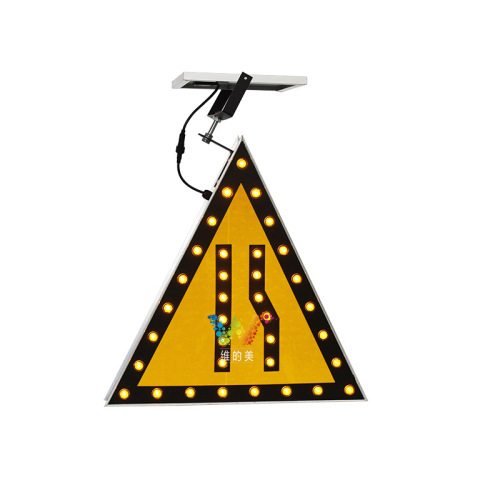

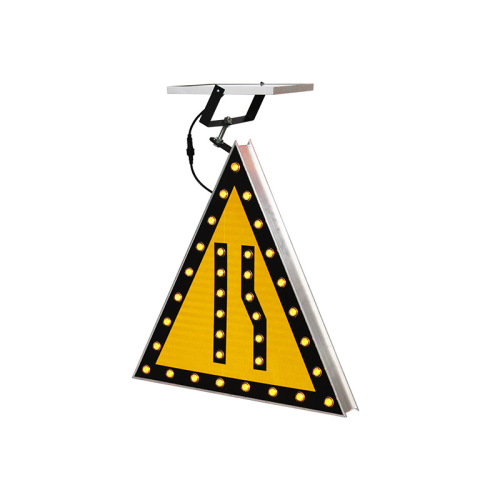

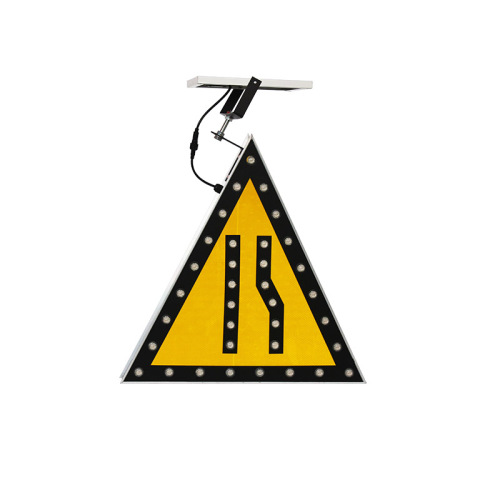

Narrowing on the right Solar Led Warning sign
- Payment Type:
- T/T, Paypal, Money Gram, Western Union
- Incoterm:
- EXW
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | guangdong |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | stock |
| Payment Type: | T/T,Paypal,Money Gram,Western Union |
| Incoterm: | EXW |
| Certificate: | CE/ROHS |
| HS Code: | 8530800000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
Product Description
Product Description
Installation method of Narrowing on the right Solar Led Warning sign:
Solar panel installation:
1. Connect the solar waterproof butt joint with the butt joint of the lamp,
2. Tighten the waterproof nut in the line.
3. Put the solar panel into the lamp,
4. Finally, pass the screw through the hole of the solar panel, install the gasket, and then screw the nut.

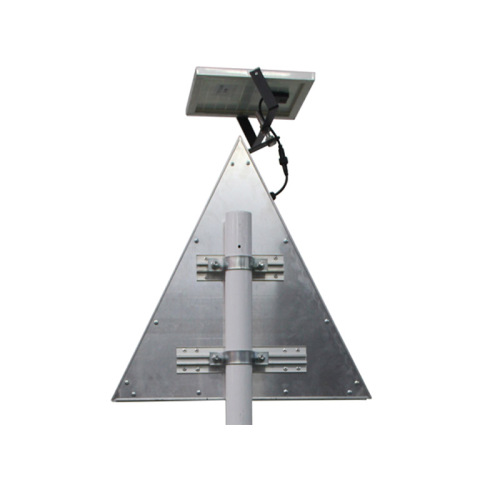

Hoop installation method:
1. Insert the M10 screw through the aluminum slot on the back of the product, and then put the holes at both ends of the 76MM hoop into the screws at both ends, and then screw the nut on.
2. Fix the hoop in the middle of the aluminum trough and tighten the nuts at both ends.

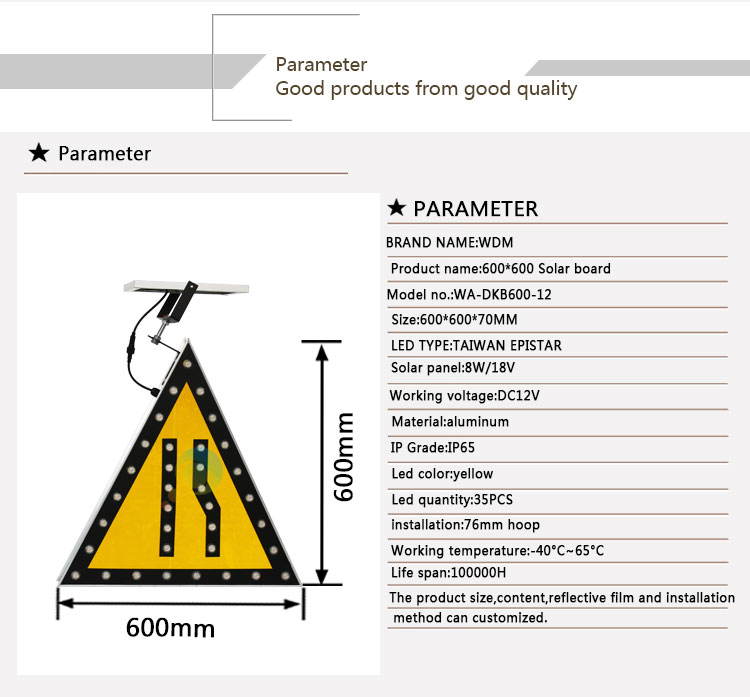

Detailed parameters of the Narrowing on the right Solar Led Warning sign:
1. Product size: 600*600*70MM
2. Lamp bead color: yellow
3. Number of lamp beads: 35
4. Lamp beads category: Taiwan Epistar chip lamp beads
5. Yellow wavelength: 590-595NM
6. Solar panel: 8W/18V
7. Battery: 5AH
8. Shell material: aluminum shell
9. Working voltage: 12V
10. Working temperature: -40℃~60℃
11. Working mode: stroboscopic
12. Protection level: IP65
13. Commonly used hoop installation: 76MM hoop
Features of the Narrowing on the right Solar Led Warning sign:
1. The Narrowing on the right Solar Led Warning sign is mainly used for the narrowing of the lane, and is installed in a sunny place

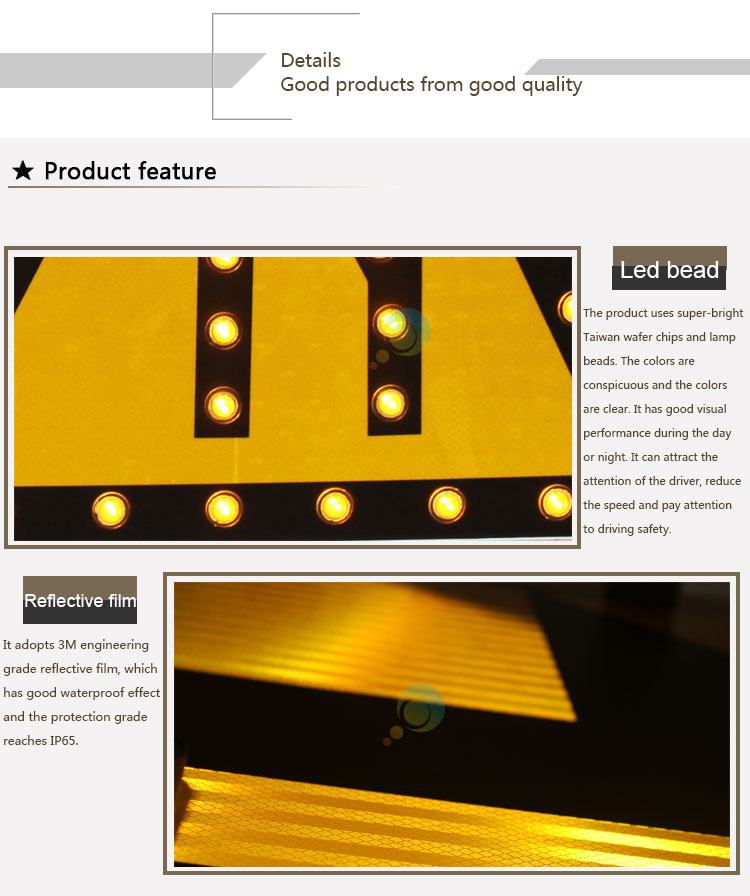

2. The Narrowing on the right Solar Led Warning sign uses Taiwan Epistar chip with our own mold-opening lens, which has longer service life, good stability, high refresh rate, high concentration, and high brightness.
3. The Narrowing on the right Solar Led Warning sign box body adopts self-moulded aluminum plate with reverse hook design. Using inlaid packaging, the packaging is firm. Not only is it beautiful, it also gives the product a very good protection level
4. The Narrowing on the right Solar Led Warning sign uses 8W/18V monocrystalline silicon solar panels, which use solar energy to generate electricity, which is energy-saving and environmentally friendly.
5. There is a power switch and a light control switch at the bottom of the Narrowing on the right Solar Led Warning sign.

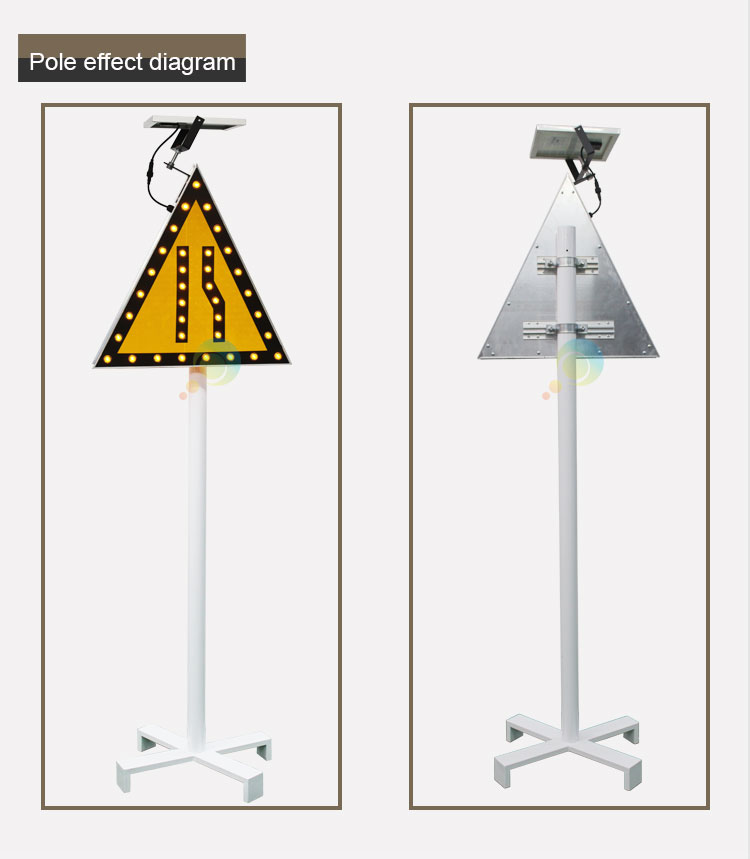

6. The Narrowing on the right Solar Led Warning sign is installed with a hoop on the back, which is very convenient, firm and easy to disassemble.
9. The product size, speed limit sign number, reflective film, lamp bead color and installation method of the Narrowing on the right Solar Led Warning sign can be customized according to customer requirements
The working principle of the Narrowing on the right Solar Led Warning sign:
The working principle of the Narrowing on the right Solar Led Warning sign can be briefly summarized as: during the day, solar panels absorb sunlight, convert solar energy into electrical energy, and store it in energy storage devices. At night, the electrical energy in the energy storage devices is automatically converted into light energy ( Controlled by a photoelectric switch), the outline of the pattern is drawn through the bright light of the LED to convey traffic information.

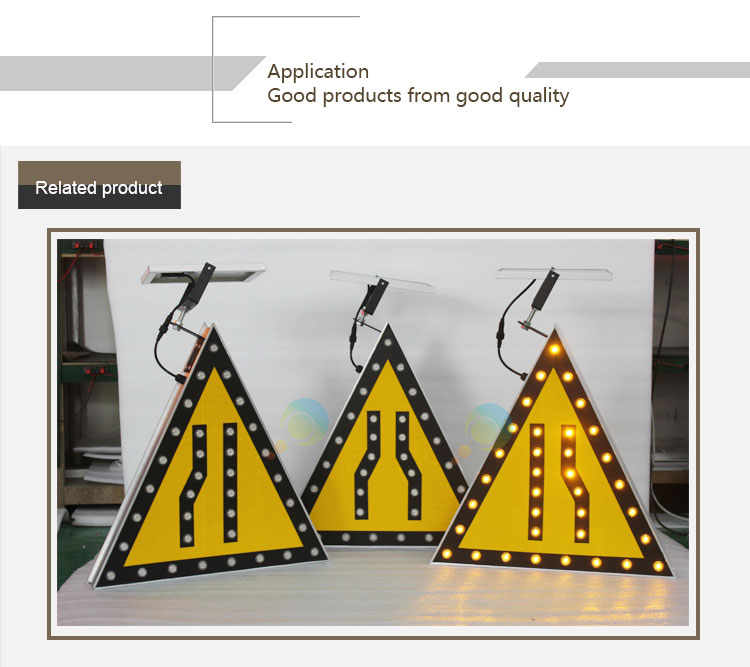

In addition to the Narrowing on the right Solar Led Warning sign side, We also produces other luminous signs:
Traffic Fog Light
Solar Warning Light
Taxi Led Display
Solar Warning Flashing Sign
Solar Safety Signs
Solar Warning Sign
Solar Traffic Road Sign
Solar panel installation:
1. Connect the solar waterproof butt joint with the butt joint of the lamp,
2. Tighten the waterproof nut in the line.
3. Put the solar panel into the lamp,
4. Finally, pass the screw through the hole of the solar panel, install the gasket, and then screw the nut.
Hoop installation method:
1. Insert the M10 screw through the aluminum slot on the back of the product, and then put the holes at both ends of the 76MM hoop into the screws at both ends, and then screw the nut on.
2. Fix the hoop in the middle of the aluminum trough and tighten the nuts at both ends.
Detailed parameters of the Narrowing on the right Solar Led Warning sign:
1. Product size: 600*600*70MM
2. Lamp bead color: yellow
3. Number of lamp beads: 35
4. Lamp beads category: Taiwan Epistar chip lamp beads
5. Yellow wavelength: 590-595NM
6. Solar panel: 8W/18V
7. Battery: 5AH
8. Shell material: aluminum shell
9. Working voltage: 12V
10. Working temperature: -40℃~60℃
11. Working mode: stroboscopic
12. Protection level: IP65
13. Commonly used hoop installation: 76MM hoop
Features of the Narrowing on the right Solar Led Warning sign:
1. The Narrowing on the right Solar Led Warning sign is mainly used for the narrowing of the lane, and is installed in a sunny place
2. The Narrowing on the right Solar Led Warning sign uses Taiwan Epistar chip with our own mold-opening lens, which has longer service life, good stability, high refresh rate, high concentration, and high brightness.
3. The Narrowing on the right Solar Led Warning sign box body adopts self-moulded aluminum plate with reverse hook design. Using inlaid packaging, the packaging is firm. Not only is it beautiful, it also gives the product a very good protection level
4. The Narrowing on the right Solar Led Warning sign uses 8W/18V monocrystalline silicon solar panels, which use solar energy to generate electricity, which is energy-saving and environmentally friendly.
5. There is a power switch and a light control switch at the bottom of the Narrowing on the right Solar Led Warning sign.
6. The Narrowing on the right Solar Led Warning sign is installed with a hoop on the back, which is very convenient, firm and easy to disassemble.
7. For the safety of the Narrowing on the right Solar Led Warning sign, solid rivets are used on the back of the product. The surface adopts flat rivets to make the whole product smooth and smooth.
9. The product size, speed limit sign number, reflective film, lamp bead color and installation method of the Narrowing on the right Solar Led Warning sign can be customized according to customer requirements
The working principle of the Narrowing on the right Solar Led Warning sign:
The working principle of the Narrowing on the right Solar Led Warning sign can be briefly summarized as: during the day, solar panels absorb sunlight, convert solar energy into electrical energy, and store it in energy storage devices. At night, the electrical energy in the energy storage devices is automatically converted into light energy ( Controlled by a photoelectric switch), the outline of the pattern is drawn through the bright light of the LED to convey traffic information.
In addition to the Narrowing on the right Solar Led Warning sign side, We also produces other luminous signs:
Traffic Fog Light
Solar Warning Light
Taxi Led Display
Solar Warning Flashing Sign
Solar Safety Signs
Solar Warning Sign
Solar Traffic Road Sign
