100mm dc12v red green traffic light module
- Payment Type:
- T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- EXW
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air, By express
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | guangdong |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | stock |
| Payment Type: | T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | EXW |
| Certificate: | CE/ROHS |
| HS Code: | 8530800000 |
| Transportation: | Ocean,Land,Air,By express |
| Port: | Shenzhen |
The process flow of the 100mm dc12v red green traffic light module
The process flow of the traffic signal lamp tube plug-in lamp beads, wave soldering information lamp board aging test glue filling, wick aging test, assembly and finished product test window box shipment. Traffic signal lights, lamp tubes, and lamp shades are made of polymer materials, waterproof, sun-proof, and dust-proof, and the light board is firmly protected with waterproof strips. The overall performance is good, the color is eye-catching, and the color is distinct, whether it is day or night. Visibility, which can well attract pedestrians’ attention, has a waterproof interface, which effectively prevents rainwater from entering the interior of the lamp to prevent damage to its internal electronic components

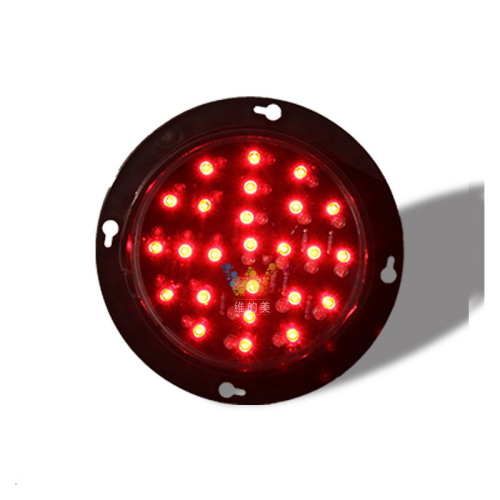

high brightness 100mm dc12v red green traffic light module
1. Parameter details of high brightness 100mm LED Traffic Light Module:
Product model: WDM-C100 is mainly used in schools, youth palaces, playgrounds, children's playgrounds
1. Product size: 135*135*70mm
2. Luminous diameter: 100MM
3. Lamp bead category: Taiwan Epistar chip lamp bead
4. Number of lamp beads: 40pcs
5. Lamp beads color: red yellow blue green white
6. Red wavelength: 620-625NM
7. Yellow wavelength: 590-595NM
8. Blue wavelength: 470-475NM
9. Green wavelength: 500-505NM (blue-green) 520-525NM (emerald green)
10. White brightness: 18900-22600MCD
11. Rated voltage: DC12V/24V
12. Protection grade: IP68
13. Rated power: ≤ 5W
14. Shell material: PC
15. Working temperature: -40℃~65℃
16. Service life: 100000H
Features of 100mm dc12v red green traffic light module
1. The 100mm LED Traffic Light Module is one of the components of the 100-type small traffic lights.
2. The 100mm LED Traffic Light Module adopts Taiwan Epistar chip lamp beads, high brightness, high refresh rate, and long service life.
3. The back of 100mm LED Traffic Light Module is fully potted with three anti-paints, and the waterproof grade reaches IP68.
4.100mm LED Traffic Light Module with matching sunshade with independent mold opening, unique appearance and beautiful shape.
This is a new and exclusive product of our company. It can be used in driving school to simulate real traffic lights.This can be also used as your indoor or outdoor decorations and a small gift for your lovely children!
MODULES TO SUITS 100mm dc12v red green traffic light module FEATURES
Simple to replace and install in existing 100mm Aspect Traffic lights.
12-24VDC or 85-265VAC voltage rated.
Highly durable poly-carbonate housing, high-brightness led beads.
Double lens for even light distribution,waterproof material,good effect.
3 Year Replacement Warranty.
purpose of 100mm dc12v red green traffic light module
Used for make of the traffic arrow board
Decoration for restaurants, hotels, clothing stores, villa areas, etc.
Aailiable at the warehouse entrance and so on.
In addition to the 100mm dc12v red green traffic light module , Shenzhen Wide Way Optoelectronics Co., Ltd also produces other types of traffic lights.
1. 100mm pedestrian traffic lights
2. 100mm traffic light
3. Solar traffic light
4. traffic led arrow board, etc.
