Stainless Steel 100mm Mini Traffic Signal Light
The characteristics of Stainless Steel 100mm Mini Traffic Signal Light:
1. The Stainless Steel 100mm Mini Traffic Signal Light are composed of 100-type lamp tubes with independent mold opening, which have novel appearance and unique shape.
2. The Stainless Steel 100mm Mini Traffic Signal Light use Taiwan Epistar chip beads, which are eye-catching and distinct in color.
3. The bottom outlet of the Stainless Steel 100mm Mini Traffic Signal Light uses waterproof connectors, and the protection level reaches IP53.
4. The Stainless Steel 100mm Mini Traffic Signal Light are installed with L-shaped brackets, which is very convenient for assembly.
The basic parameters of Stainless Steel 100mm Mini Traffic Signal Light:
Product model: WDM-JD100-3-RYG-T is mainly used in parking lots, factories, schools, kindergartens, etc.1. Product size: 500*190*60MM
2. Lamp bead color: red yellow green
3. Lamp beads category: Taiwan Epistar chip lamp beads
4. Luminous diameter: 100MM
5. Number of lamp beads: 40 pieces each for red, yellow and green
6. Red wavelength: 620-625NM
7. Yellow wavelength: 590-595NM
8. Green wavelength: 500-505NM (blue-green) 520-525NM (emerald green)
9. Installation method: horizontal or vertical
10. Shell material: electrostatic spraying, sheet metal chassis
11. Working voltage: AC85V-265V a small amount of DC12V/24V
12. Working temperature: -40℃~65℃
13. Protection grade: IP53
14. Light angle: 30°
15. Visible distance: ≥1000M
16. Service life: 100000H
17. Rated power: ≤ 5W

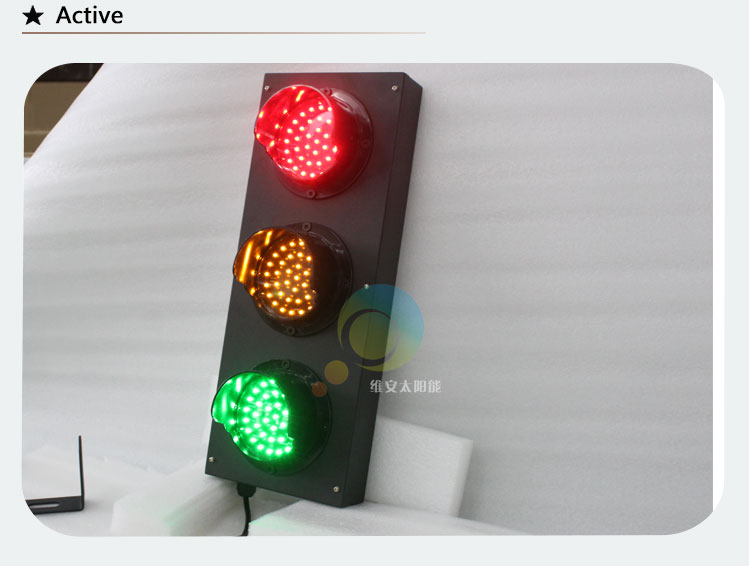

The physical picture of Stainless Steel 100mm Mini Traffic Signal Light:
Installation instructions for Stainless Steel 100mm Mini Traffic Signal Light:
1. Bracket installation method:
(1) Align the hole position of the L-shaped bracket with the hole position of M12 on the side
(2) Put the gasket into the stud of M12
(3) Pass the stud through the L-shaped bracket
(4) Finally, tighten the screws. (as the picture shows)
Fifth, the wiring instructions of Stainless Steel 100mm Mini Traffic Signal Light:
1. Wiring DC12V/24V:
(1) Red is positive
(2) The red and black wire is the negative of the red light
(3) Green is the negative electrode of green light
(4) Yellow is the negative of yellow light
2. Wiring 220V:
(1) Black is the public zero line
(2) Red is red light fire line
(3) Green is green light fire line
(4) Yellow is yellow light fire line
