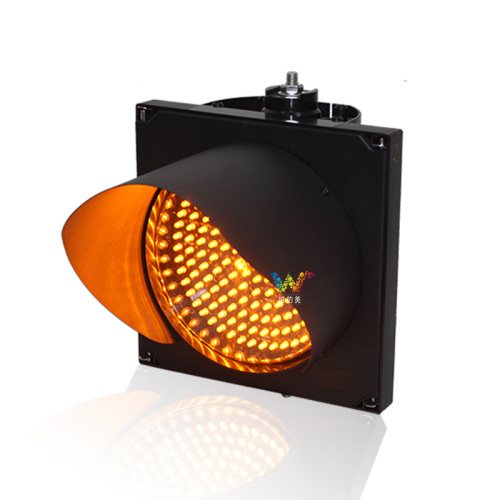

250mm fog yellow LED traffic flashing warning light
- Payment Type:
- T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- EXW
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | guangdong |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | stock |
| Payment Type: | T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | EXW |
| Certificate: | CE/ROHS |
| HS Code: | 8530800000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
Product Description
Product Description
250mm fog yellow LED traffic flashing warning light
1. The parameter list of 250mm fog yellow LED traffic flashing warning light:
1. Product size: 250*250*100M
2. Luminous diameter: 200MM
3. Number of lamp beads: 50 yellow
4. Lamp beads category: Taiwan Epistar chip lamp beads
5. Yellow wavelength: 590-595NM
6. Service life: 100000H
7. Shell material: electrostatic spraying, sheet metal chassis
8. Working temperature: -40℃-65℃
9. Protection level: IP65
10. Working voltage: AC85V-265V, a small amount of DC12V/24V
11. Rated power: 15W
The 250mm fog yellow LED traffic flashing warning light adopts Taiwan Epistar chip lamp beads, high brightness, high refresh rate and long service life.
The 250mm fog yellow LED traffic flashing warning light has an outlet hole at the bottom, which is not only convenient for outlet, but also has a good waterproof effect.
The 250mm fog yellow LED traffic flashing warning light adopts an integrated box, which makes the product have a better waterproof effect
Installation method of the base:
1. Align the holes at both ends of the base with the holes at the bottom of the lamp
2. Put the M12 shrapnel and gasket into the M12 screw respectively
3. The screws pass through the base and are screwed into the holes at the bottom of the lamp.
4. In order to prevent shaking and damaging the lamp, it must be tightened (see picture)
5. Finally, put the entire lamp part into the pole (the line needs to pass through the pole)
4. Wiring mode of 200-type iron-clad fog lamp:
Connect to DC12C/24V:
1. Red wire-12V/24V positive
2. Black wire-12V/24V negative pole
3. Wiring DC12V/24V
In addition to the 250mm fog yellow LED traffic flashing warning light, Shenzhen Wide Way Optoelectronics Co., Ltd. also produces the following other types of traffic lights;
Solar Road Stud Lights
Outdoor Led Display Board
Solar Traffic Fog Light
125mm Traffic Light
Pedestrian Traffic Light
Mini Traffic Light Module
1. The parameter list of 250mm fog yellow LED traffic flashing warning light:
1. Product size: 250*250*100M
2. Luminous diameter: 200MM
3. Number of lamp beads: 50 yellow
4. Lamp beads category: Taiwan Epistar chip lamp beads
5. Yellow wavelength: 590-595NM
6. Service life: 100000H
7. Shell material: electrostatic spraying, sheet metal chassis
8. Working temperature: -40℃-65℃
9. Protection level: IP65
10. Working voltage: AC85V-265V, a small amount of DC12V/24V
11. Rated power: 15W
12. Visual distance: ≥1000M
The 250mm fog yellow LED traffic flashing warning light adopts Taiwan Epistar chip lamp beads, high brightness, high refresh rate and long service life.
The 250mm fog yellow LED traffic flashing warning light has an outlet hole at the bottom, which is not only convenient for outlet, but also has a good waterproof effect.
The 250mm fog yellow LED traffic flashing warning light adopts an integrated box, which makes the product have a better waterproof effect
The back of the 250mm fog yellow LED traffic flashing warning light is equipped with a key switch, which facilitates the inspection and maintenance of the product.
Installation method of the base:
1. Align the holes at both ends of the base with the holes at the bottom of the lamp
2. Put the M12 shrapnel and gasket into the M12 screw respectively
3. The screws pass through the base and are screwed into the holes at the bottom of the lamp.
4. In order to prevent shaking and damaging the lamp, it must be tightened (see picture)
5. Finally, put the entire lamp part into the pole (the line needs to pass through the pole)
4. Wiring mode of 200-type iron-clad fog lamp:
Connect to DC12C/24V:
1. Red wire-12V/24V positive
2. Black wire-12V/24V negative pole
3. Wiring DC12V/24V
In addition to the 250mm fog yellow LED traffic flashing warning light, Shenzhen Wide Way Optoelectronics Co., Ltd. also produces the following other types of traffic lights;
Solar Road Stud Lights
Outdoor Led Display Board
Solar Traffic Fog Light
125mm Traffic Light
Pedestrian Traffic Light
Mini Traffic Light Module
