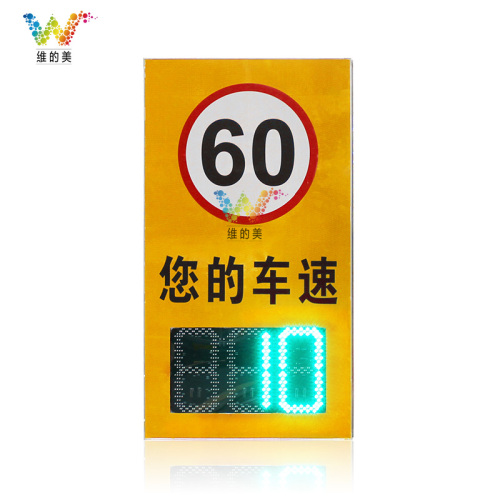

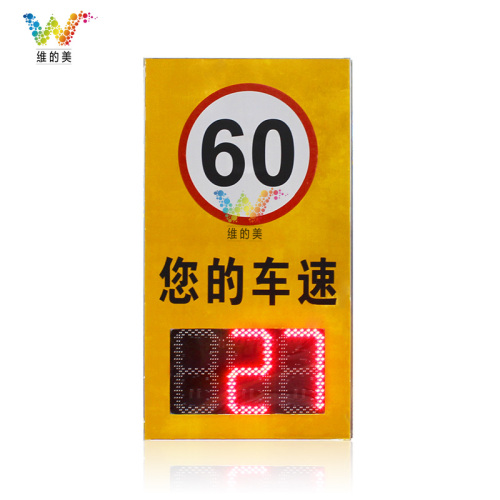

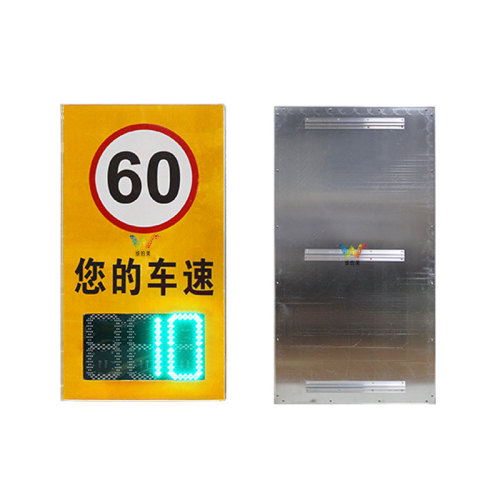

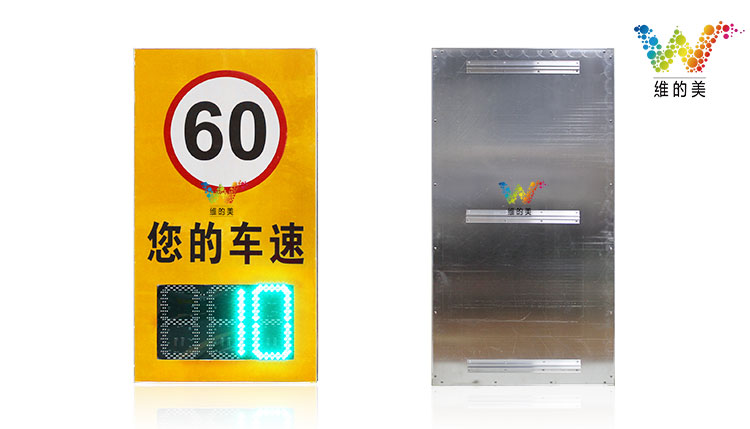

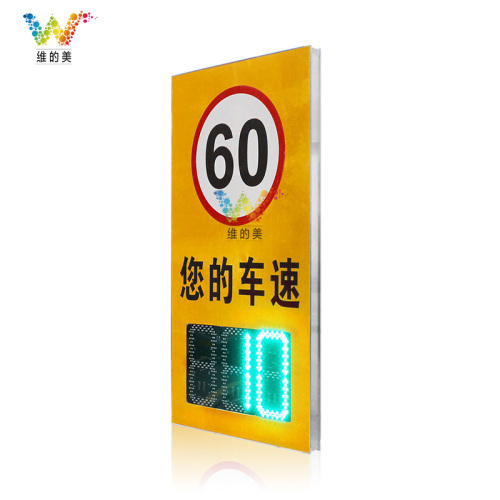

led Radar traffic speed limit sign board
- Payment Type:
- T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- EXW
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | guangdong |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | stock |
| Payment Type: | T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | EXW |
| Certificate: | CE/ROHS |
| HS Code: | 8530800000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
Product Description
Product Description
The principle of the led Radar traffic speed limit sign board:
The led Radar traffic speed limit sign board is mainly uses the principle of Doppler Effect: when the target approaches the radar antenna, the reflected signal frequency will be higher than the transmitter frequency; conversely, when the target moves away from the antenna, the reflected signal frequency Will be lower than the transmitter frequency. In this way, the relative speed between the target and the radar can be calculated by changing the frequency value. It has been widely used in police speeding tests and other industries.
Parameters of the led Radar traffic speed limit sign board:
Product model: WDM-LDCS-02
1. Product size: 600*900MM display size: 360*460MM
2. Lamp bead color: red and green
3. Lamp beads category: Taiwan Epistar chip lamp beads
4. Red wavelength: 620-625NM
5. Green wavelength: 520-525NM (emerald green)
6. Installation method: hoop installation
7. Shell material: aluminum shell
8. Working voltage: 12V
9. Working temperature: -40℃~65℃
11. Beam angle: 30°
12. Service life: 100000H
13. Solar panel: 60W
14. Battery: 55AH (lithium battery 50AH)
15. Display mode: 2 digits, safe speed is a green number, overspeed is a red number
16. Scope of application: urban fast lanes, highways, junctions, etc.
17. Applicable lanes: 3-4 lanes can be used at the same time
Features of the led Radar traffic speed limit sign board:
1. When the vehicle enters the speed measurement screen area of the led Radar traffic speed limit sign board (approximately within 600m of the front of the sign), the microwave radar will automatically detect the speed of the vehicle, and it will be displayed on the LED display of the solar energy storage radar speed measurement screen. Displays the current speed and promptly reminds the driver to reduce the driving speed, thereby effectively reducing the occurrence of road traffic accidents caused by speeding.

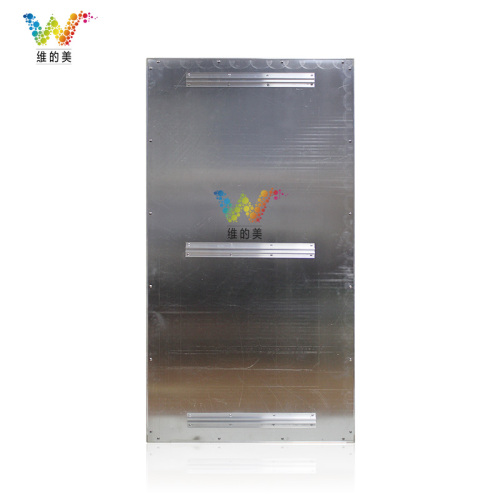

2. The outer box of the led Radar traffic speed limit sign board adopts an integrated chassis, which is beautiful in design and strong in waterproof effect.
3. The led Radar traffic speed limit sign board adopts super bright lamp beads, the colors are matched and the colors are distinct.

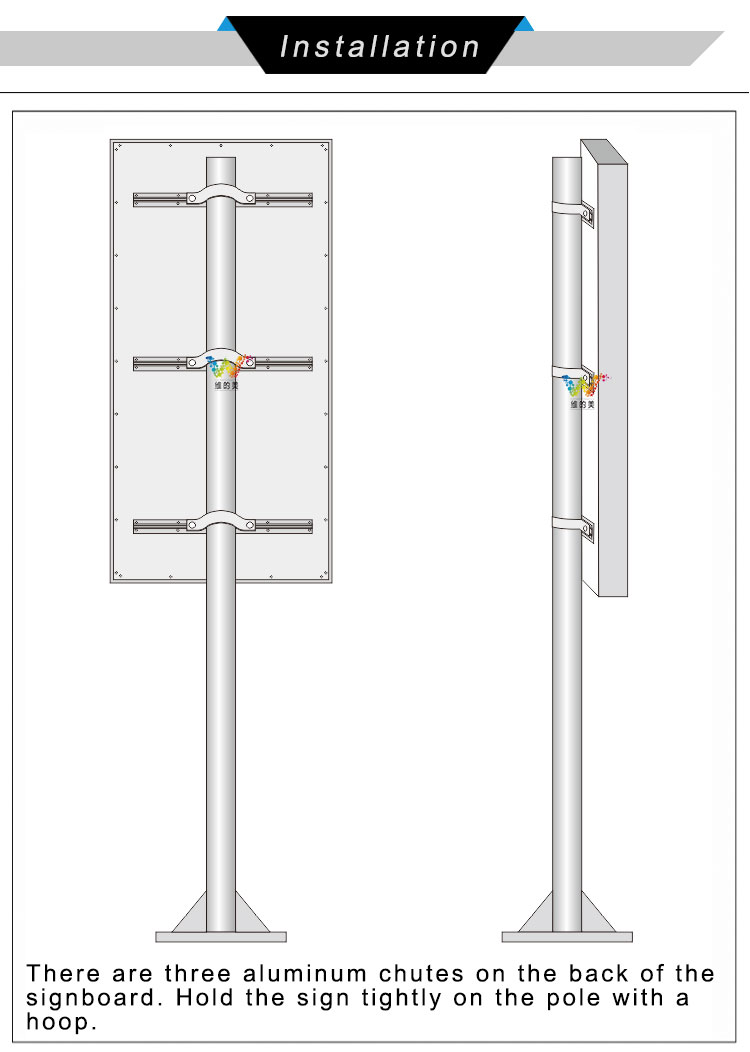

4. The led Radar traffic speed limit sign board adopts hoop installation, which is simple and convenient to install.
5. The led Radar traffic speed limit sign board is powered by solar panels, which is energy-saving, environmentally friendly and easy to use.
6. The led Radar traffic speed limit sign board can be connected to a battery or a lithium battery.
7. The led Radar traffic speed limit sign board uses the audio debugging software designed exclusively by our company.
Manufacturers of the led Radar traffic speed limit sign board:
Shenzhen Wide Way Optoelectronics Co., Ltd. is a professional manufacturer of led Radar traffic speed limit sign board. The company produces solar radar speed measurement screens of different styles and models, such as: two-digit radar speed screen, three-digit radar speed screen, Export radar speed screen, etc.
In addition, the company has fully automatic AI equipment, and all transportation products are of high quality, good quality, and fast delivery. Welcome to inquire about the national highway solar radar speed limit card information, and welcome new and old customers to visit our company at any time, communicate.
In addition to the led Radar traffic speed limit sign board, We also produces other solar radar speed measurement screens:
Solar Guidance Signs
Solar Power Guidance Traffic Road Sign
Solar Led Guidance Sign
Highway Speed Limit Signs
Speed Limit Signs
Led Speed Radar Sign
