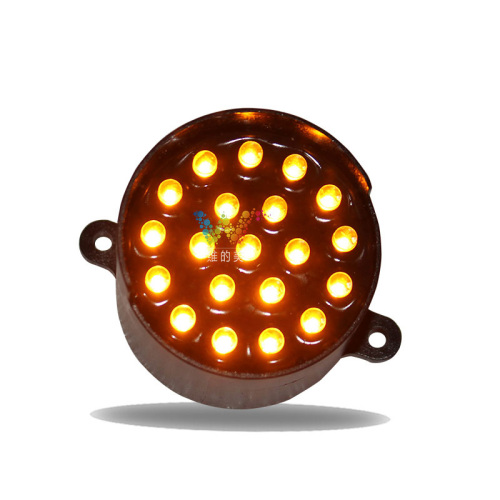

C52 model signal 3 Colors Available LED Arrow Board Sign Pixel Cluster Module
LED Arrow Board Sign Pixel Cluster Module
Pixel Cluster Module,Arrow Board Pixel Cluster,Arrow Board Sign,LED Arrow Board Sign
There are various styles of pixel tubes, which are mainly used in canopy signal lights, spelling, billboards, guidance signs, etc.
C52 model signal 3 Colors Available LED Arrow Board Sign Pixel Cluster Module
Parameters for the 52mm LED Arrow Board Sign Pixel Cluster Module
Product size: 52mm
Product installation positioning column: single column and double column
Product voltage: 12V, or according to customers' requirements
1: Technical parameters
1. Input rated voltage: 6V ～ 12V
2. Input power: 0.24W
3. Luminous intensity: ≥400cd, angle ≥30 °
4. Luminescence chromatogram: red 620nm, yellow 590nm, green 523nm
5. Working temperature: -40∽ + 80 ℃
6. Enclosure protection level: dustproof IP5X waterproof IPX3
8. Electrical parameters: Insulation resistance ≥500M∏; Withstand voltage 1500VAC
9, light source life ≥100,000 hours, visible distance ≥100m;
10. Luminous surface size: 52mm
11. Enclosure protection level: IP53, temperature resistance -40 ℃ --75 ℃
Design requirements for the 52mm LED Arrow Board Sign Pixel Cluster Module
1. Standard: In accordance with GB14887-2003 standard.
2. Appearance design: The appearance is specially designed for LED light source, the structure is ultra-thin and humane, the appearance is beautiful, the technology is fine, and it is convenient for various combinations to be installed.
3. Light-transmitting design: The outer surface of the light-transmitting lens is designed with an inclined surface to prevent dust accumulation.
4. Shell material: The shell is made of die-cast aluminum or polycarbonate (PC) material and silicone rubber seals. It has the characteristics of dustproof, waterproof, flame retardant, anti-aging and long service life.
5, light source: the light source uses imported wafer chip ultra-high brightness (LED), with strong brightness, making it easy to identify. And has a long life and good energy saving effect
Our company specializes in the design, production and sales of LED pixel cluster series, from 15mm to 52mm of various square and round, can be set according to customer design needs LED arrangement;
Main material:
1.LED: Yellow LED uses Taiwan 12mil chip, single LED brightness is greater than 2500mcd, angle is 30 degrees;
2. Housing: PC plastic housing;
3. Glue: use high viscosity insulation glue
4. Protection level: waterproof and dustproof, protection level is greater than IP68;
5. Wire: The length and color of the wire can be selected according to customer requirements;
There are various styles of pixel tubes, which are mainly used in canopy signal lights, spelling, billboards, guidance signs, etc. Welcome to inquire, sample design and production.
C26 pixel tube
S28 pixel tube
Directional pixel tube
Customized pixel tube
