toll-station Etc lane customized LED Fee screen display

toll-station Etc lane customized LED Fee screen display

Get Latest Price

Payment Type:: T/T, D/P, Paypal, Money Gram, Western Union

Incoterm:: EXW

Delivery Time:: 5 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	guangdong
Productivity:	50000
Supply Ability:	stock
Payment Type:	T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	EXW
Certificate:	CE/ROHS
HS Code:	8530800000
Transportation:	Ocean,Land,Air
Port:	Shenzhen

Product Description

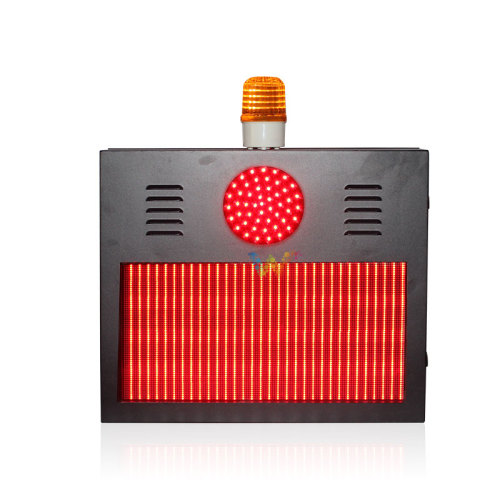

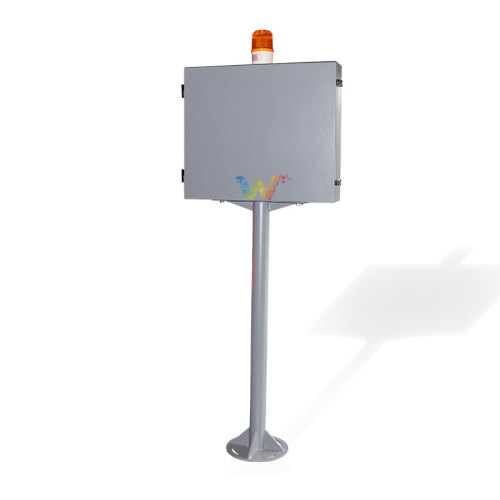

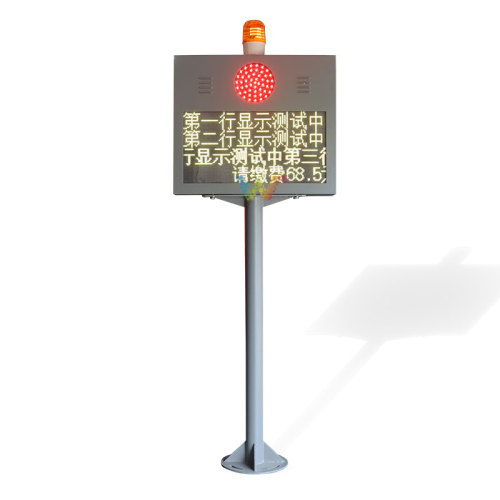

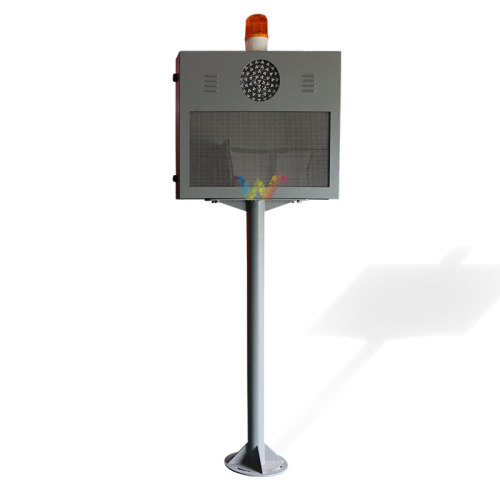

Product display of P3.75 toll-station Etc lane customized LED Fee screen display with alarm:
LED Fee screen display_01

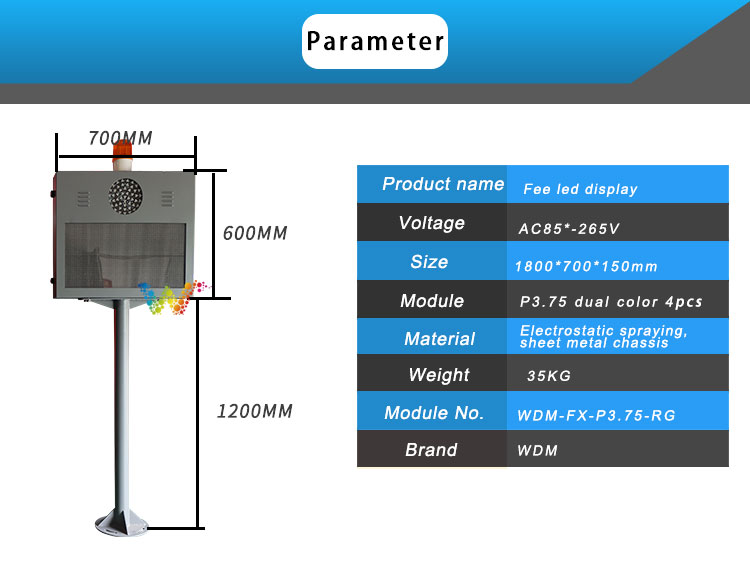

P3.75 toll-station Etc lane customized LED Fee screen display with alarm parameter details:
Product name: 304 stainless steel fee amount display
Product model: WDM-FEXS-RG
Service life: 100000H
Total product height: 1700MM
Display size: 912*456MM
Shell material: 304 stainless steel
Number of modules: 9 P3.75 modules
Working temperature: -40℃-65℃
Red wavelength: 620-625NM
System software: asynchronous synchronous system
Best viewing distance: 20-1500M
Green wavelength: 500-505NM
Resolution: 192*96 points
Point spacing: 4.75MM
Service life: 100000H
Working voltage: AC85-265V
Communication interface: RS232 network port

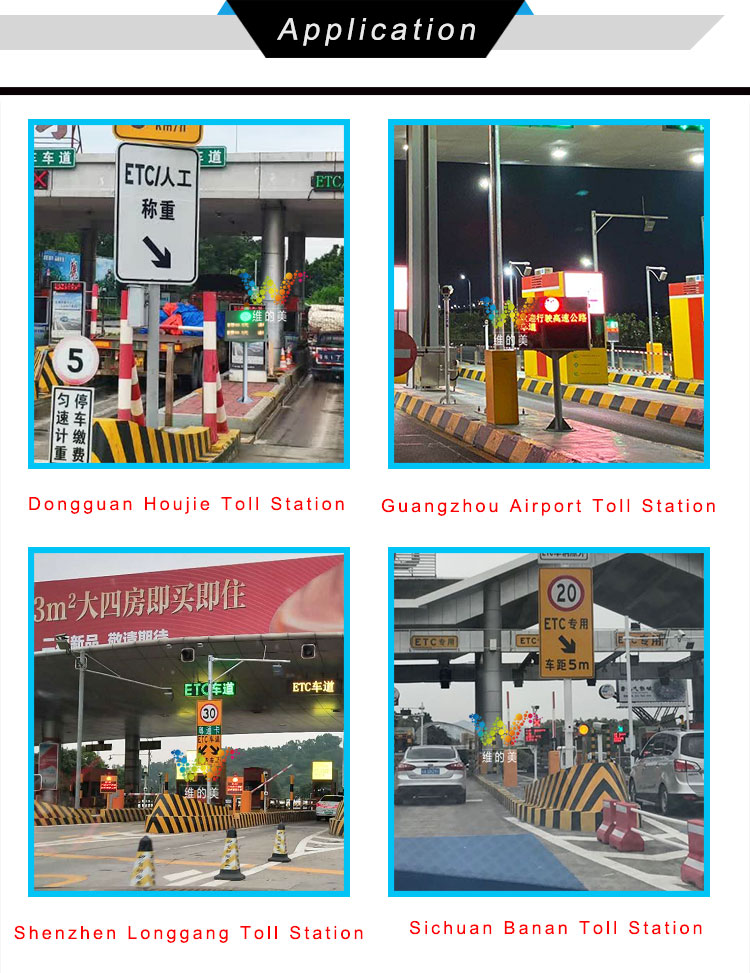

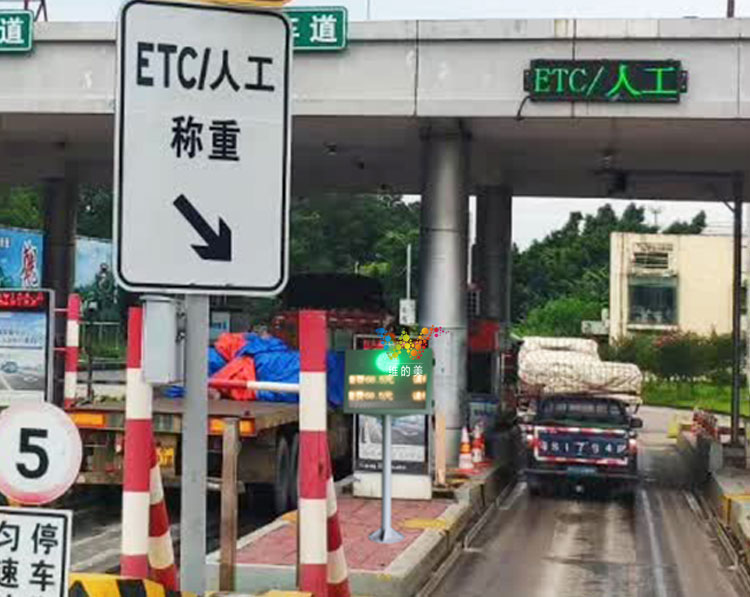

Applicable venue: toll station

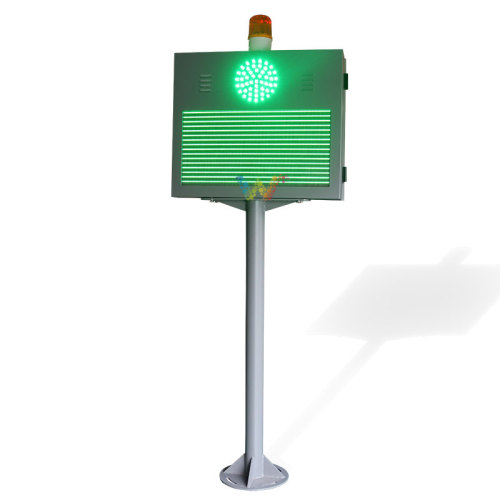

LED Fee screen display_02

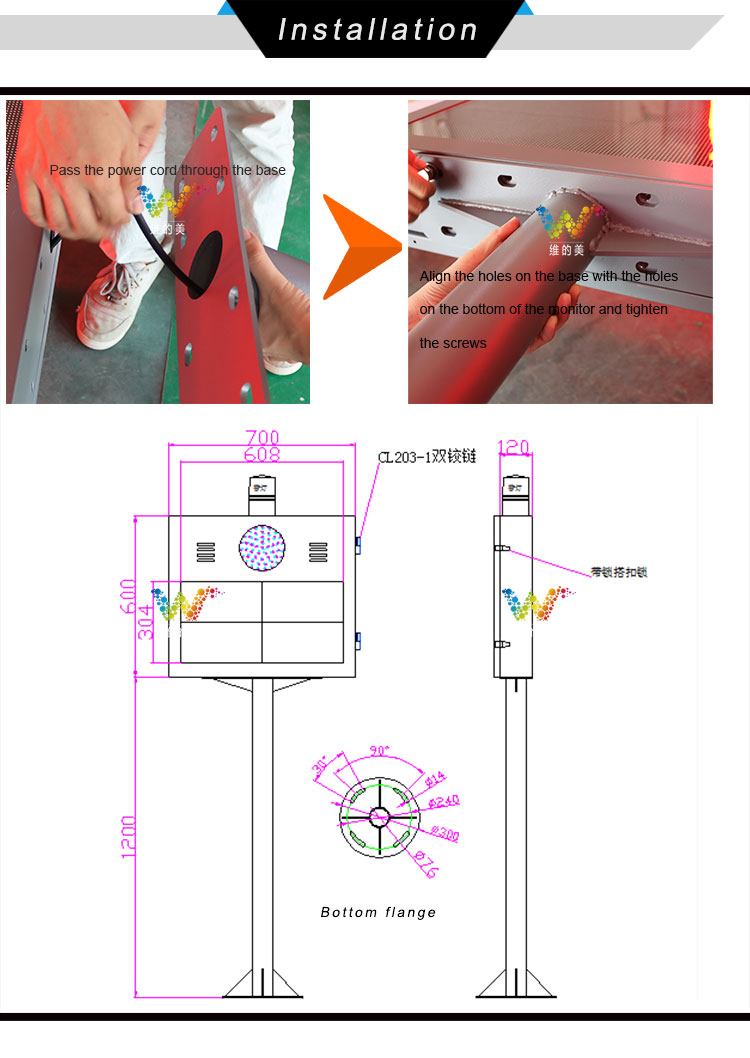

Installation method of P3.75 toll-station Etc lane customized LED Fee screen display with alarm:
LED Fee screen display_03

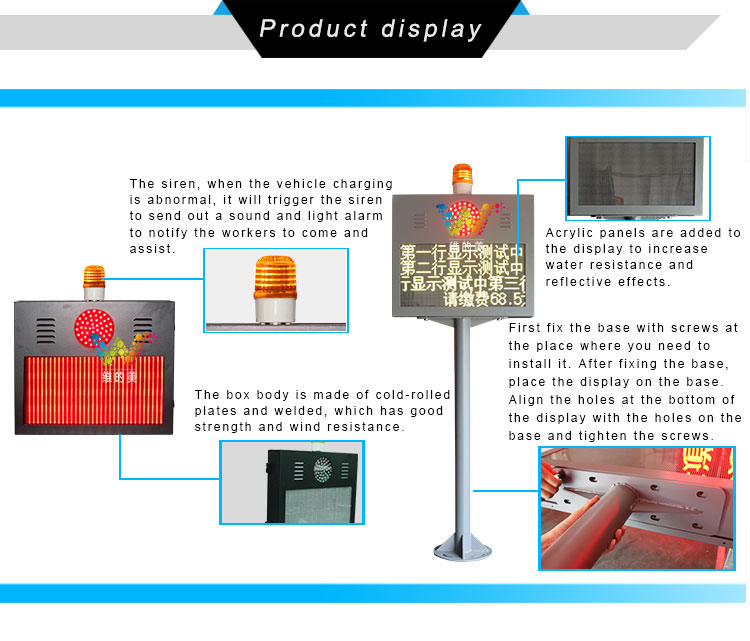

Features of P3.75 toll-station Etc lane customized LED Fee screen display with alarm:

1.The siren, when the vehicle charging is abnormal, it will trigger the siren to send out a sound and light alarm to notify the workers to come and assist.
2.Acrylic panels are added to the display to increase water resistance and reflective effects.
3.The box body is made of cold-rolled plates and welded, which has good strength and wind resistance.
4.First fix the base with screws at the place where you need to install it. After fixing the base, place the display on the base. Align the holes at the bottom of the display with the holes on the base and tighten the screws.

LED Fee screen display_04

The installation of the P3.75 toll-station Etc lane customized LED Fee screen display with alarm is very simple. First fix the base with screws to the place where you need to install. After fixing the base, put the display on the base. The holes at the bottom of the display are aligned with the holes on the base. Just tighten the screws. The specific steps are as follows:

(1) Put the chassis on the support frame, align the screw holes, pay attention to the power cord through the outlet hole, to the bottom of the support frame;
(2) Use 6 M12*30 stainless steel screws to fix the chassis and the support frame; fix the bottom with 4 screws on the ground.

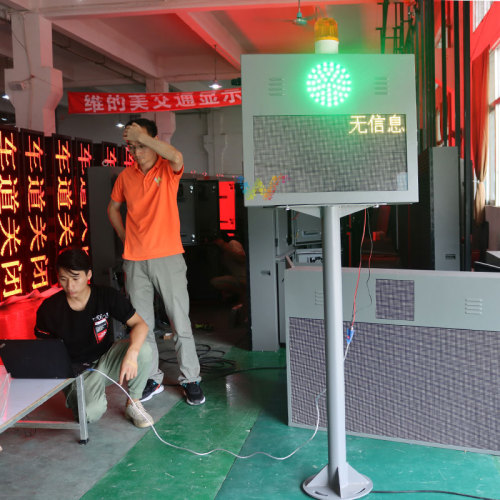

P3.75 toll-station Etc lane customized LED Fee screen display with alarm is aging in batch:
LED Fee screen display_05

In addition to the P3.75 toll-station Etc lane customized LED Fee screen display with alarm, We also produces other traffic lights:
Toll Station Led Display
Highway Led Display
Digital Display Board
Led Display Outdoor
Taxi Top Led Display
Traffic Led Display
Full Color Led Display
LED Fee screen display_06
