smart zebra crossing luminous aluminium led road stud
- Payment Type:
- T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CIF, EXW
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | guangdong |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | stock |
| Payment Type: | T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | CE/ROHS |
| HS Code: | 8530800000 |
| Transportation: | Ocean,Land |
| Port: | Shenzhen |

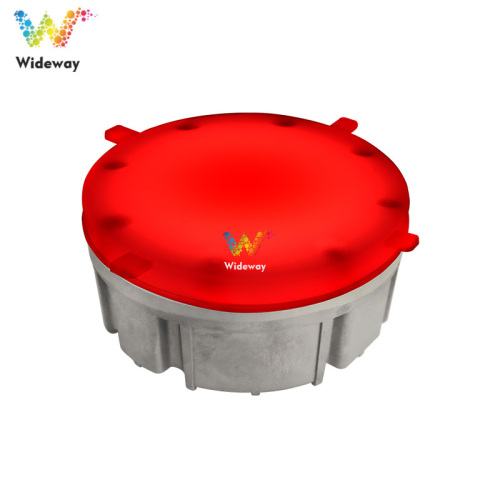

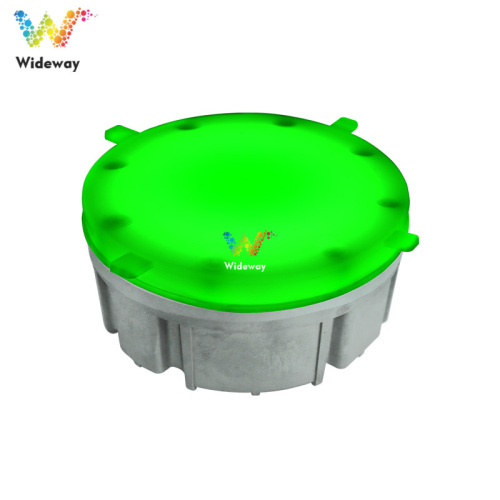

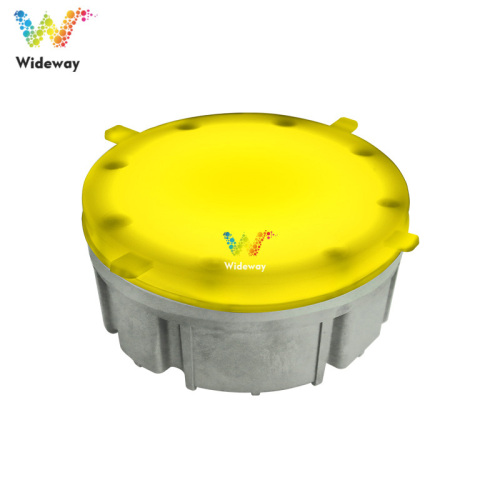

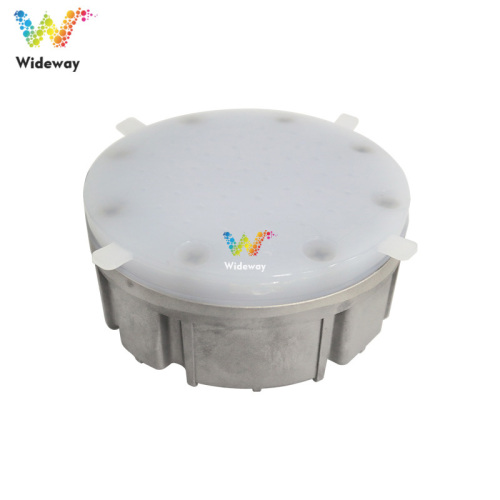

smart zebra crossing luminous aluminium led road stud

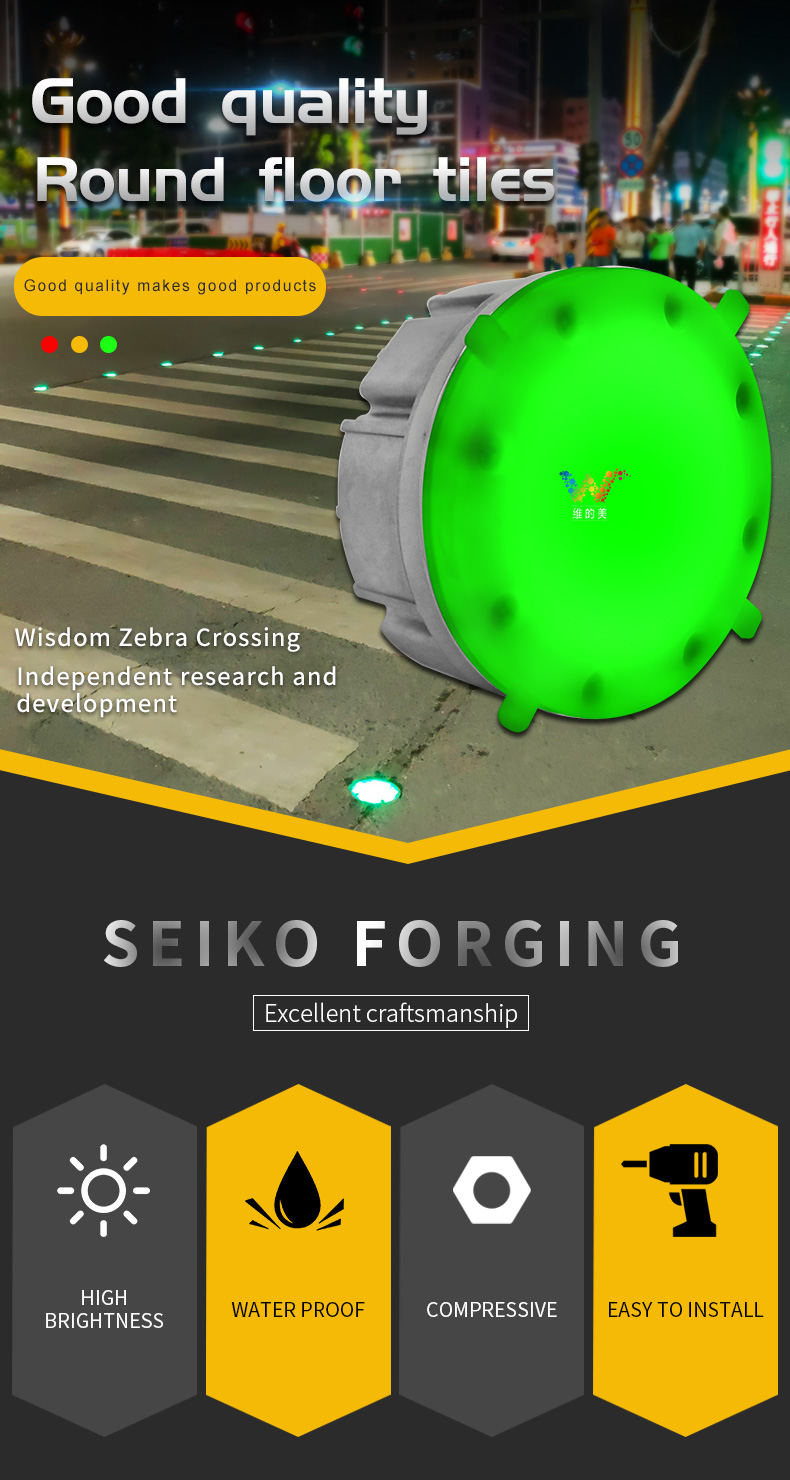

Smart zebra crossing luminous road studs are traffic lights used on zebra crossings, also known as ground traffic lights. It refers to a kind of signal light when pedestrians pass a traffic light intersection.

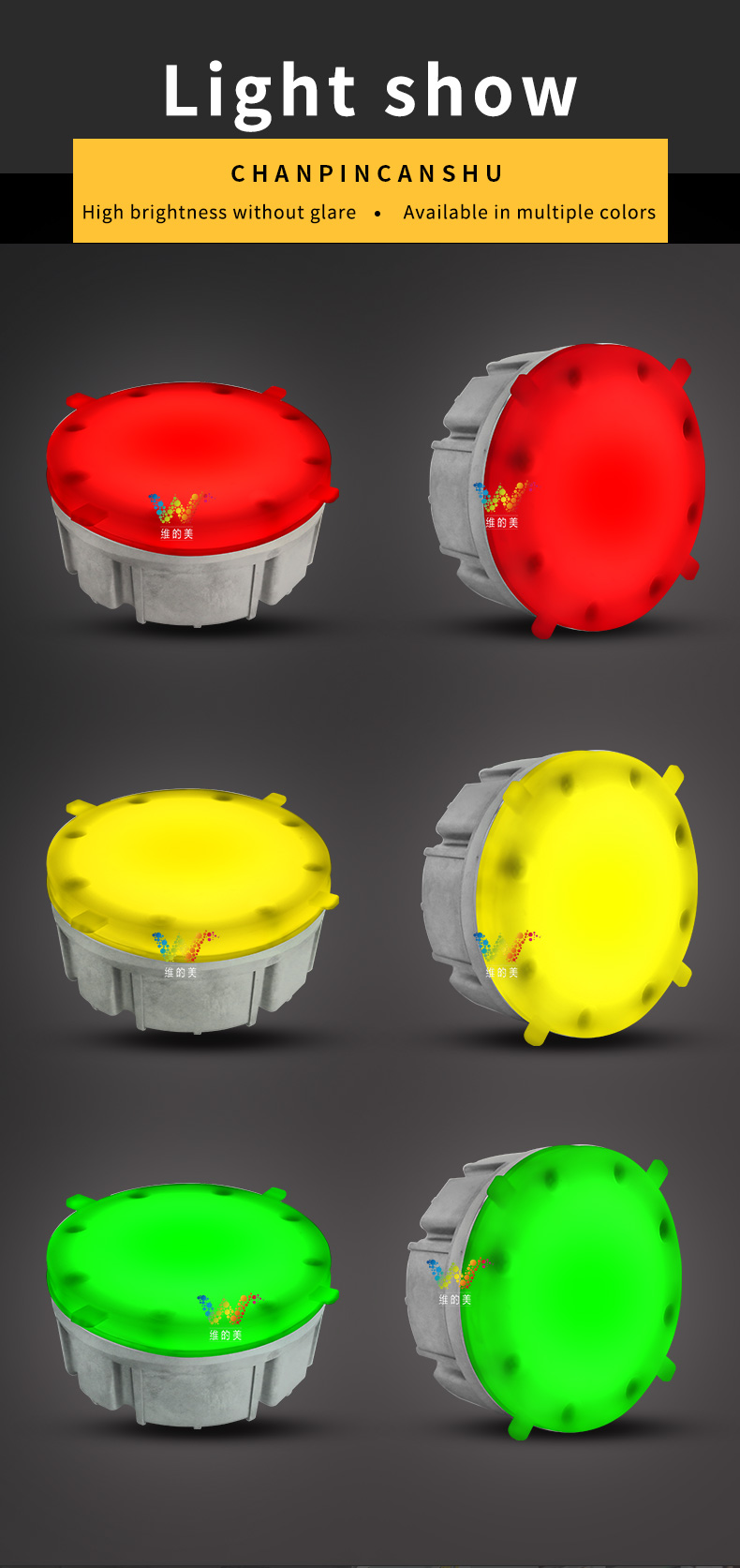

It shows that it is displayed in red and green, and the main installation location is above the zebra crossing, so that people walking with their heads down can see the traffic status at any time, thereby reducing traffic accidents.
happen!
Interpretation of the smart zebra crossing luminous aluminium led road stud:
1. The ramp synchronization warning light is the auxiliary equipment of Weimeimei's humanized design facility for pedestrian crossing. Visually remind pedestrians crossing the street not to run the red light, and to pass the road safely according to the pedestrian light signal; to develop a good civilized travel habit to ensure road traffic safety; it reflects the care for humanity and the improvement of the image of urban roads.2. The ramp synchronous warning light is pressure-resistant, anti-vibration and non-slip. The shell is made of die-cast aluminum, the surface of the material is frosted, and the design is non-slip.
3. Ramp synchronization warning lights are generally installed at both ends of the sidewalk zebra crossing; it can also be installed on the sidewalk safety island, that is, in front of the first zebra crossing. Its load-bearing capacity is more than 50t, which is mainly for people and drivers to beautify the city roads, strengthen reminders, let the bowers notice the status of the traffic lights, and help them pass the zebra crossing safely.
5. The ramp synchronization warning light is filled with white glue, which has high heat resistance and is completely waterproof.

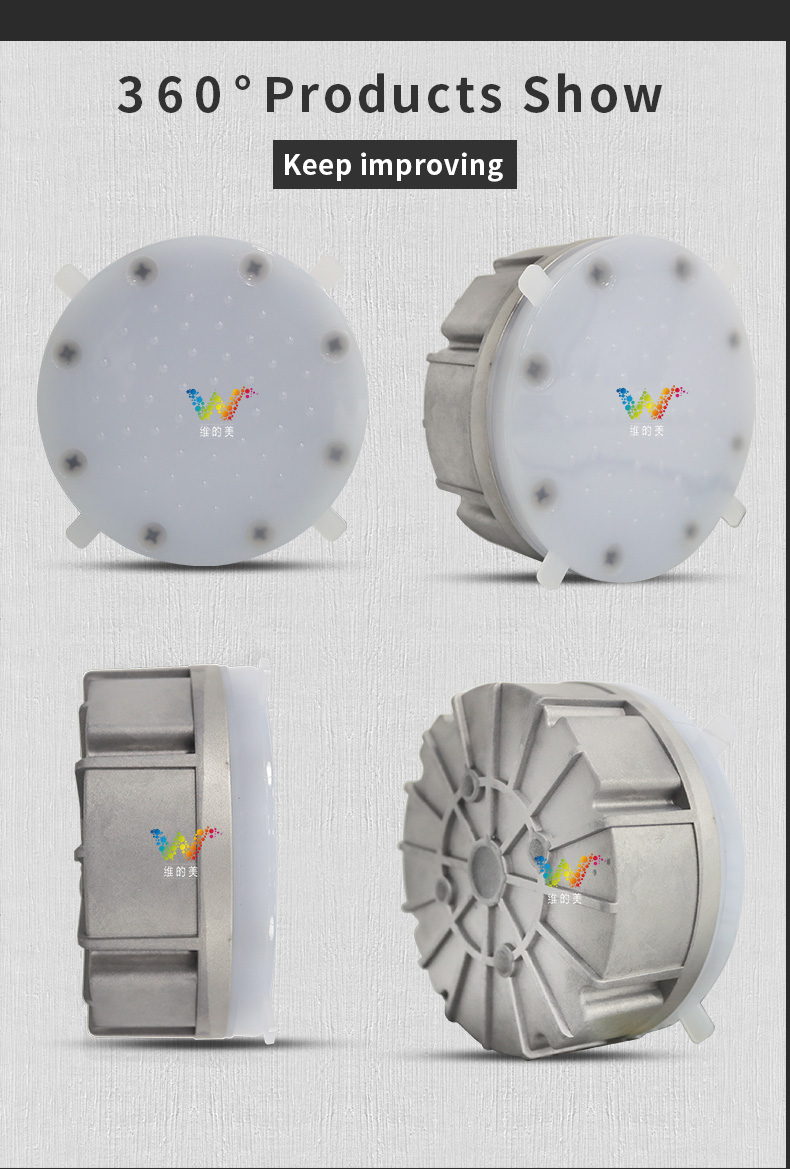

6. The ramp synchronous warning light has an exquisite appearance with a concave-convex design.
Parameter description of smart zebra crossing luminous aluminium led road stud:
LED composition: ￠5 round tube
Single brick load: 50t

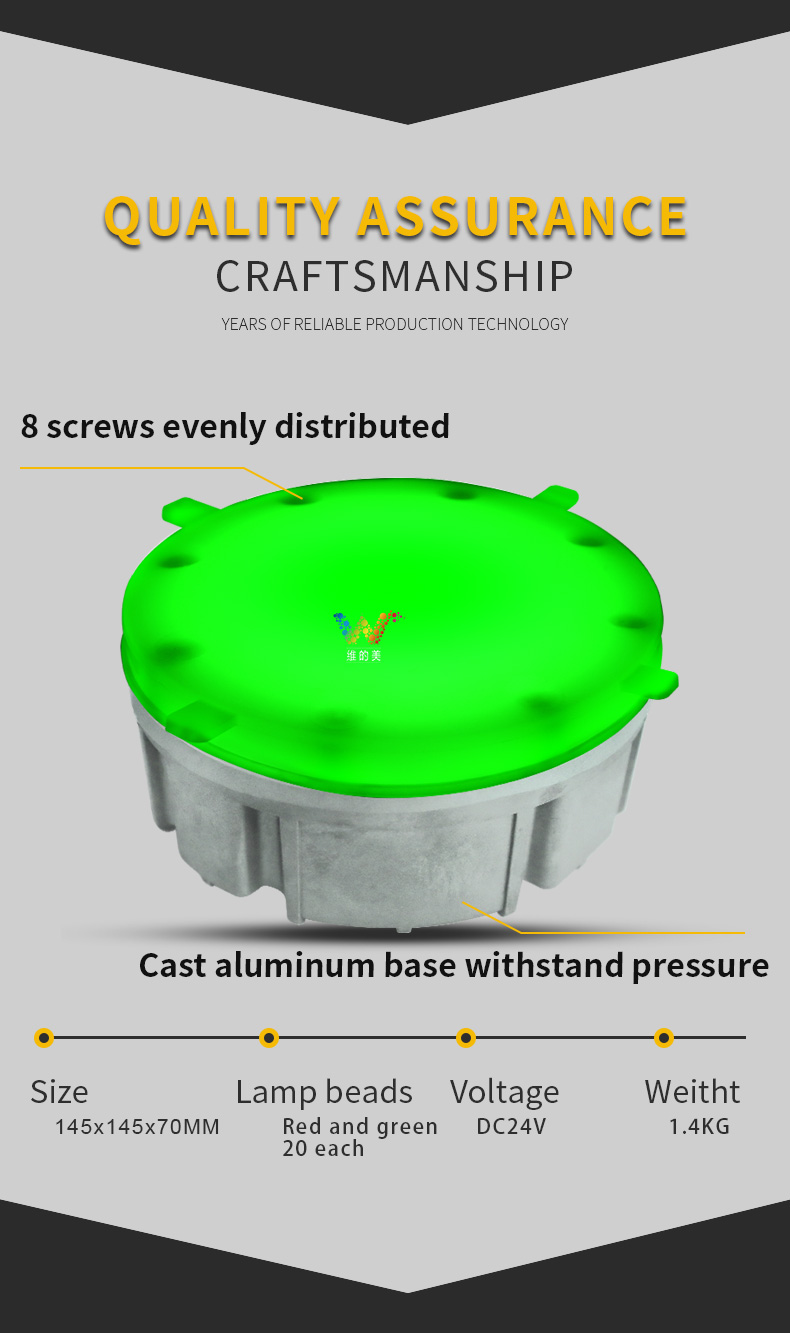

Product size: 145*145*70MM

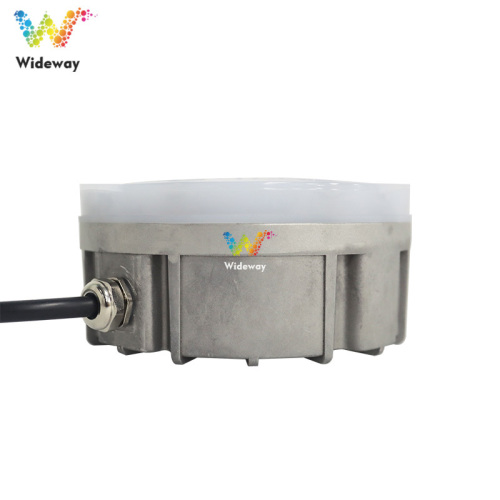

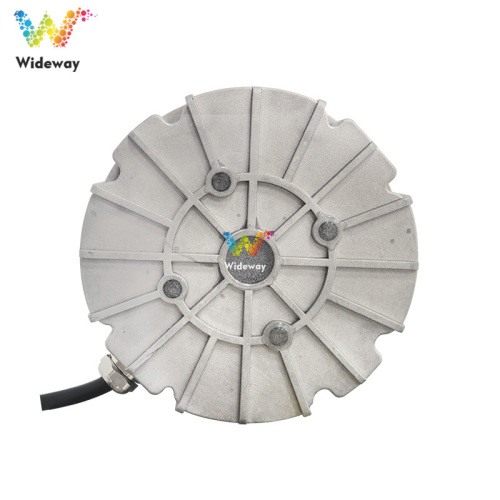

Shell material: die-cast aluminum
Rated power: R: 0.5W, G: 0.5W
Working voltage: DC24V
Average luminous intensity: ≥6000cd/㎡
Visual distance: 20-300m
Working temperature: -40℃ ～ +65℃
Relative humidity: 10%～95%
Insulation index: >1500V
Current to ground: ≤3mA
Mean time between failures: ≥10000 hours
Service life: ≥100,000 hours
Uniformity: uniform brightness
Protection level: IP65
Installation method: buried
Product weight: 1KG
Installation instructions for the smart zebra crossing luminous aluminium led road stud:
The product installation is divided into several stages: hardware equipment entering the site, breaking the road for route and embedded parts laying, installation, debugging, acceptance and other administrative work, etc. The entire construction period is about 2-3 working days.
1. If installed on the zebra crossing, slot the zebra crossing first, and the size of the slot is according to requirements. The slot position is generally at both ends of the zebra crossing.
2. If the gap of the cement tank is too large when cutting the groove, fill it with fine cement slurry.
3. Put the buried lights into the cement tank, the lines can be run from the bottom of the embedded light bar, and all are connected to the power control box.
4. Power laying: A power box with a hoop on the pedestrian light pole is optional when leaving the factory, and all floor tiles traffic lights are connected to the power control box.
Field application of smart zebra crossing luminous aluminium led road stud:
The input terminal of the 24V power control box connected to the ramp synchronization warning light is determined according to the location of the field installation. The one installed on the zebra crossing can be connected to the motor vehicle signal light or the signal machine. It should be connected with the motor vehicle signal light line, and the circular shape is embedded The lighting state of the solar road stud should be consistent with the lighting state of the motor vehicle; the lamps installed on the safety island can be connected to the sidewalk or the signal, and when connected to the signal, pay attention to the line of the pedestrian lamp. , The lighting state of the circular embedded solar road stud should be consistent with that of the pedestrian lights; the lights on the sidewalk can be voice prompts, side lights, integrated pedestrian advertising screens, etc., the circular embedded solar road studs are convenient Pedestrians know the status of the traffic lights for the first time. Reduce the incidence of traffic accidents with circular embedded solar road studs and improve traffic conditions. Buried strobe warning lights are the gospel of the "mobile phone family". You can know whether it is a red light or a green light without looking up at the status of the pedestrian lights.
