bridge water level height outdoor traffic led display

Features of the bridge water level height outdoor traffic led display:

1. The LED lamp beads of the bridge water level display use Taiwan Epistar chips with our own independent mold lenses, and each lens is a convex lens. The convex lens has a light transmission function, which greatly increases the viewing distance and not only the service life. Longer, good stability, with high refresh rate, high concentration, and high-brightness lights.
2. The bridge water level height display adopts 300W super large solar panel for power supply, no need for mains power supply or replacement of power supply, and can work around the clock.
3. Our company is equipped with a 300AH super battery for the bridge water level display, which has a longer service life.

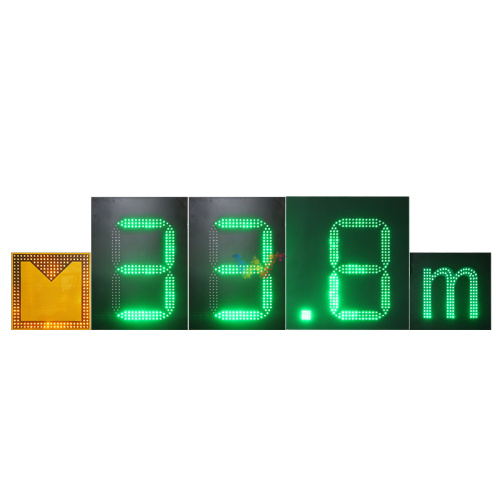

4. The bridge water level height display screen is divided into a digital screen, an M word screen and a pattern screen. The digital screen includes three numbers "3 8" and a decimal point, arranged in the word "88.8"; the M word screen displays the distance of the water level in meters ; The pattern screen displays the water level height.

Parameters of the bridge water level height outdoor traffic led display
1. Product size: 88.8

Display: 4500MM*1800MM

Pattern screen: 1200*1200MM

"M" screen: 1200*1200MM

2. Lamp bead color: yellow, green
3. Yellow wavelength: 590-595NM
4. Green wavelength: 500-505NM
5. Battery: 300AH
6. Solar panel: 300W
7. Visual distance: ≥1500M
8. Service life: 100000H
9. Shell material: aluminum (light and easy to install during installation)
10. Working temperature: -40℃-85℃
11. Protection level: IP65
12. Working voltage: 1 2V
13. Rated power: 30W
14. Working mode: PLC output signal

5. The geometric shape of each number on the digital screen on the bridge water level height display is in the shape of a "day", and each number in the shape of a "day" is divided into the same seven fields, and a number of hairs are evenly distributed around each field. The green LED light-emitting module outlines a green diamond pattern. The distance between two adjacent light-emitting modules on the field is 10cm. The LED light-emitting modules are distributed along the edge of the diamond pattern, which saves the LED light in the middle. Modules, this layout can not only give full play to the display performance, but also minimize the display energy consumption.
6. The solar panel of the bridge water level display is placed directly above the bridge water level display. The solar panel on the upper side can shading and shielding the bridge water level display screen, which is beneficial to prolong the service life of the bridge water level display screen.
7. The number on the bridge water level height display changes with the height of the water surface from the bridge.
8. The working mode of the bridge water level height display is PLC output signal, 485 communication, which can be controlled remotely or monitored remotely.

Wiring instructions for the bridge water level height outdoor traffic led display
1. Wiring instructions for display screen and control machine
(1) "8.8" screen wiring: ① The first '8' is connected to the main control card 1A, 1B, 1C, 1D, 1E, 1F, 1G ②The decimal point is connected to the 2I of the main control card ③The second '8' is connected Main control card 2A, 2B, 2C, 2D, 2E, 2F, 2G
(2) "8" screen wiring: "8" connects to the secondary control card (under the main control card) 1A, 1B, 1C, 1D, 1E, 1F, 1G Remarks: on the control board, each wiring port is marked There are text descriptions: such as 1A, 1B...
(3) ①The "wave-shaped" pattern screen is connected to the two ports of the number '1' ②The "M" screen is connected to the two ports of the number '2'

2. Description of the port wiring of the control cabinet: The number ‘1’ port is connected to a 300W solar panel, which means solar input. The number ‘2’ port is connected to a 10W solar panel, which is used to judge day or night. The number ‘3’ terminal is connected to the positive electrode (12V) of the battery. The digital '4' port is connected to the 485 communication interface. The number ‘5’ port connects the "8" screen and the "8.8" screen from left to right (4 ports are connected to 88.8 respectively). The number ‘6’ port is connected to the “wave-shaped” pattern screen. The number ‘6’ port is connected to the "M" screen.

In addition to the bridge water level height outdoor traffic led display, We also produces other traffic lights:
Highway Led Display
Digital Display Board
Led Display Outdoor
Taxi Top Led Display
Traffic Led Display
Full Color Led Display
