truck mounted LED yellow flashing traffic arrow light

What is the truck mounted LED yellow flashing traffic arrow light:

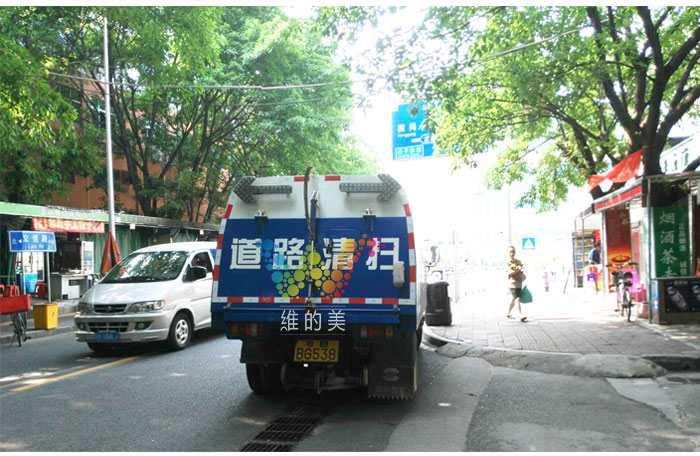

The 600mm truck mounted LED yellow flashing traffic arrow light has beautiful appearance, novel style, low power consumption, large viewing angle and long life. Self-opening mold arrow lights are mainly used for road construction and road cleaning. This product uses Taiwan Epistar chip lamp beads, a 6-meter cable between the lamp and the lamp is connected without gaps, and a new yellow waterproof 3m super-adhesive waterproof strip is added.

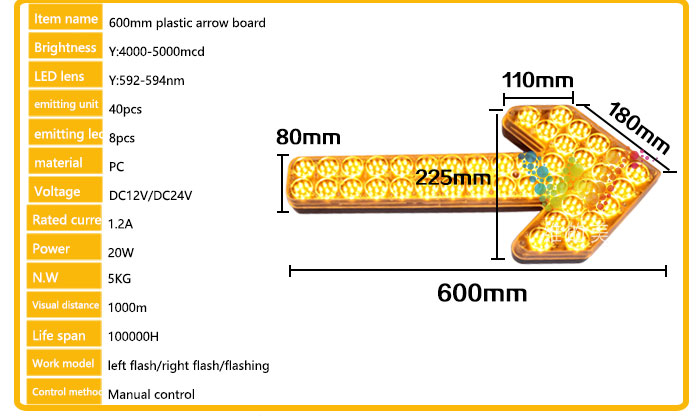

Details of the parameters of the truck mounted LED yellow flashing traffic arrow light:
Item name:  600mm plastic arrow board
Brightness:Y:4000-5000mcd
LED lens:Y:592-594nm
emitting unit:40pcs
emitting led:8pcs
material:PC
Voltage:DC12V/DC24V

Rated current:1.2A
Power:20W
N.W:5KG
Visual distance:1000m
Life span:100000H
Work model:left flash/right flash/flashing
Control method:Manual control

 Display mode of the truck mounted LED yellow flashing traffic arrow light:
There are two display modes, which are all on, left flashing,right flashing

Installation instructions for truck mounted LED yellow flashing traffic arrow light:
The installation method of the plastic led arrow board can be customized, and the commonly used ones are bracket installation and hoop installation.
1. Bracket installation: first install the bracket in a suitable position on the car. The installation position may be different for different models. After the bracket is fixed, the holes on the arrow lights can be aligned with the holes on the bracket, and then tighten the screws. can.
2. Hoop installation: first install the pole in a suitable position on the car, the installation position may be different for different models, after fixing the pole, fix the arrow lamp on the pole with a hoop, and the hoop hole position and the arrow lamp Align the holes on the top and tighten the screws.
