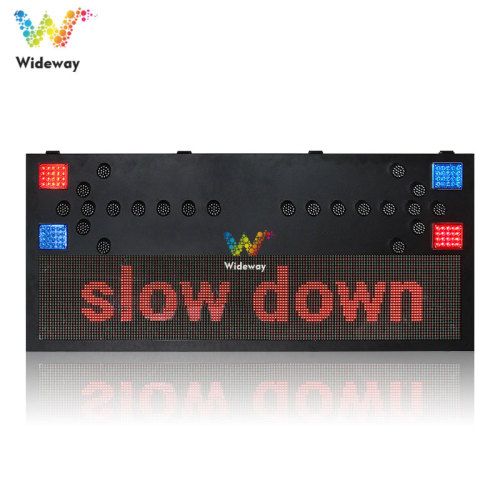

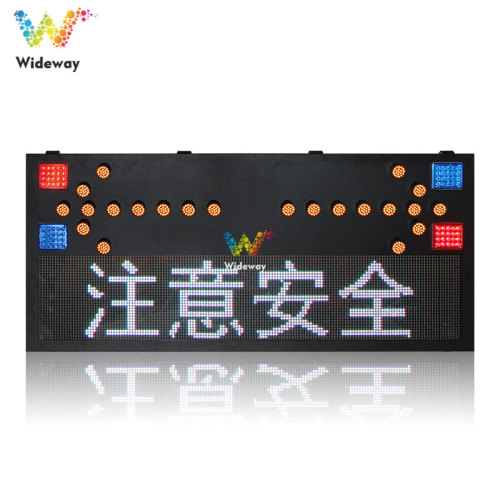

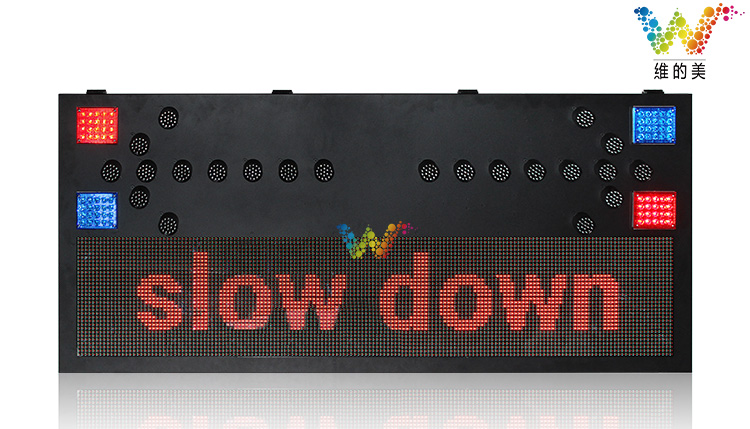

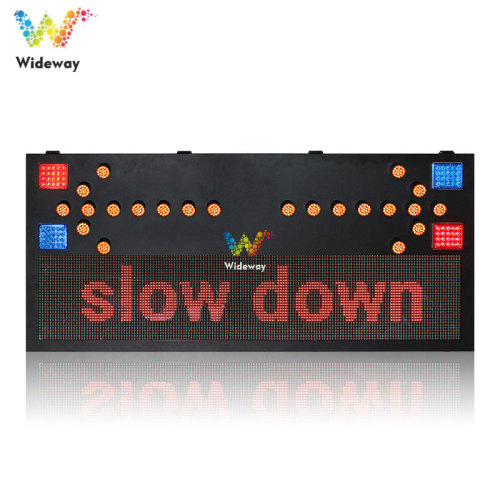

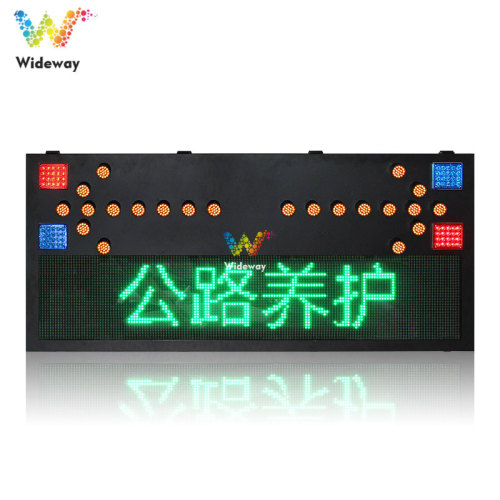

P10 display LED Traffic Arrow Guidance Sign Board

Introduction of the P10 display LED Traffic Arrow Guidance Sign Board:

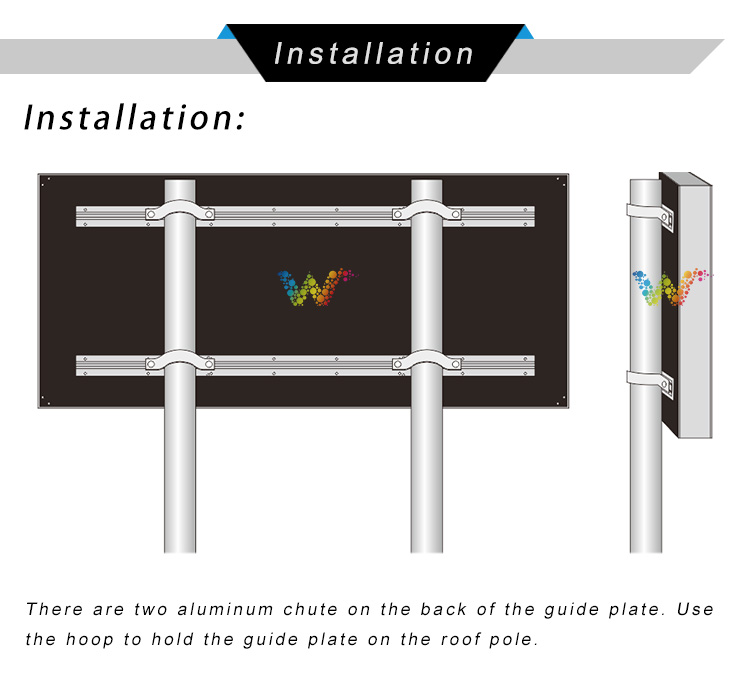

 The P10 full-color car display guide card is composed of a cabinet, multiple C52 pixel tubes, four flash modules and multiple modules. The bottom of the box has a buckle design, which is convenient to open the display screen for inspection and maintenance. The screen body is installed on the car or other shelf with the back hoop. Please refer to the relevant drawings for the specific structure.
 The P10 full-color car display guide plate receives and publishes the information and sends it through a mobile phone connected to WIFI or a computer, which can display Chinese, English, numbers, and icons. The control unit can store at least more than 100 pieces of information, which can be called by the operator at any time, and the operator can perform full-screen arbitrary editing and status detection and control on the monitoring and management mobile phone or computer.

Advantages and technical guidance of the P10 display LED Traffic Arrow Guidance Sign Board:
1. Mainly used for engineering vehicles, municipal vehicles, car roofs, etc. Using Taiwan Epistar chip lamp beads, the number of LEDs are closely arranged, ultra-high brightness, concentrated light, very large viewing angle, and good visual effects.

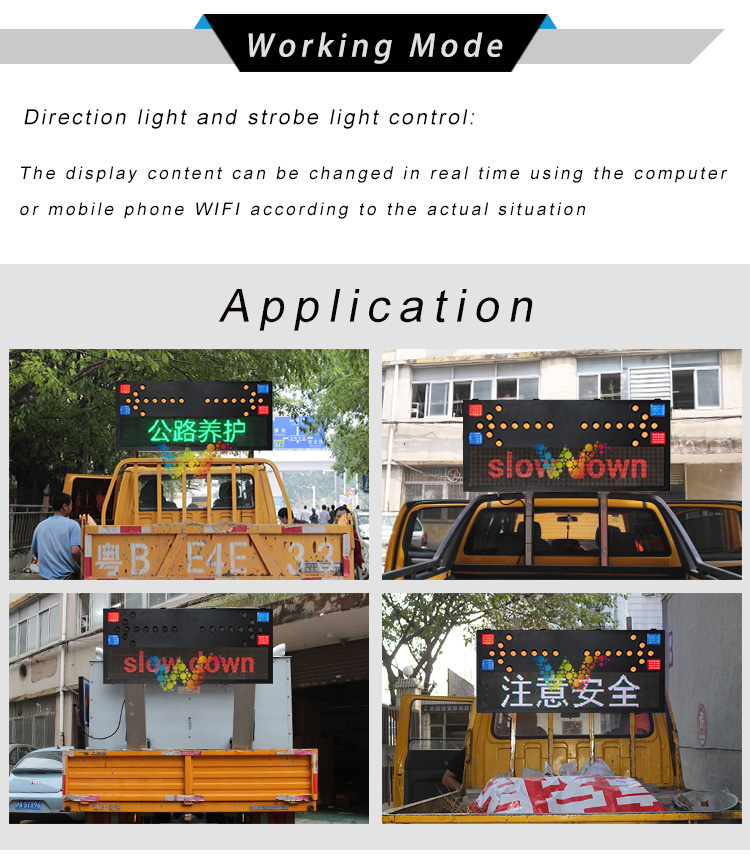

2. Used for various road construction instructions, such as engineering vehicles, municipal vehicles, garbage trucks, etc., to indicate that the vehicle is in operation or the road section is under construction, etc., such as installing street lights and signal lights to guide passing vehicles to pass safely and quickly.
3. This product uses wide voltage 8-40V low voltage power, good stability, no matter it is 12V or 24V, it can work normally.
4. Strict aging: The aging is verified 24 hours before the product is shipped, and the performance is more superior!

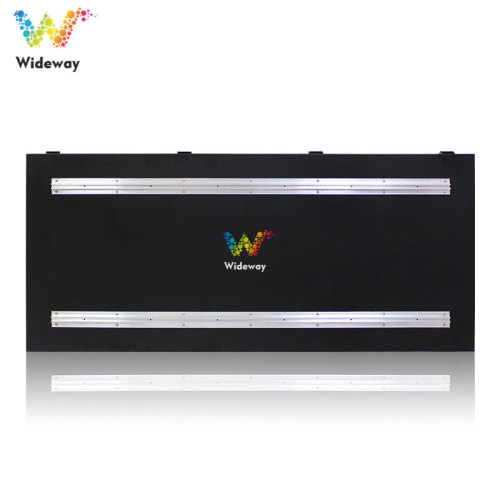

5. The shell is made of sheet metal, and the sheet metal chassis is made of cold-rolled plates. The cold-rolled plates have good surface quality, non-reflective, anti-glare, fully enclosed, all-weather, weatherproof, and have good oxidation resistance. The internal equipment does not fade.

6. Flash module: The red and blue flash module in the four corners of the arrow of the pixel tube of the box, strengthen the warning.
7. Completely waterproof: waterproof glue is applied to the connection between the display screen and the cabinet on the surface of the product to improve the waterproof performance of the product.
8. Dynamic constant current drive: The display mode of the display is in a dynamic mode, that is, the LED lights are illuminated in a dynamic mode.

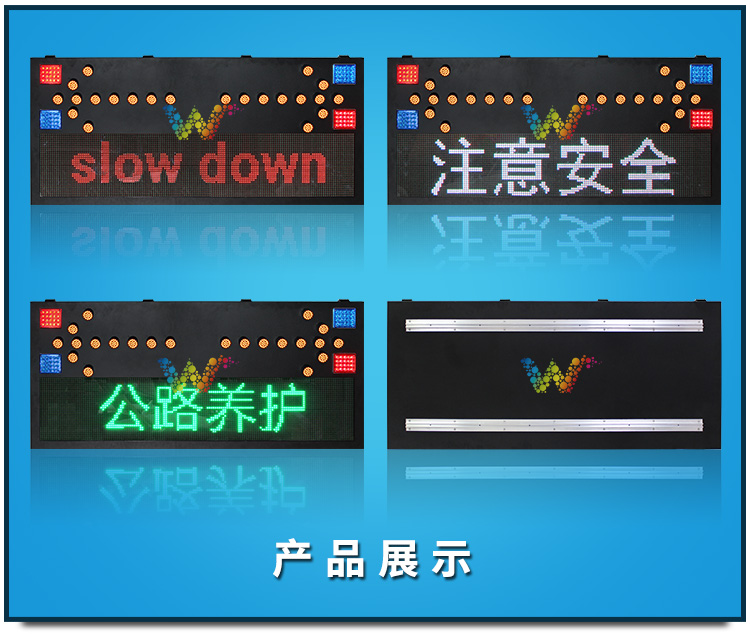

9. Display mode: the content and color displayed on the display screen can be changed through the control software, and the APP of this software is installed on the mobile phone, and the displayed content and color can be changed by connecting the device WIFI.
10. Independent control: The control box controls the blinking mode of the direction light and the switch of the strobe module, and the display screen is controlled by the red switch button.
11. Product warranty ≥3 years.

P10 display LED Traffic Arrow Guidance Sign Board function:

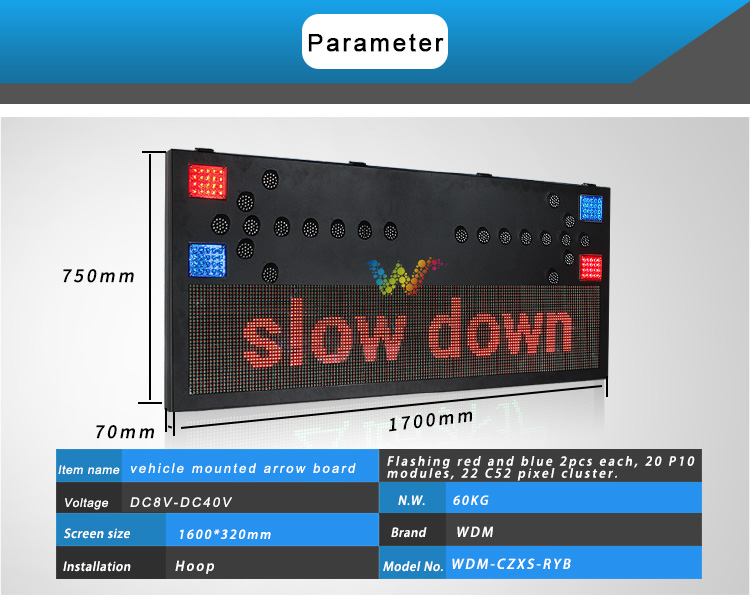

The display of a box of the P10 full-color car display guide plate is composed of 10*2 modules assembled into a display screen, 22 pixel tubes composed of arrow lights and four flashing modules, each of which is 16 *16 pixel dot matrix, can display 32×32 dot matrix, 24×24 dot matrix or 16×16 dot matrix Chinese characters, characters and graphics. The display screen uses the displayed text or graphics as reminding reference information, plus arrows and flashing modules to indicate that this vehicle is under operation or this section of the road is under construction, etc., such as installing street lights and signal lights to guide passing vehicles to pass safely and quickly. Realize the dynamic route guidance system of the priority driving route within the control range.

P10 display LED Traffic Arrow Guidance Sign Board can be used for expressways or special sections, such as construction ahead, school intersections, accident prone places, strong winds, dense fog, speed limit signs and other warning slogans; simple graphics and speed limit values can also be displayed Etc., so that drivers can better grasp the current road conditions, and can also be used as urban road instructions to avoid unfamiliar roads, mistaking, traffic jams, and reduce the occurrence of traffic accidents.
