400mm solar panel led traffic warning signal light
- Payment Type:
- T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- EXW
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | guangdong |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | stock |
| Payment Type: | T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | EXW |
| Certificate: | CE/ROHS |
| HS Code: | 8530800000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
400mm solar panel led traffic warning signal light
Basic parameters of the 400mm solar panel led traffic warning signal light:
Product Name: 400mm solar yellow flashing red slow light
Model No.:WDM-SG400-1-YR-PC
Lamp diameter:400mm
LED QTY:yellow 174pcs ,red 120pcs
Lamp brightnessY/R:4000-5000mcd
Lamp wavelength:Y:590-594 R:620-630
voltage:DC12V
Rated power:yellow 14W red 10W
Material:PC
Solar panel:18W 12V
Battery:12V/12ah
Visual:>600m
Application:high way,crossing road,bridge,etc.
Features of the 400mm solar panel led traffic warning signal light:
1.400 solar yellow flashing red slow light uses Taiwan Epistar chip lamp beads, high brightness, high refresh rate, and long service life.
2. The 400-type solar yellow flashing red slow light uses 10W/18V solar panels and uses solar energy to generate electricity, which is energy-saving and environmentally friendly.
The sunshade of the 3.400 solar yellow flashing red slow light is made of PC material, which has a good waterproof and dustproof effect and is easy to install.
The 4.400 solar yellow flashing red slow light uses a 12V 8AH super large lead-acid battery, which has more powerful power storage and can better deal with rainy weather.

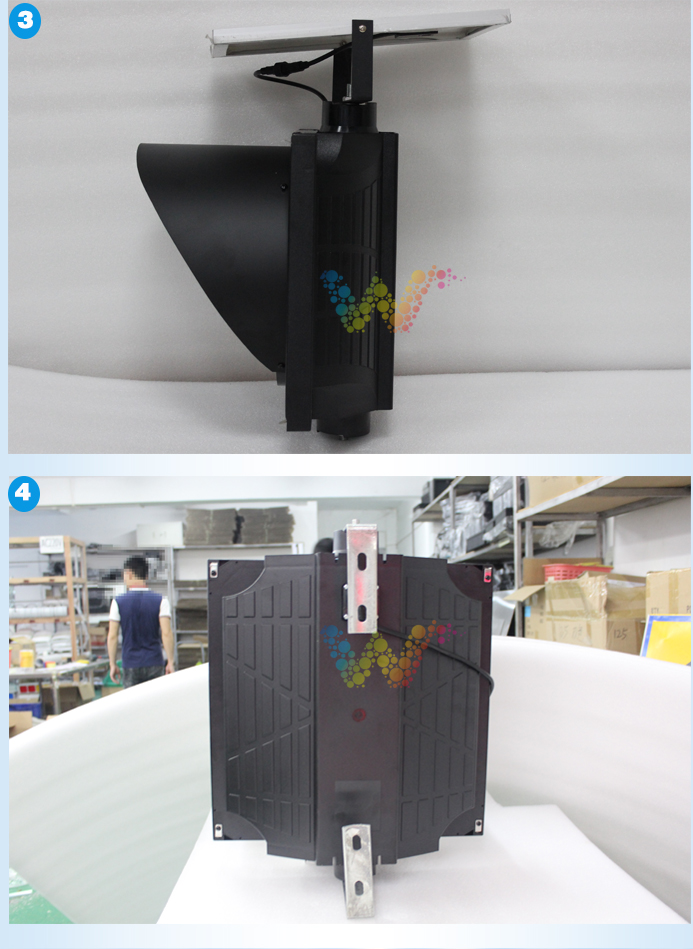

Installation method of the 400mm solar panel led traffic warning signal light:
1. There is a screw at both ends, unscrew the nut on the screw
2. Put the flat end of the "L"-shaped bracket on the screw according to the hole position and the slot, and then put the solar panel bracket into the screw, then put the gasket and nut, and tighten the nut. Finally, connect the solar panel butt joint with the lamp butt joint.
3. Install the sun visor on the upper part of the lamp, fold the three-corner aluminum plate into an arc shape and put it on the lamp, and use screws to align the corresponding holes and tighten.
4. Punch 2 holes on the signal light pole, punch holes according to the hole position of the L bracket of the signal light, pass a suitable screw through the light pole, and put the L-shaped bracket on the screw and fix it with a nut.
Four, 400 solar yellow flashing red slow light switch instructions:
The red button is the main power switch
The black button is a light control switch
In addition to the 400mm solar panel led traffic warning signal light, Shenzhen Wide Way Optoelectronics Co., Ltd. also produces the following other types of solar yellow flashing lights;
300mm yellow flashing red slow light; Solar flashing lights, etc.
