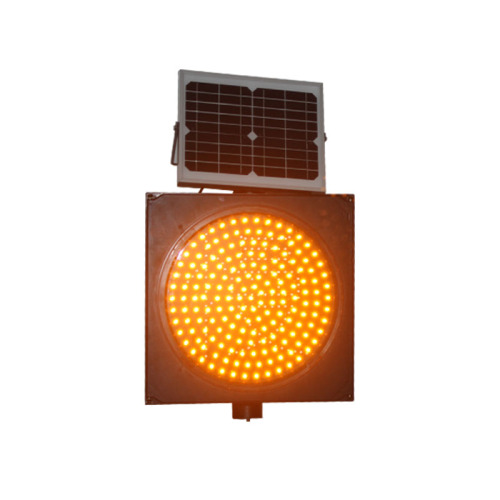

400MM Yellow Flashing Solar strobe warning light
1. Basic parameters of the 400MM Yellow Flashing Solar strobe warning light:
Product model: WDM-SG400-1-Y
Name：400mm solar warning light
Model：WDM-SG400-1-PC
Lamp Diameter : 400mm
LED QTY：174pcs
LED intensity：Y:4000-5000mcd
Wave length：Y:590-594
Voltage：DC12V
Power：14W
Material：PC
Solar Panel：8W/10W/15W
Battery：12V/8ah
Visual Distance：>600m
Features of the 400MM Yellow Flashing Solar strobe warning light:
1. The 400MM Yellow Flashing Solar strobe warning light is green energy, economical and environmentally friendly, does not contain harmful substances, and does not emit pollutants.
2. The 400MM Yellow Flashing Solar strobe warning light adopts Taiwan Epistar chip, with a service life of ≥100000 hours, high brightness, unique optical system, uniform chromaticity, good warning effect and slow light attenuation.
3. The 400MM Yellow Flashing Solar strobe warning light has low power consumption, large viewing angle, super high brightness, long viewing distance and long working time.
4. 400MM Yellow Flashing Solar strobe warning light is durable. Stable and reliable, high protection level. Impact resistance, aging resistance, corrosion resistance.
5. 400MM Yellow Flashing Solar strobe warning light is waterproof. Easy to install.
6. 400MM Yellow Flashing Solar strobe warning light comply with GB/14887-2003 and relevant international standards
Installation instructions of the 400MM Yellow Flashing Solar strobe warning light:
1. This product is simple and convenient to install. Use the hoop to install on the pole, and use two hoop to hug the pole. Other installation methods can also be customized according to customer requirements.
2. Install the pole first. There are four holes in the pole base. Fix the pole with screws.
3. When installing the solar panel, unscrew one of the nuts and washers on the screw rod above the anti-collision, put the solar panel into the screw rod, and fix it with the nut and washer.
4. Then install the anti-collision light in the proper position of the pole, pass the M10 screw through the aluminum groove on the back of the product, and then align the hoop around the pole with the screws on the aluminum groove, that is, the two ends of the hoop The holes are aligned with the screws on both ends, and then the nut is screwed on.
5. Fix the hoop in the middle of the aluminum groove, and tighten the nuts at both ends,
Field application of the 400MM Yellow Flashing Solar strobe warning light:
