intergrated 2 Digits 400mm countdown timer traffic light
- Payment Type:
- T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- EXW
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | guangdong |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | stock |
| Payment Type: | T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | EXW |
| Certificate: | CE/ROHS |
| HS Code: | 8530800000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
Product Description
Product Description

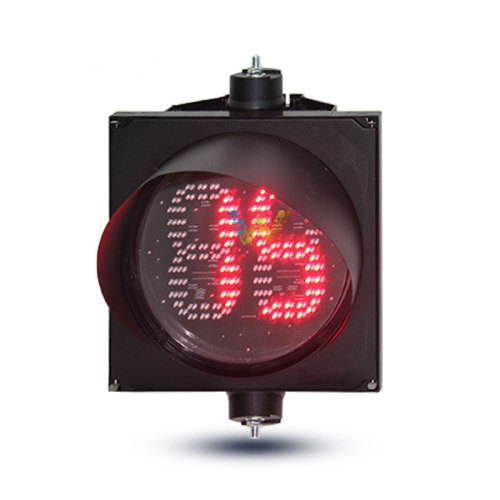

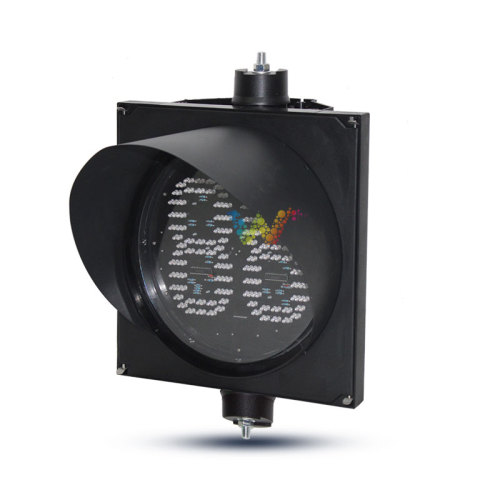

Intergrated 2 Digits 400mm countdown timer traffic light
Features of intergrated 2 Digits 400mm countdown timer traffic light:

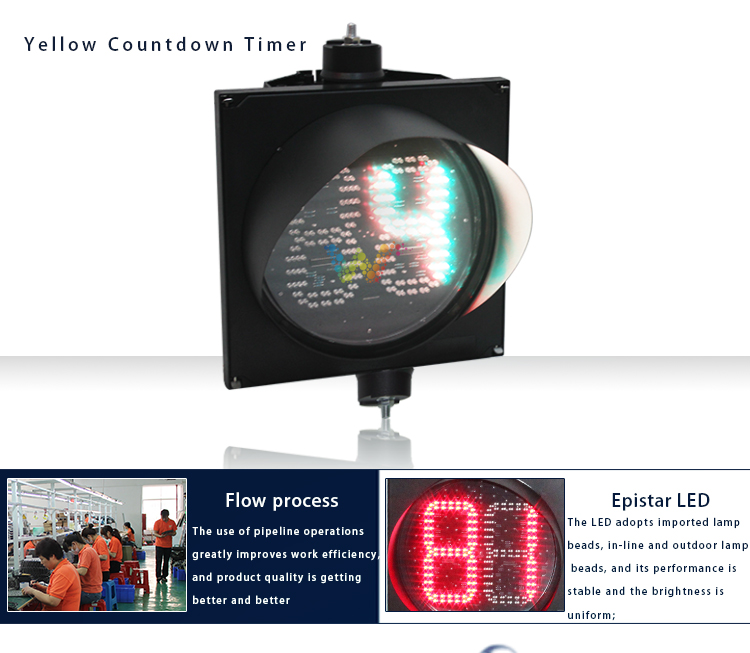

1. intergrated 2 Digits 400mm countdown timer traffic light adopts Taiwan Epistar chip lamp beads, high brightness, high refresh rate and long service life.

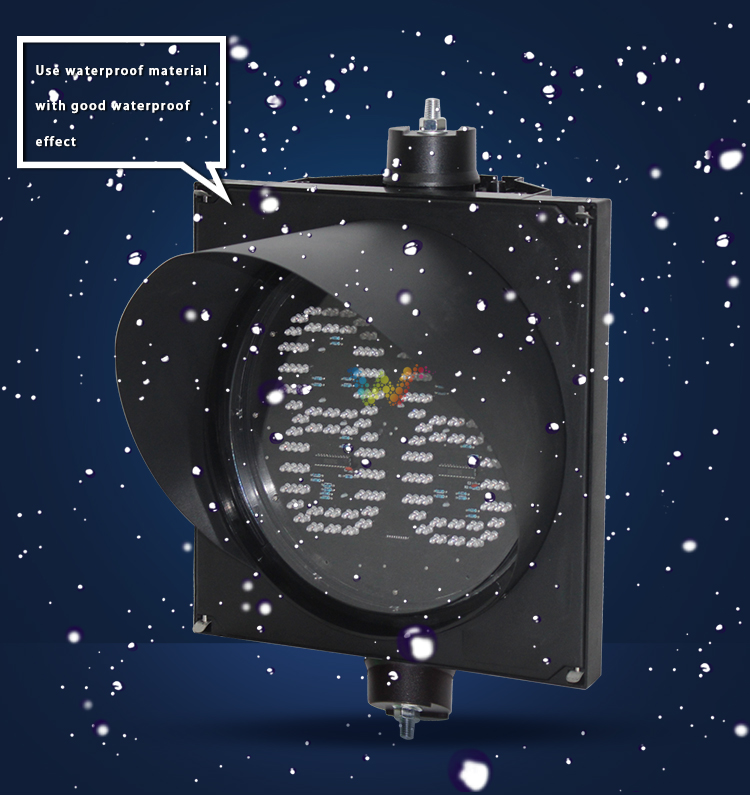

2. intergrated 2 Digits 400mm countdown timer traffic light is designed with an outlet hole, which is not only convenient for outlet, but also has a good waterproof effect.
3. The sunshade of the intergrated 2 Digits 400mm countdown timer traffic light is made of PC material, which has good waterproof and dustproof effect and is easy to install.

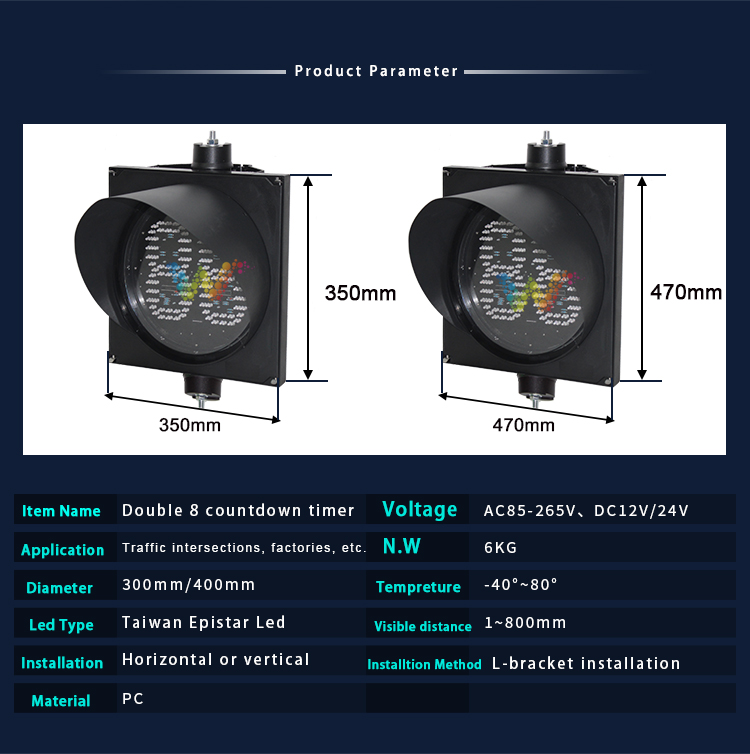

Product model: WDM-CD400-1-RG-1
1. Product size: 470*470*145MM
2. Number of lamp beads: 125 red and 117 green
3. Luminous diameter: 400MM
4. Lamp beads category: Taiwan Epistar chip lamp beads
5. Red wavelength: 620-625NM
6. Green wavelength: 520-525NM (emerald green) 500-505 (blue-green)
7. Service life: 100000H
8. Shell material: PC
9. Working temperature: -40℃-65℃
10. Beam angle: 30°
11. Protection level: IP53
12. Working voltage: AC85V-265V, a small amount of DC12V/24V
13. Visual distance: ≥1000M
14. Installation method: horizontal or vertical installation

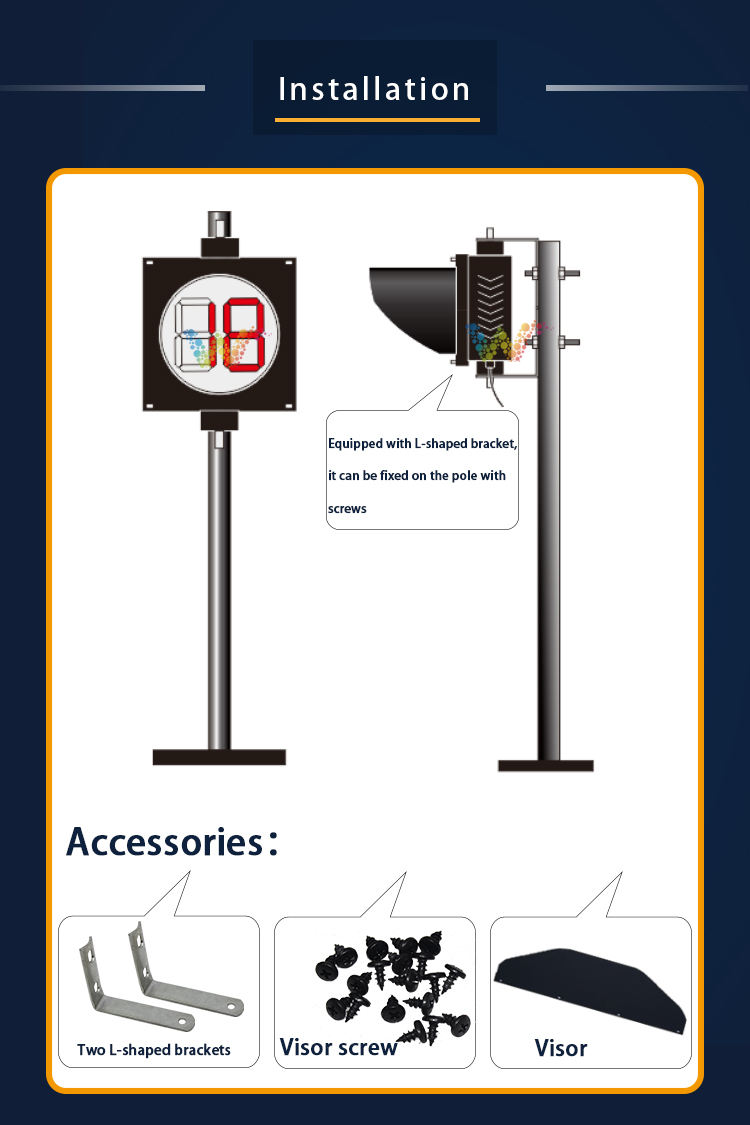

Installation method: horizontal installation
1. There is a screw at both ends, unscrew the nut on the screw,

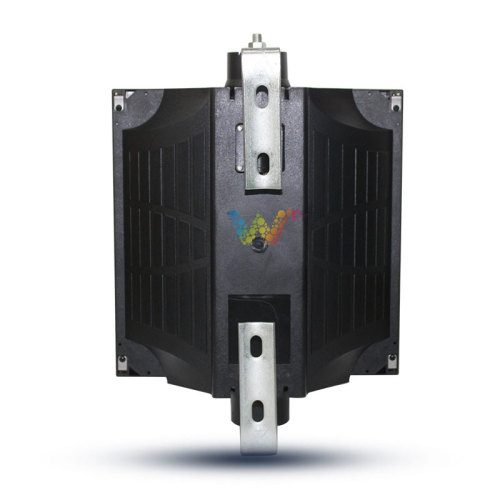

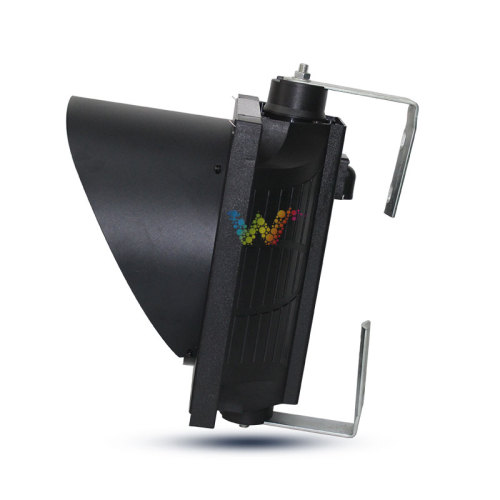

2. Put the flat end of the "L"-shaped bracket on the screw according to the hole position and slot, and tighten the nut. (as the picture shows)
3. The sun visor is installed on the upper part of the lamp. Fold the three-corner aluminum plate into an arc shape and put it on the lamp. Use screws to align the corresponding holes and tighten.
4. Punch 2 holes on the signal light pole, punch holes according to the hole position of the signal L bracket, pass a suitable screw through the light pole, and put the L-shaped bracket on the screw and fix it with a nut. (as the picture shows)
Installation method: erect installation
Vertical installation is the same as horizontal installation, just put it upright,
Pay attention to 2 points,
1. Connect to AC220V:
The black line is the common zero line;
The red line is the red cross fire line;
The green line is the green arrow fire line;
400mm double 8 countdown single lamp accessories description:
(1) Lamps: 1
(2) Instructions: 1 copy
(3) Certificate of conformity: 1 copy
(4) L-shaped bracket: 2
(5) Sun visor: 1
Teaching traffic lights;
200mm traffic light;
Features of intergrated 2 Digits 400mm countdown timer traffic light:
1. intergrated 2 Digits 400mm countdown timer traffic light adopts Taiwan Epistar chip lamp beads, high brightness, high refresh rate and long service life.
2. intergrated 2 Digits 400mm countdown timer traffic light is designed with an outlet hole, which is not only convenient for outlet, but also has a good waterproof effect.
3. The sunshade of the intergrated 2 Digits 400mm countdown timer traffic light is made of PC material, which has good waterproof and dustproof effect and is easy to install.
4. The intergrated 2 Digits 400mm countdown timer traffic light adopts an assembled design, which is very simple, convenient and fast to install.
Product model: WDM-CD400-1-RG-1
1. Product size: 470*470*145MM
2. Number of lamp beads: 125 red and 117 green
3. Luminous diameter: 400MM
4. Lamp beads category: Taiwan Epistar chip lamp beads
5. Red wavelength: 620-625NM
6. Green wavelength: 520-525NM (emerald green) 500-505 (blue-green)
7. Service life: 100000H
8. Shell material: PC
9. Working temperature: -40℃-65℃
10. Beam angle: 30°
11. Protection level: IP53
12. Working voltage: AC85V-265V, a small amount of DC12V/24V
13. Visual distance: ≥1000M
14. Installation method: horizontal or vertical installation

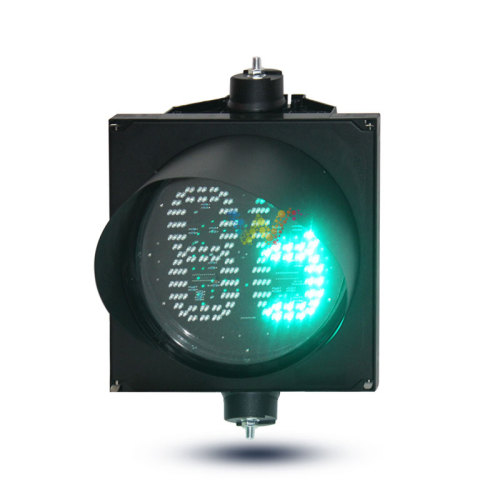

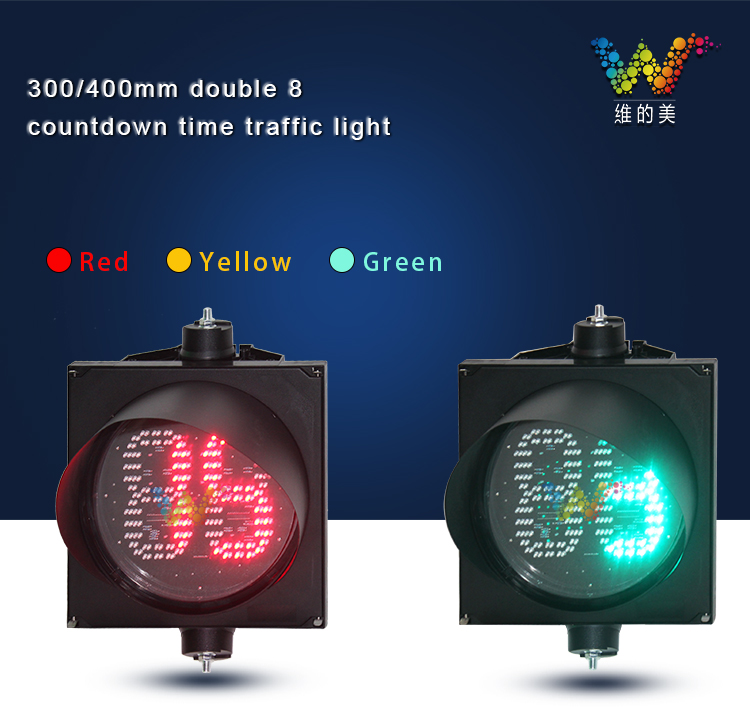

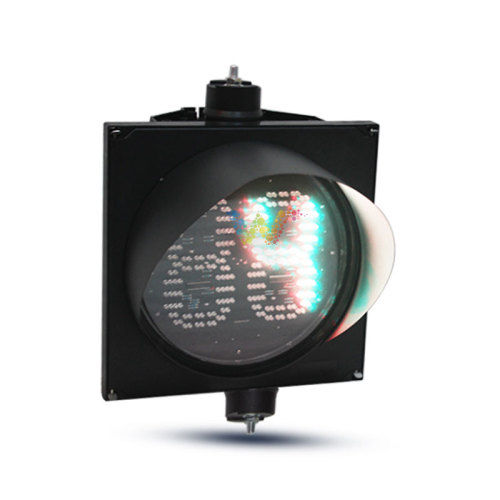

The physical picture of intergrated 2 Digits 400mm countdown timer traffic light:
Installation method: horizontal installation
1. There is a screw at both ends, unscrew the nut on the screw,
2. Put the flat end of the "L"-shaped bracket on the screw according to the hole position and slot, and tighten the nut. (as the picture shows)
3. The sun visor is installed on the upper part of the lamp. Fold the three-corner aluminum plate into an arc shape and put it on the lamp. Use screws to align the corresponding holes and tighten.
4. Punch 2 holes on the signal light pole, punch holes according to the hole position of the signal L bracket, pass a suitable screw through the light pole, and put the L-shaped bracket on the screw and fix it with a nut. (as the picture shows)
Installation method: erect installation
Vertical installation is the same as horizontal installation, just put it upright,
Pay attention to 2 points,
1. The sun visor is on the upper part of the lamp 2. The outlet hole faces downwards (as shown in the figure)
1. Connect to AC220V:
The black line is the common zero line;
The red line is the red cross fire line;
The green line is the green arrow fire line;
400mm double 8 countdown single lamp accessories description:
(1) Lamps: 1
(2) Instructions: 1 copy
(3) Certificate of conformity: 1 copy
(4) L-shaped bracket: 2
(5) Sun visor: 1
(6) M4 screws: 4
Teaching traffic lights;
200mm traffic light;
300mm traffic light;
300mm Red Traffic Light
Red Traffic Signal Light
One Aspect Traffic Light
Crossroad traffic lights and so on.
