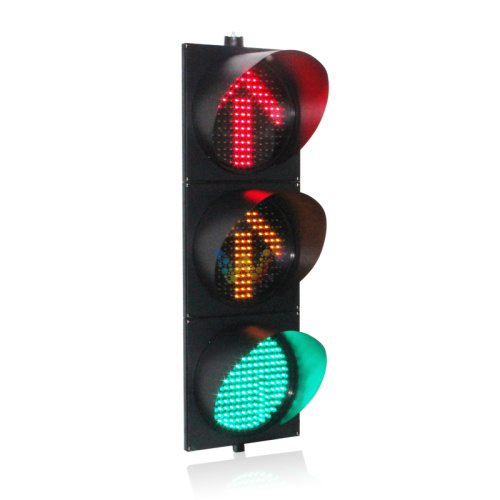

400mm 3 Color LED arrow Traffic Signal Light

400mm 3 Color LED arrow Traffic Signal Light

Get Latest Price

Payment Type:: T/T, D/P, Paypal, Money Gram, Western Union

Incoterm:: EXW

Delivery Time:: 5 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	guangdong
Productivity:	50000
Supply Ability:	stock
Payment Type:	T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	EXW
Certificate:	CE/ROHS
HS Code:	8530800000
Transportation:	Ocean,Land,Air
Port:	Shenzhen

Product Description

400mm 3 Color LED arrow Traffic Signal Light

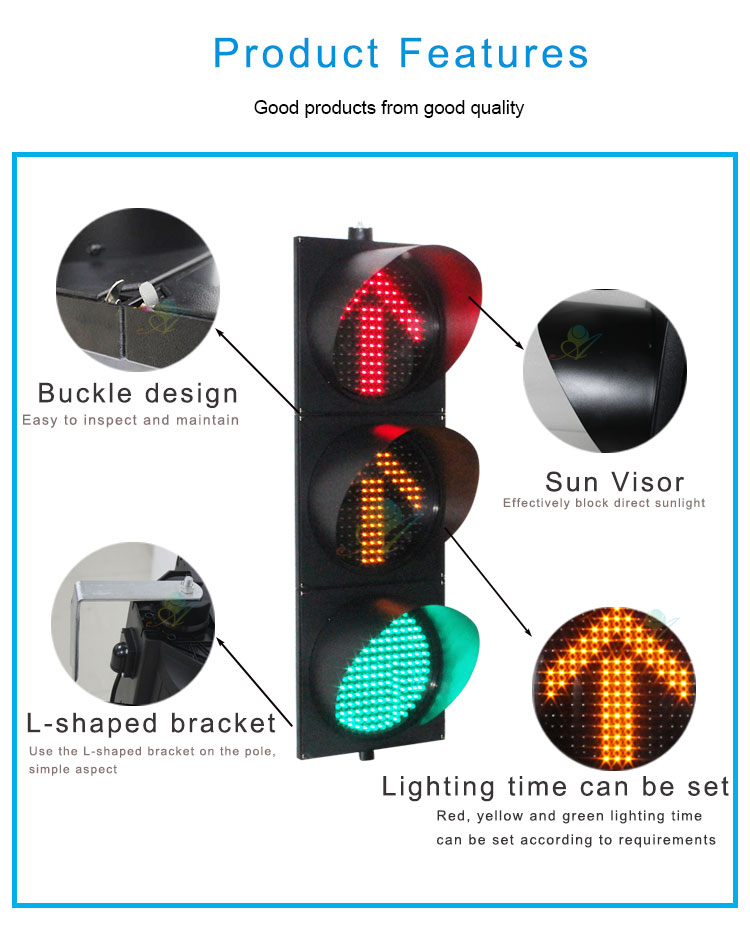

Features of 400mm 3 Color LED arrow Traffic Signal Light:

1. The 400mm 3 Color LED arrow Traffic Signal Light use Taiwan Epistar chip lamp beads, high brightness, high refresh rate, and long service life.
2. There are outlet holes on the back of the 400mm 3 Color LED arrow Traffic Signal Light, which is not only convenient for outlet, but also has a good waterproof effect.
3. The sunshade of the 400mm 3 Color LED arrow Traffic Signal Light is made of PC material, which has good waterproof and dustproof effects and is easy to install.
4. Each lamp and lamp of the 400mm 3 Color LED arrow Traffic Signal Light are designed with a snap button, which facilitates the inspection and maintenance of the product.
5. 400mm 3 Color LED arrow Traffic Signal Light with yellow flashing function
6. The green light with three lights on the 400mm 3 Color LED arrow Traffic Signal Light last 4 seconds, the green light will flash to warn passing vehicles, and more effectively avoid traffic accidents.

400mm arrow traffic signal light_01

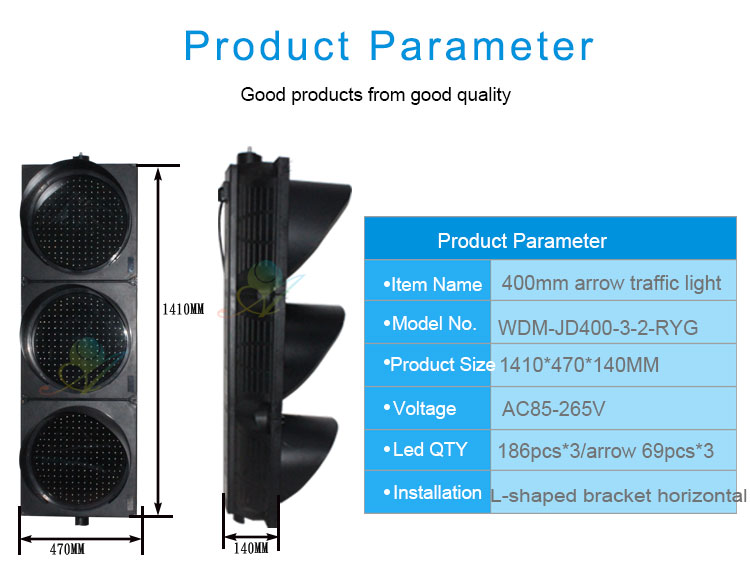

The parameter details of the 400mm 3 Color LED arrow Traffic Signal Light:
Product model: WDM-JD400-3-2-RYG
1. Product size: 1410*470*145mm
2. Number of lamp beads: 204 red and green each, 126 red and green countdown, 195 yellow
3. Luminous diameter: 400MM
4. Lamp beads category: Taiwan Epistar chip lamp beads
5. Red wavelength: 620-625NM
6. Yellow wavelength: 590-595NM
7. Green wavelength: 500-505NM (blue-green) 520-525NM (emerald green)
8. Service life: 100000H
9. Shell material: PC
10. Beam angle: 30°
11. Working temperature: -40℃-65℃
12. Protection level: IP53
13. Working voltage: AC85V-265V, a small amount of DC12V/24V
14. Rated power: red and yellow each 18W green 22W
15. Installation method: horizontal or vertical installation
16. Visual distance: ≥1000M

400mm arrow traffic signal light_02

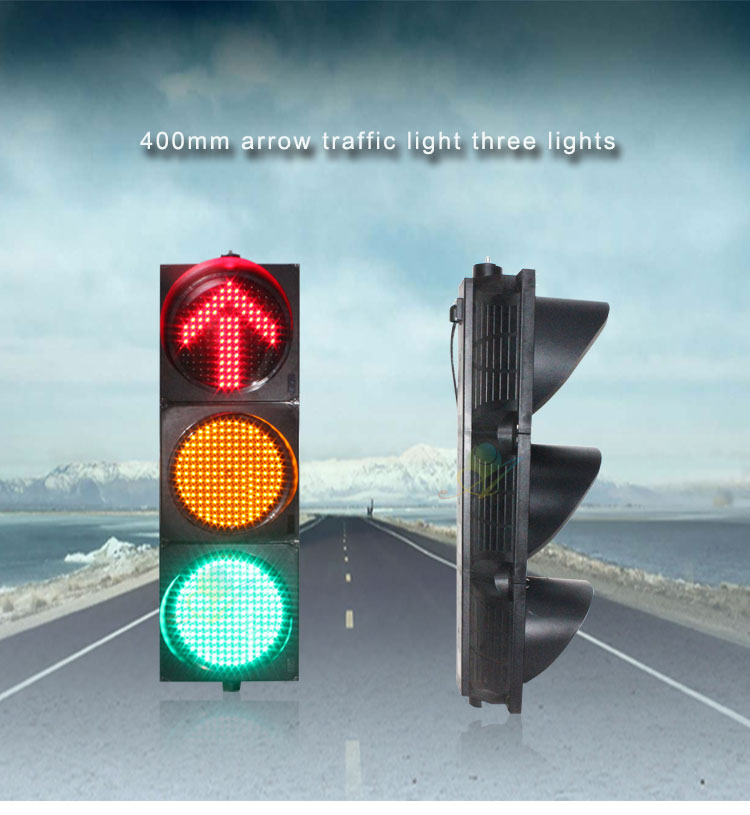

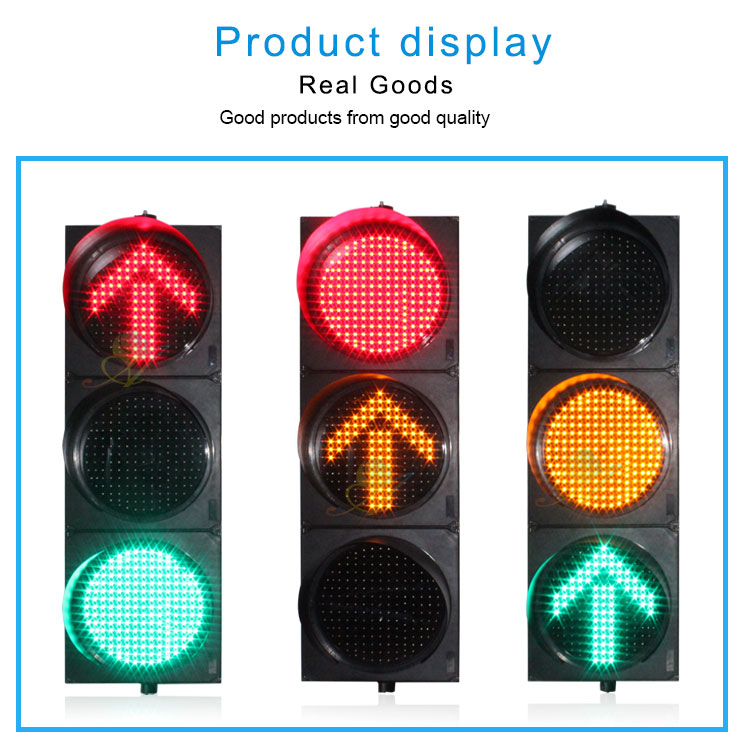

The physical picture of 400mm 3 Color LED arrow Traffic Signal Light:

400mm arrow traffic signal light_03

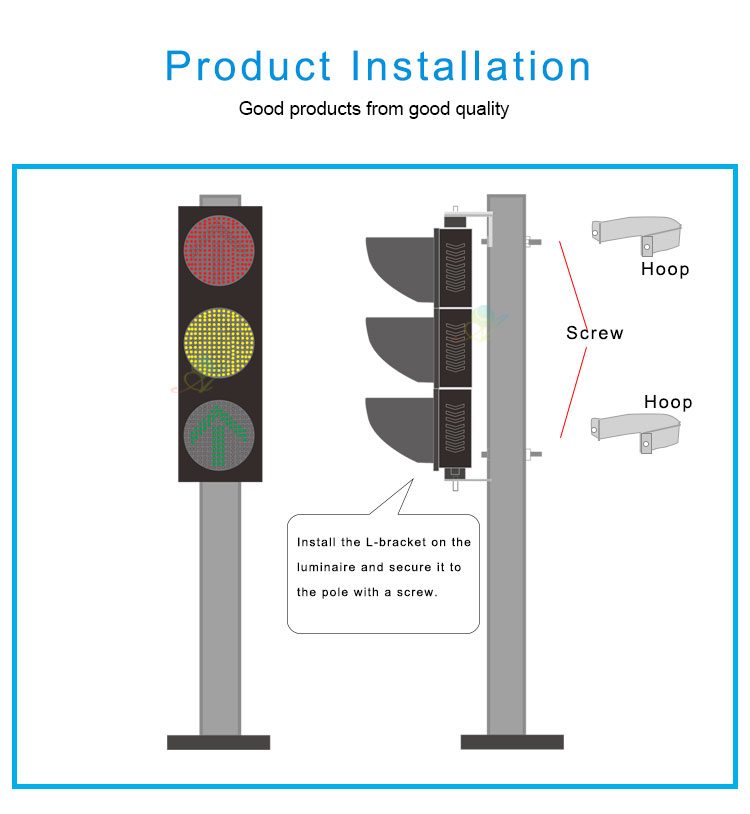

Installation method of 400mm 3 Color LED arrow Traffic Signal Light:

Installation method: horizontal installation
1. There is a screw at both ends, unscrew the nut on the screw,
2. Put the flat end of the "L"-shaped bracket on the screw according to the hole position and slot, and tighten the nut. (as the picture shows)
3. The sun visor is installed on the upper part of the lamp. Fold the three-corner aluminum plate into an arc shape and put it on the lamp. Use screws to align the corresponding holes and tighten.
4. Punch 2 holes on the signal light pole, punch holes according to the hole position of the signal L bracket, pass a suitable screw through the light pole, and put the L-shaped bracket on the screw and fix it with a nut. (as the picture shows)
Installation method: erect installation
Vertical installation is the same as horizontal installation, just put it upright,
Pay attention to 2 points,
1. The sun visor is on the upper part of the lamp
2. The outlet hole faces downwards (as shown in the picture)
400mm arrow traffic signal light_07

Wiring mode of 400mm 3 Color LED arrow Traffic Signal Light:

1. Connect to AC220V:
The black line is the common zero line;
The red line is the red light line;
The green line is the green light line;
The yellow line is the yellow light line;

400mm arrow traffic signal light_05

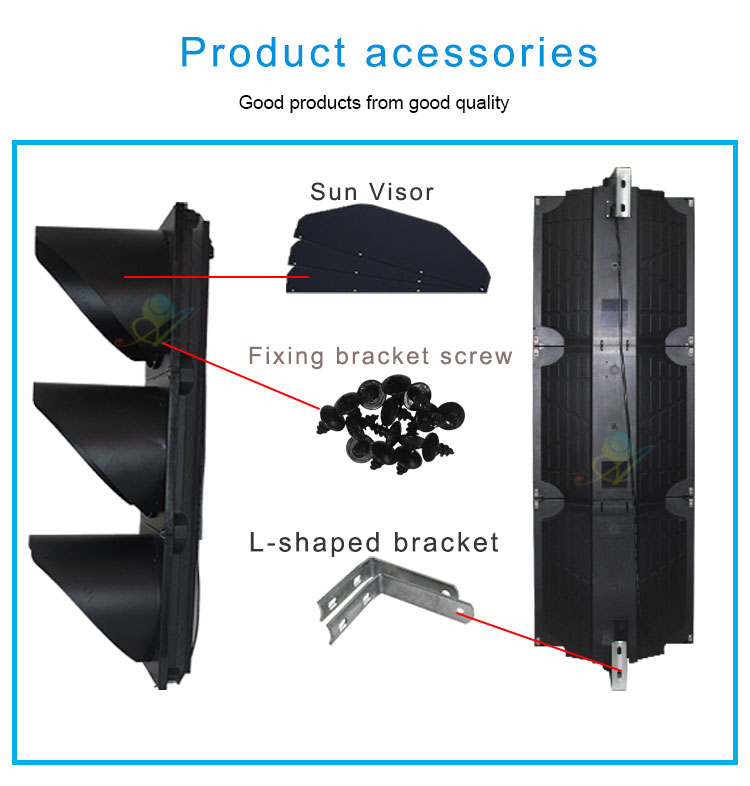

Accessories description of 400mm 3 Color LED arrow Traffic Signal Light:

(1) Lamps: 1
(2) Instructions: 1 copy
(3) Certificate of conformity: 1 copy
(4) L-shaped bracket: 2
(5) Sun visor: 3
(6) M4 screws: 16

(7) Decorative border: 1 set

400mm arrow traffic signal light_06

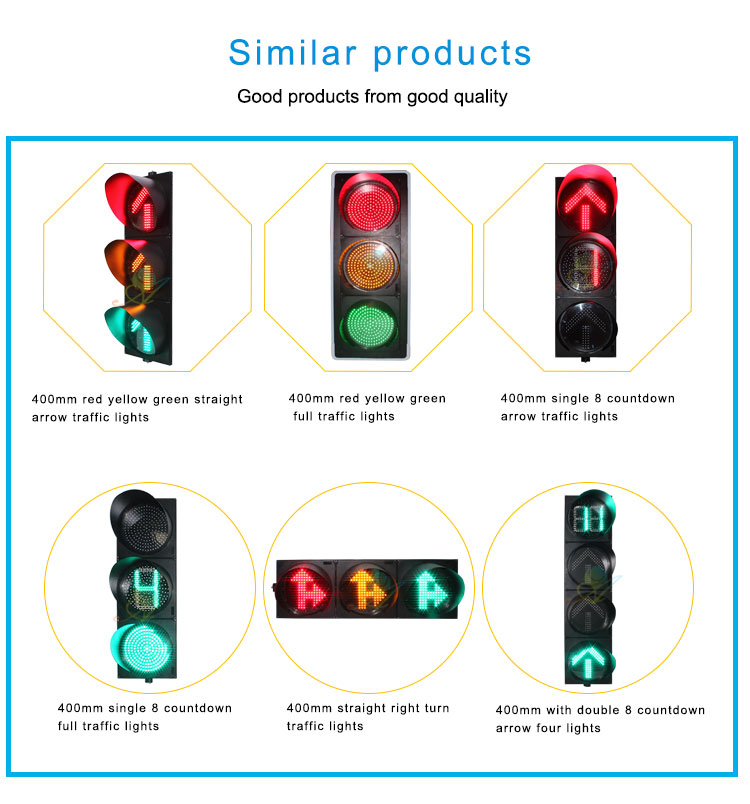

In addition to the 400mm 3 Color LED arrow Traffic Signal Light, We also produces other types of traffic lights
