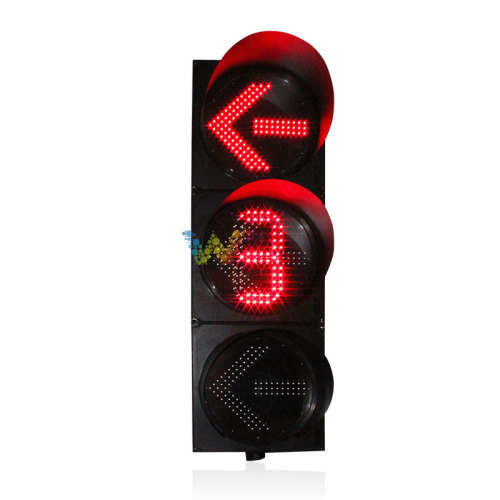

400MM direction countdown timer traffic lights

400MM direction countdown timer traffic lights
1. Basic parameters of the 400MM direction countdown timer traffic lights:
Product model: WDM-FX400(8)-3-RYG
1. Product size: 1410*470*140MM
2. Lamp bead color: red yellow green
3. Lamp beads category: Taiwan Epistar chip lamp beads
4. Luminous diameter: 400MM
5. Number of lamp beads: 99 for red and green
6. Red wavelength: 620-625NM
7. Green wavelength: 500-505NM (blue-green)
8. Installation method: horizontal or vertical
9. Shell material: PC
10. Working voltage: AC85V-265V a small amount of DC12V/24V
11. Working temperature: -40℃~65℃
12. Protection level: IP53
13. Light angle: 30°
14. Visible distance: ≥1000M
15. Service life: 100000H
16. Rated power: 8W each for red and green

400MM direction countdown timer traffic lights
1. 400MM direction countdown 3 lights traffic lights parameter list:
Second, 400MM direction countdown 3 lights traffic light working principle:
The principle of the 400MM direction countdown 3 lights traffic lights is to control them according to certain control procedures, implement time isolation on the lighting time, and display the red, yellow and green lights at the intersections to cycle and direct the traffic on the left lane Traffic, implementing isolation in time to achieve traffic control. Both the red and green lights will show a countdown, and the yellow light will be on for about 3-5 seconds.

Three, 400MM direction countdown timer traffic lights:
1. Green energy, economical and environmental protection, no harmful substances, no emission of pollutants.
2. The LED adopts Taiwan Epistar chips, with a service life of ≥100000 hours, high brightness, unique optical system, uniform chromaticity, good warning effect, and slow light attenuation.
3. The protective layer of the shell and the connecting parts has uniform color, no scratches, no cracks, no exposed substrate and other defects, and its physical and chemical performance indicators meet the requirements of relevant national and industry standards;
4. The front and back of the shell are designed with a combination of snap fasteners, which is convenient for opening the lamp for maintenance and repair;

5. Low power consumption, large viewing angle, super high brightness, long viewing distance, long working time.
6. Sturdy and durable. Stable and reliable, high protection level. Impact resistance, aging resistance, corrosion resistance. waterproof. Easy to install.
7. Comply with GB/14887-2003 and relevant international standards
8. Product warranty ≥ 2 years;
9. Beautiful appearance;

Fourth, 400MM direction countdown 3 lights traffic lights installation instructions:
1. There is a screw on both ends, unscrew the nut above the screw,
2. Put the flat end of the "L" type bracket on the screw according to the hole position and the slot,
3. The sun visor is installed on the upper part of the lamp. Fold the 3-corner aluminum plate into a circular arc shape, put it on the lamp, and tighten it with the screw to the corresponding hole position.
4. Make two holes on the signal light pole, drill holes according to the signal L-bracket position, use a suitable screw to pass through the light pole, and put the L-shaped bracket on the screw and fix it with the nut.

In addition to the 3 countdown traffic lights in the 400MM direction, we also produces other traffic lights:
1. Traffic lights at crossroads
2. Integrated traffic lights
3. Mobile traffic lights
4. Solar traffic lights, etc.

Application for the 400MM direction countdown timer traffic lights:

in addition for the 400MM direction countdown timer traffic lights,we also do other type led traffic signal light:

Solar Traffic Light Blinker
Traffic Light Timers
Red Green Countdown Timer
Traffic Light Countdown
Traffic Signal Countdown Timer
Solar Traffic Light
