LED Arrow 3 Color Traffic Cross Signal Light

Features of the LED Arrow 3 Color Traffic Cross Signal Light:
1. The LED Arrow 3 Color Traffic Cross Signal Light use Taiwan Epistar chip lamp beads, high brightness, high refresh rate, and long service life.
2. The LED Arrow 3 Color Traffic Cross Signal Light are designed with outlet holes on the back, which is not only convenient for outlet, but also has a good waterproof effect.
3. The sunshade of the LED Arrow 3 Color Traffic Cross Signal Light is made of PC material, which has a good waterproof and dustproof effect, and is easy to install.
4. Each lamp of the LED Arrow 3 Color Traffic Cross Signal Light and the lamp are designed with a snap button, which is convenient for product inspection and maintenance.

The parameter details of the LED Arrow 3 Color Traffic Cross Signal Light:
Product model: WDM-JD300-3-RYG
1. Product size: 1050*350*110mm (without decorative edges)
2. Number of lamp beads: 60 red arrows*2, 60 green arrows
3. Lamp bead color: red and green
4. Luminous diameter: 300MM
5. Lamp beads category: Taiwan Epistar chip lamp beads
6. Red wavelength: 620-625NM
7. Green wavelength: 500-505NM (blue-green) 520-525NM (emerald green)
8. Service life: 100000H
9. Shell material: PC
10. Beam angle: 30°
11. Working temperature: -40℃-65℃
12. Protection level: IP53
13. Working voltage: AC85V-265V, a small amount of DC12V/24V
14. Rated power: 18W each for red and yellow, 22W for green
15. Installation method: horizontal installation
16. Visual distance: ≥1000M

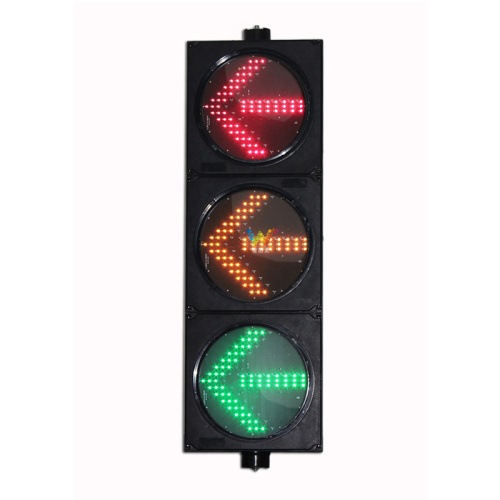

The physical picture of the LED Arrow 3 Color Traffic Cross Signal Light:

The wiring method of LED Arrow 3 Color Traffic Cross Signal Light:
1. Connect to AC220V:
The black line is the common zero line;
The red line is the red light line;
The green line is the green light line;
The yellow line is the yellow light line;
3 light wiring 12V (iron shell)
