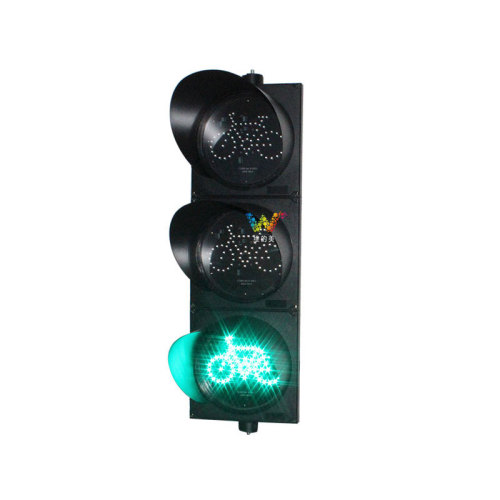

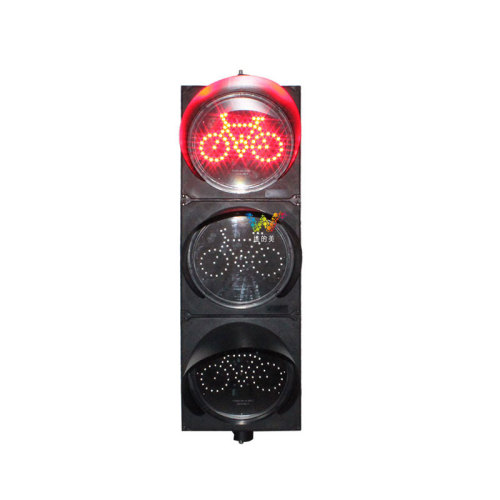

12 inch 300mm LED bicycle signal traffic light
12 inch LED traffic signal road safety bicycle traffic light
The Bicycle 300mm LED Traffic Signal Light is made of PC material, which has better waterproof and dustproof effects and simple installation.
12 inch 300mm LED bicycle signal traffic light

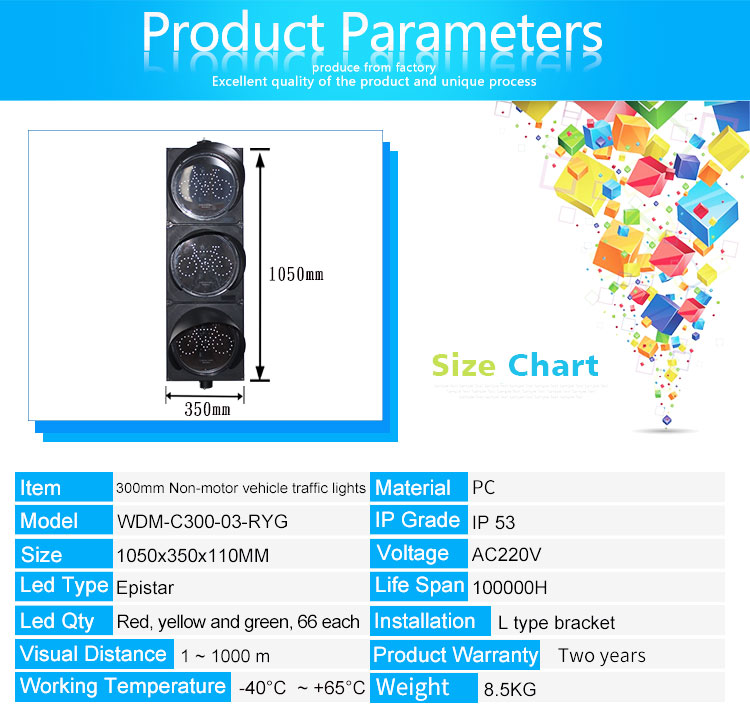

Name:12 inch LED traffic signal road safety bicycle traffic light
Product size:1350*350*145mm
Material :PC
Lamp diameter:300mm
LED luminous :RED :620-630nm ,green :505-510nm,yellow:590-594nm
Wave length:red /yellow:4000-5000mcd , green : 8000-10000mcd
Life span:3-5 years
NET Weight:10KG
visual angle:30 °C
Visual distance:1000m
Warranty :2years
Working temperature:-40℃--+50℃
LED type:Taiwan Epistar

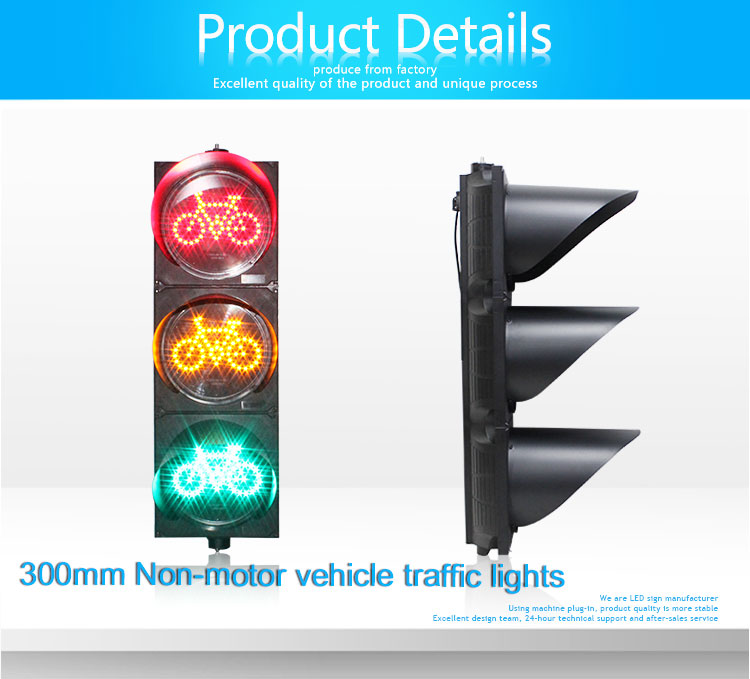

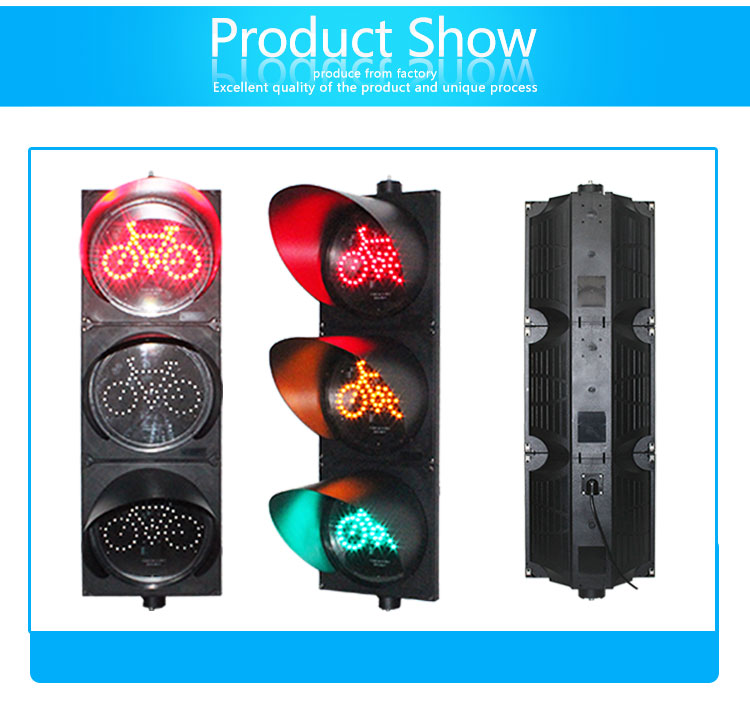

The characteristics of the 12 inch 300mm LED bicycle signal traffic light:
1. The Bicycle 300mm LED Traffic Signal Light use Taiwan wafer chip chip beads, high brightness, high refresh rate, long service life.

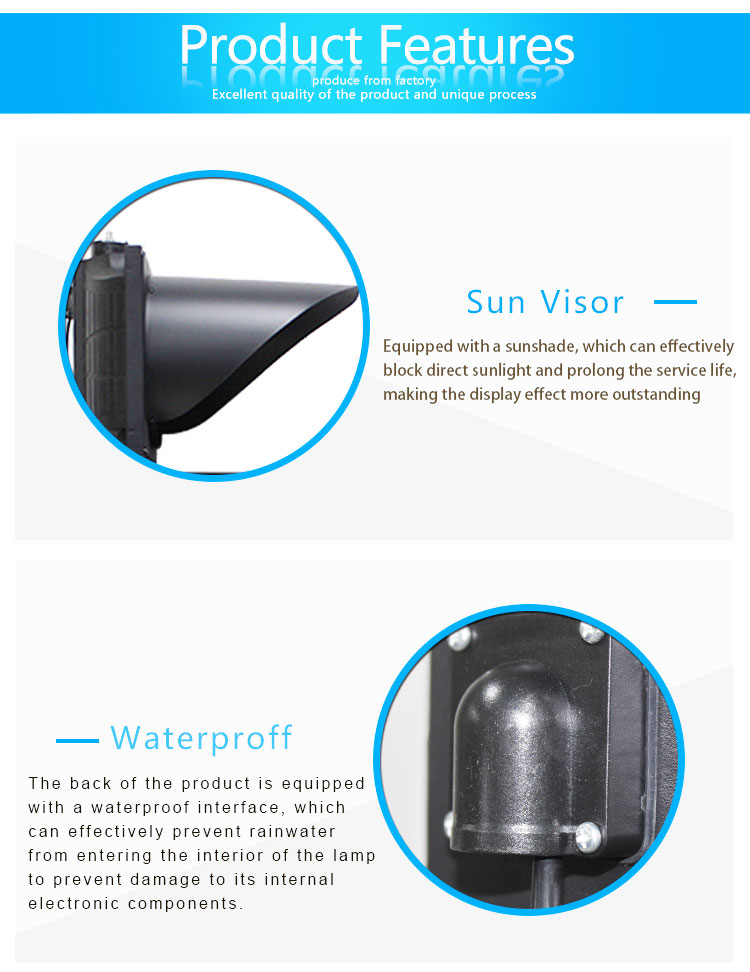

2. The Bicycle 300mm LED Traffic Signal Light are designed with cable outlets on the back, which is not only convenient for wiring but also has a good waterproof effect.
3. The sunshade of The Bicycle 300mm LED Traffic Signal Light is made of PC material, which has better waterproof and dustproof effects and simple installation.
4. Each lamp and lamp of The Bicycle 300mm LED Traffic Signal Light adopts a snap-in design, which facilitates product inspection and maintenance.
The 12 inch 300mm LED bicycle signal traffic light installation method:
Installation: horizontal installation
1. There is a screw at both ends. Unscrew the nut on the screw.
2. Put the flat end of the "L" bracket on the screw according to the hole position and the card slot, and tighten the nut. 3. The visor is installed on the upper part of the lamp. Fold the 3-corner aluminum plate into a circular arc shape, put it on the lamp, and tighten the screws to the corresponding holes.
4. Make 2 holes on the signal lamp pole, punch holes according to the position of the L bracket of the signal, use a suitable screw to penetrate the lamp pole, and put the L-shaped bracket on the screw and fix it with the nut.
Installation method: vertical installation, vertical installation and horizontal installation, the same steps, just stand up, pay attention to 2 points,
1. The sun hat is on the upper part of the light
2.The outlet hole is facing down

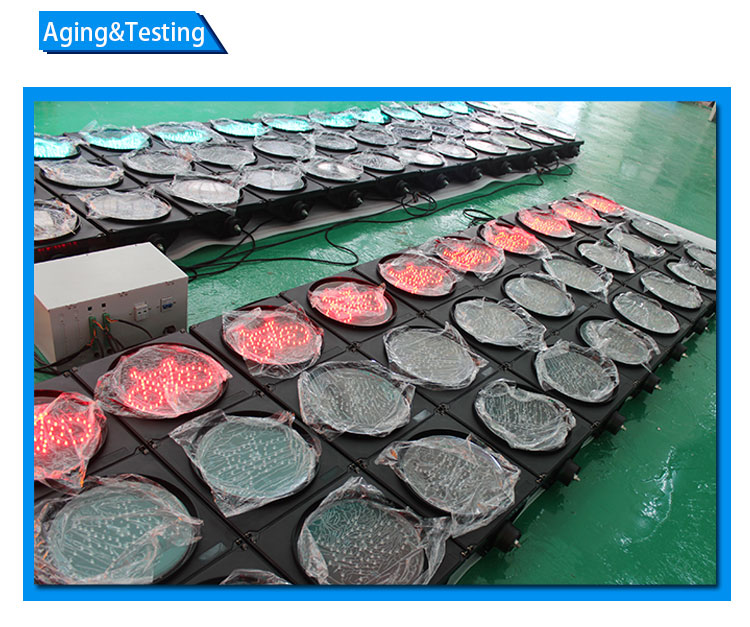

Aging of The 12 inch 300mm LED bicycle signal traffic light:
