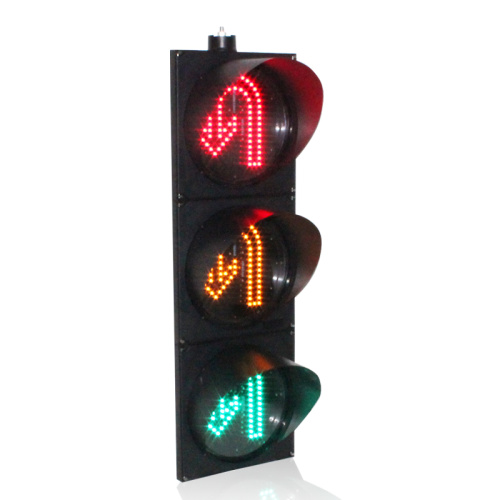

Red Yellow Green 300mm U-turn traffic light
- Payment Type:
- T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- EXW
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | guangdong |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | stock |
| Payment Type: | T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | EXW |
| Certificate: | CE/ROHS |
| HS Code: | 8530800000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
The characteristics of the Red Yellow Green 300mm U-turn traffic light:
1.300mm red, yellow, and green bicycle tri-lamps use Taiwan Epistar chip beads, high brightness, high refresh rate, and long service life.
2.300mm red, yellow and green bicycle three lights are designed with outlet holes on the back, which not only facilitates the outlet, but also has a good waterproof effect.
3.The sunshade cover of the three-type red, yellow, and green bicycle three lights is made of PC material, which has a good waterproof and dustproof effect and is easy to install.
Each of the lights of the
4.300mm red, yellow, and green bicycle lights and the lights are designed with a snap button, which facilitates the inspection and maintenance of the product.
Installation method of Red Yellow Green 300mm U-turn traffic light:
Installation method: horizontal installation1. There is a screw on both ends, unscrew the nut above the screw,
2. Put the flat end of the "L" type bracket on the screw according to the hole position and the clamping slot, and tighten the nut. (as the picture shows)
3. The sun visor is installed on the upper part of the lamp. Fold the 3-corner aluminum plate into a circular arc shape, put it on the lamp, and tighten it with the screw to the corresponding hole position.
4. Make two holes on the signal light rod, drill holes according to the signal L-bracket holes, use a suitable screw to pass through the light rod, and put the L-shaped bracket on the screw and fix it with the nut. (as the picture shows)
Installation method: vertical installation
The steps of vertical installation and horizontal installation are just the same.
Note 2 points,
1. The visor is on the upper part of the lamp
2. The outlet hole is facing down (as shown in the picture)
Product model: WDM-DT300-3-RYG
1. Product size: 1050*350*110mm (without decorative edge)
2. Number of lamp beads: 75 pieces each in red, yellow and green
3. Luminous diameter: 300MM
4. Lamp beads category: Taiwan Epistar chip lamp beads
5. Red wavelength: 620-625NM
6. Yellow wavelength: 590-595NM
7. Green wavelength: 500-505NM (blue-green) 520-525NM (emerald green)
8. Service life: 100000H
9. Shell material: PC
10. Light angle: 30°
11. Working temperature: -40℃-65℃
12. Protection level: IP53
13. Working voltage: AC85V-265V a small amount of DC12V/24V
14. Rated power: red and yellow 18W green 22W
15. Installation method: horizontal or vertical
16. Visible distance: ≥1000M
Red Yellow Green 300mm U-turn traffic light wiring method:
1. Connect to AC220V:The black line is the common zero line;
The red line is the red light fire line;
The green line is the green light fire line;
The yellow line is the yellow light fire line;
