Product Description

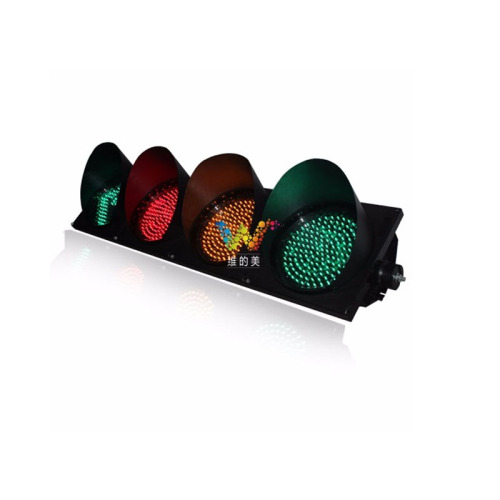

communication arrow guidance vehicle traffic signal lights

Parameter details of communication arrow guidance vehicle traffic signal lights:

Model No.:WDM-JD300-1-GRYG

1. Product size: 1400*350*110MM (without frame)
2. Number of lamp beads: 156 for red, yellow and green and 75 for left arrow
3. Lamp bead category: Taiwan Epistar chip lamp bead
4. Red wavelength: 620-625NM
5. Yellow wavelength: 590-595NM
6. Green wavelength: 520-525NM (emerald green)
7. Shell material: PC
8. Working temperature: -40℃-65℃
9. Protection level: IP53
10. Visible distance: ≥1000M
11. Installation method: horizontal or vertical
12. Communication interface: 485 communication interface
13. Service life: 100000H
14. Working voltage: AC85V-265V a small amount of DC12V/24V

communication traffic light_01

Features of communication arrow guidance vehicle traffic signal lights:

1.communication arrow guidance vehicle traffic signal lights use Taiwan wafer chip beads, high brightness, high refresh rate and long service life.
2.300mm communication type traffic lights are designed with outlet holes on the back, which not only facilitates the outlet, but also has a good waterproof effect.
The sunshade cover of the 3.300 communication type traffic light is made of PC material, which has a good waterproof and dustproof effect and is easy to install.
4.300mm communication type traffic lights use a snap-type design for each lamp and the lamp, which facilitates the inspection and maintenance of the product.
5.300mm communication type traffic lights use 485 communication interface, the communication distance is far.

communication traffic light_02

Installation method of communication arrow guidance vehicle traffic signal lights:

Installation method: horizontal installation
1. There is a screw on both ends, unscrew the nut above the screw,
2. Put the flat end of the "L" type bracket on the screw according to the hole position and the clamping slot, and tighten the nut. (as the picture shows)
3. The sun visor is installed on the upper part of the lamp. Fold the 3-corner aluminum plate into a circular arc shape, put it on the lamp, and tighten it with the screw to the corresponding hole position.
4. Make two holes on the signal light rod, drill holes according to the signal L-bracket holes, use a suitable screw to pass through the light rod, and put the L-shaped bracket on the screw and fix it with the nut. (as the picture shows)
Installation method: vertical installation
The steps of vertical installation and horizontal installation are just the same.
Note 2 points,

1. The visor is on the upper part of the lamp

2. The outlet hole is facing down (as shown in the picture)

communication traffic light_03

Wiring of 300mm communication traffic light:
1. Connect to AC220V:
The black line is the zero line;
The red line is the fire line;
2. RS485 wiring instructions:
1. RJ45 network cable plug
2.T568B line sequence
3. Brown, orange: 485A T/R+
4. Brown white, orange white: 485B T/R-

5. Blue, green, blue-white, green-white: GND

communication traffic light_08

In addition to the communication arrow guidance vehicle traffic signal lights, Shenzhen Vimee Optoelectronics Co., Ltd. also produces the following other types of traffic lights;
100mm teaching traffic lights;
200mm driving school traffic lights;

400mm traffic lights;

Tunnel Indicator Traffic Light
Traffic Fog Light
Solar Warning Light

communication traffic light_09
