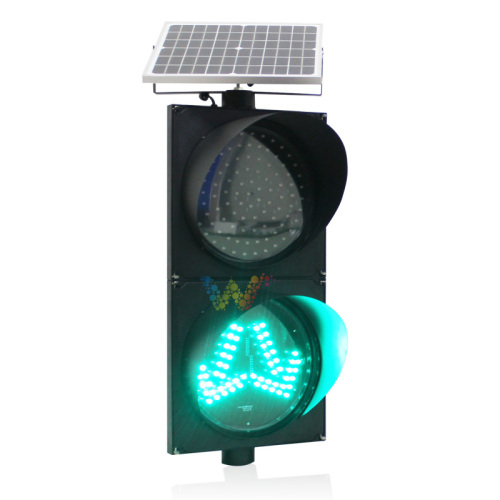

300mm solar power Road Sign traffic light
- Payment Type:
- T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- EXW
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | guangdong |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | stock |
| Payment Type: | T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | EXW |
| Certificate: | CE/ROHS |
| HS Code: | 8530800000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
Product Description
Product Description
Parameter details of 300mm solar power Road Sign traffic light:
Product model: WDM-JDT300-02-YG
1. Product size: 950*350*130MM
2. Number of lamp beads: green 60pcs/yellow 100pcs
3. Luminous diameter: 300MM
4. Lamp beads category: Taiwan Epistar chip lamp beads
5. Green wavelength: 500-505NM
6. Yellow wavelength: 590-595NM
7. Solar panel: 15W 18V
8. Battery: 16AH
9. Service life: 100000H
10. Shell material: PC
11. Working temperature: -40℃-65℃
12. Light angle: 30°
13. Protection grade: IP53
14. Working voltage: DC12V
15. Working mode: flashing
16. Visible distance: ≥600M
1. The 300mm solar power Road Sign traffic light use Taiwan wafer chip beads, high brightness, high refresh rate, and long service life.
2. The 300mm solar power Road Sign traffic light use 15W/18V solar panels, which use solar power to save energy and protect the environment.
3. The 300mm solar power Road Sign traffic light are installed with L-shaped bracket, which is very convenient for assembly.

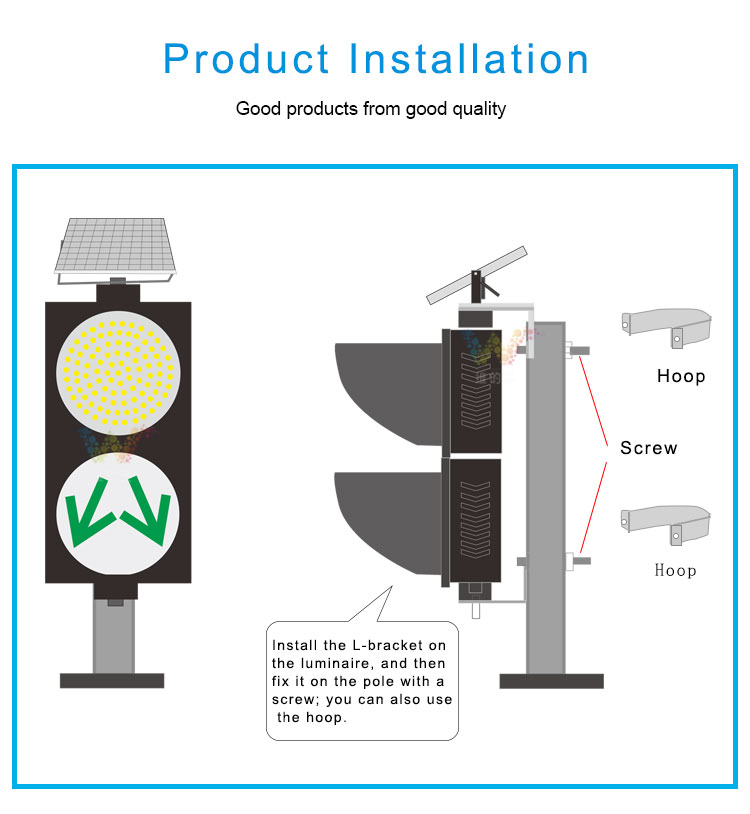

Installation method of 300mm solar power Road Sign traffic light:
1. Installation method of solar panel and L-shaped bracket:
(1) There is a screw on both ends, unscrew the nut above the screw,
(2) Put the flat end of the "L" bracket on the screw according to the hole position and the slot, and then put the bracket of the solar panel into the screw, and then put the gasket and nut, and tighten the nut. Finally, the solar panel butt joint and the lamp butt joint can be docked. (as the picture shows)
(3) The sun visor is installed on the upper part of the lamp. Fold the three-angle aluminum plate into a circular arc shape, put it on the lamp, and tighten it with the screw to the corresponding hole.
(4) Drill two holes on the signal light pole, drill holes according to the signal L-bracket position, use a suitable screw to pass through the light pole, and put the L-shaped bracket on the screw and fix it with the nut.
In addition to the 300mm solar power Road Sign traffic light, We also produces other traffic lights:
125mm Mini Traffic Light
Customized Traffic Signal Light
Solar Guidance Signs
Solar Power Guidance Traffic Road Sign
Solar Led Guidance Sign
Highway Speed Limit Signs
Product model: WDM-JDT300-02-YG
1. Product size: 950*350*130MM
2. Number of lamp beads: green 60pcs/yellow 100pcs
3. Luminous diameter: 300MM
4. Lamp beads category: Taiwan Epistar chip lamp beads
5. Green wavelength: 500-505NM
6. Yellow wavelength: 590-595NM
7. Solar panel: 15W 18V
8. Battery: 16AH
9. Service life: 100000H
10. Shell material: PC
11. Working temperature: -40℃-65℃
12. Light angle: 30°
13. Protection grade: IP53
14. Working voltage: DC12V
15. Working mode: flashing
16. Visible distance: ≥600M
17. Installation method: horizontal or vertical
1. The 300mm solar power Road Sign traffic light use Taiwan wafer chip beads, high brightness, high refresh rate, and long service life.
2. The 300mm solar power Road Sign traffic light use 15W/18V solar panels, which use solar power to save energy and protect the environment.
3. The 300mm solar power Road Sign traffic light are installed with L-shaped bracket, which is very convenient for assembly.
4. 300mm solar power Road Sign traffic light are equipped with remote control, wireless remote control, very convenient to receive.
Installation method of 300mm solar power Road Sign traffic light:
1. Installation method of solar panel and L-shaped bracket:
(1) There is a screw on both ends, unscrew the nut above the screw,
(2) Put the flat end of the "L" bracket on the screw according to the hole position and the slot, and then put the bracket of the solar panel into the screw, and then put the gasket and nut, and tighten the nut. Finally, the solar panel butt joint and the lamp butt joint can be docked. (as the picture shows)
(3) The sun visor is installed on the upper part of the lamp. Fold the three-angle aluminum plate into a circular arc shape, put it on the lamp, and tighten it with the screw to the corresponding hole.
(4) Drill two holes on the signal light pole, drill holes according to the signal L-bracket position, use a suitable screw to pass through the light pole, and put the L-shaped bracket on the screw and fix it with the nut.
In addition to the 300mm solar power Road Sign traffic light, We also produces other traffic lights:
125mm Mini Traffic Light
Customized Traffic Signal Light
Solar Guidance Signs
Solar Power Guidance Traffic Road Sign
Solar Led Guidance Sign
Highway Speed Limit Signs
